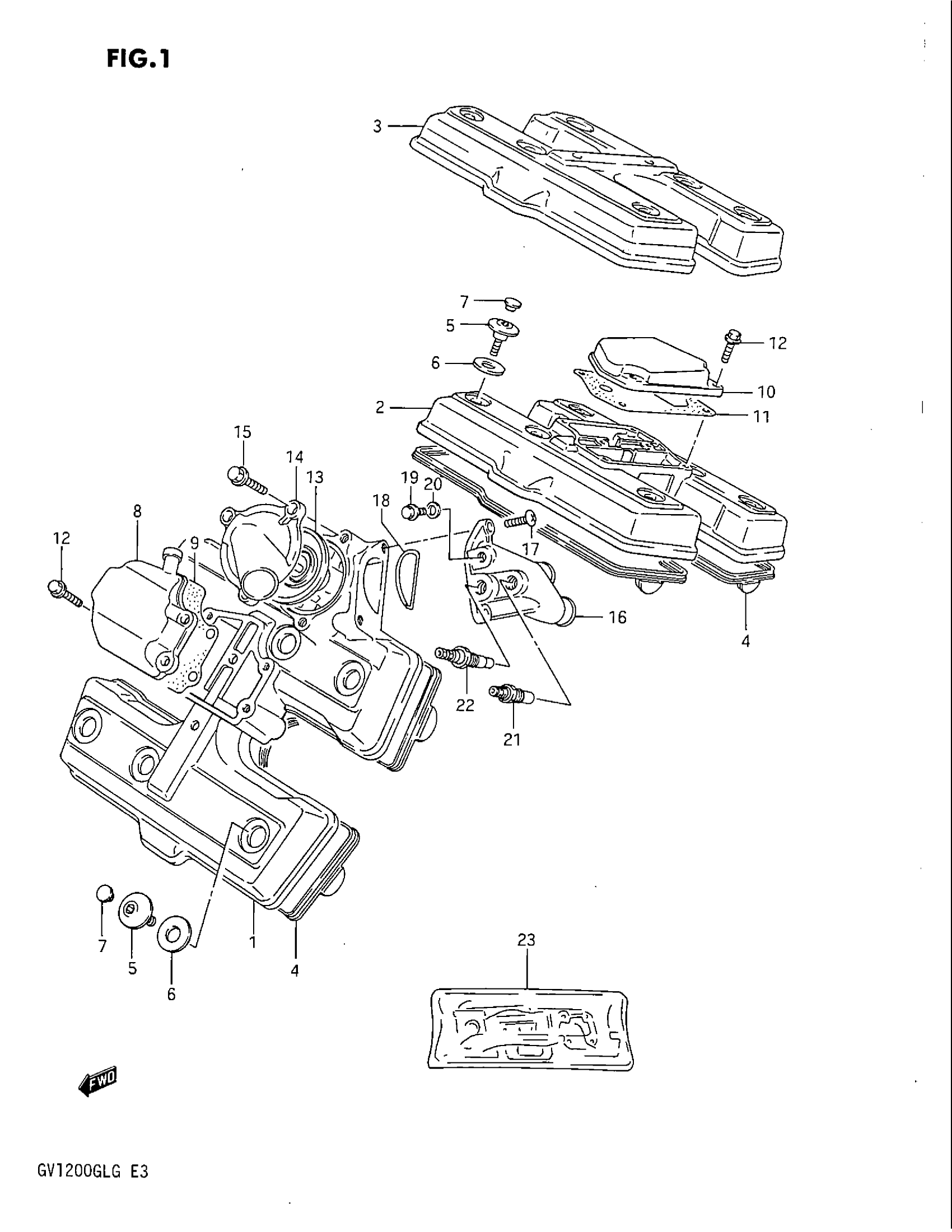

Suzuki GV1200GLF (1986) CYLINDER HEAD COVER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 11171-05A01.

11171-05A02

Unavailable

2

COVER, CYLINDER HEAD, REAR | ~E.NO.104659

11172-05A02

Unavailable

3

COVER, CYLINDER HEAD, REAR | E.NO.104660~

11172-05A10

Unavailable

4

GASKET

11173-05A00

Unavailable

5

BOLT

09106-07001

Unavailable

6

WASHER This part replaces 09161-11006.

09161-11008

$4.49

7

CAP This part replaces 09250-06008.

09250-06016

$1.96

8

COVER, BREATHER, FRONT

11178-05A00

Unavailable

9

GASKET, FRONT

11179-05A00

Unavailable

10

COVER, BREATHER, REAR | ~E.NO.104659

11176-05A01

Unavailable

11

GASKET, REAR | ~E.NO.104659

11177-05A01

Unavailable

12

BOLT | ~E.NO.104659E.NO.104660~ This part replaces 01517-06208.

01550-06207

$2.30

13

THERMOSTAT, WATER

17670-05A01

$71.42

14

COVER, THERMOSTAT

17661-05A00

Unavailable

15

BOLT This part replaces 01517-06205.

01550-0620A

$1.97

16

CONNECTOR, INLET | ~E.NO.103588

17662-05A00

Unavailable

16

CONNECTOR, INLET | E.NO.103589~

17662-05A01

Unavailable

17

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

18

O RING

17665-05A00

Unavailable

19

UNION | ~E.NO.103588 This part replaces 09360-06015.

09360-06015-XC0

Unavailable

20

GASKET | ~E.NO.103588

09168-06004

$1.49

21

SWITCH, RADIATOR FAN (PT 1/8) | OTHER THAN CALIFORNIA~E.NO.103588

17680-05A01

Unavailable

21

SWITCH, RADIATOR FAN (PT 3/8) | OTHER THAN CALIFORNIAE.NO.103589~

17680-05A20

Unavailable

21

(CA)SWITCH, RADIATOR FAN | CALIFORNIA ONLY~E.NO.103588

17680-05A10

Unavailable

21

(CA)SWITCH, RADIATORFAN | CALIFORNIA ONLYE.NO.103589~

17680-05A30

Unavailable

22

GAUGE ASSY, WATER TEMP

34850-05A10

Unavailable

23

NO DESCRIPTION AVAILABLE | OPT,MODEL F/F2 ~E.NO.103545 This part replaces 11400-05880.

11400-05885

Unavailable

23

NO DESCRIPTION AVAILABLE | OPT,MODEL F/F2 E.NO.103546~ This part replaces 11400-05882.

11400-05885

Unavailable

23

NO DESCRIPTION AVAILABLE | OPT,MODEL G This part replaces 11400-05883.

11400-05885

Unavailable
