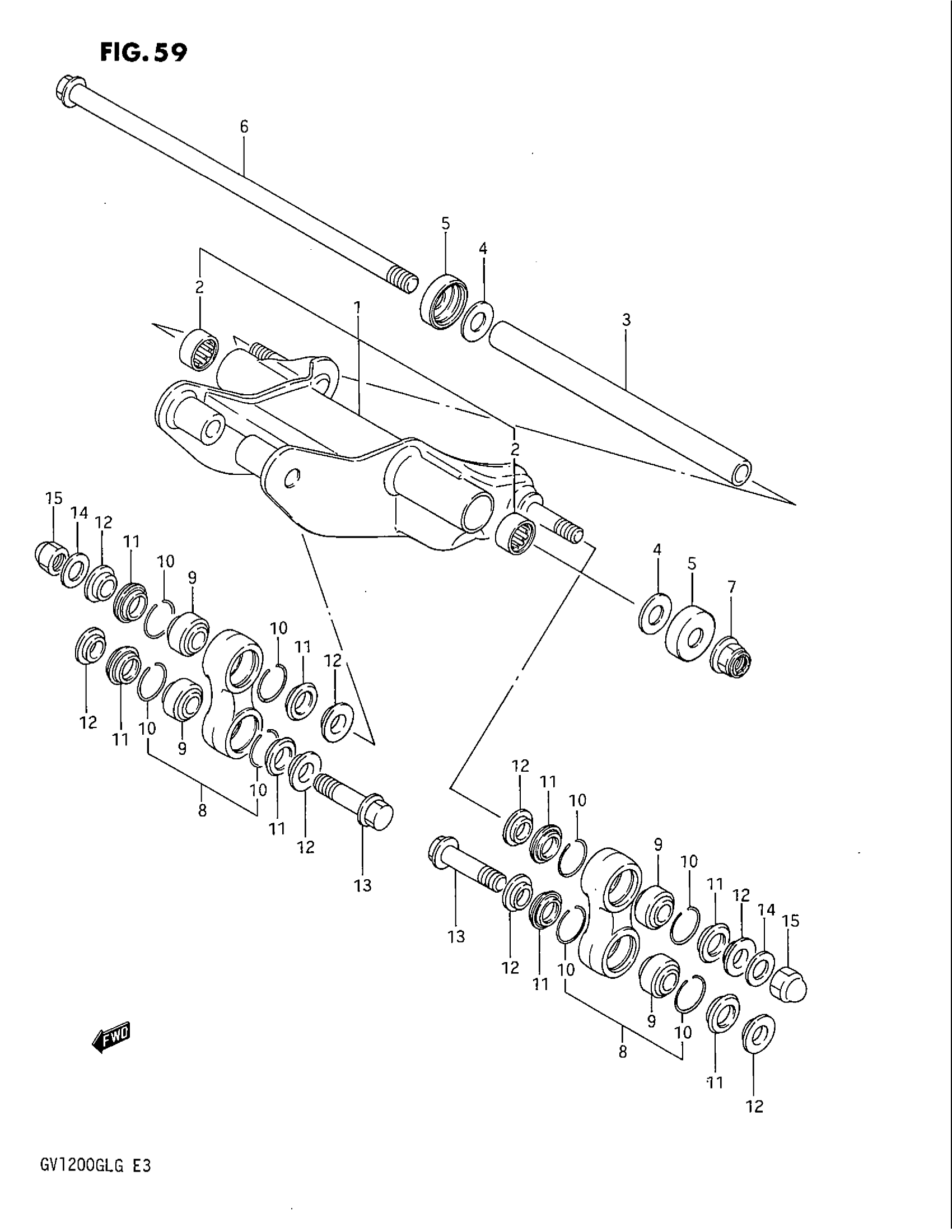

Suzuki GV1200GLF (1986) CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, CUSHION | Includes Item(s) 2

62600-05841

Unavailable

2

.BEARING (17X24X25) This part replaces 09263-17020.

09263-17053

$21.66

3

SPACER

62623-05A00

Unavailable

4

WASHER

08211-12281

$2.53

5

COVER This part replaces 61262-41500.

61262-41501

Unavailable

6

SHAFT

62621-05A00

Unavailable

7

NUT This part replaces 08319-31125.

08319-3112B

$5.00

8

ROD SET, CUSHION | Includes Item(s) 9 - 10

62600-05850

Unavailable

9

BEARING

09269-12004

Unavailable

10

RING, STOPPER REAR This part replaces 62657-05A00.

62277-27C20

$3.92

11

DUST SEAL

62647-05A00

$3.30

12

SPACER

62316-05A01

$10.54

13

BOLT, LOWER

62658-05A00

Unavailable

14

WASHER

08322-11125

Unavailable

15

NUT, UPPER

09145-12003

Unavailable
