CRANKSHAFT

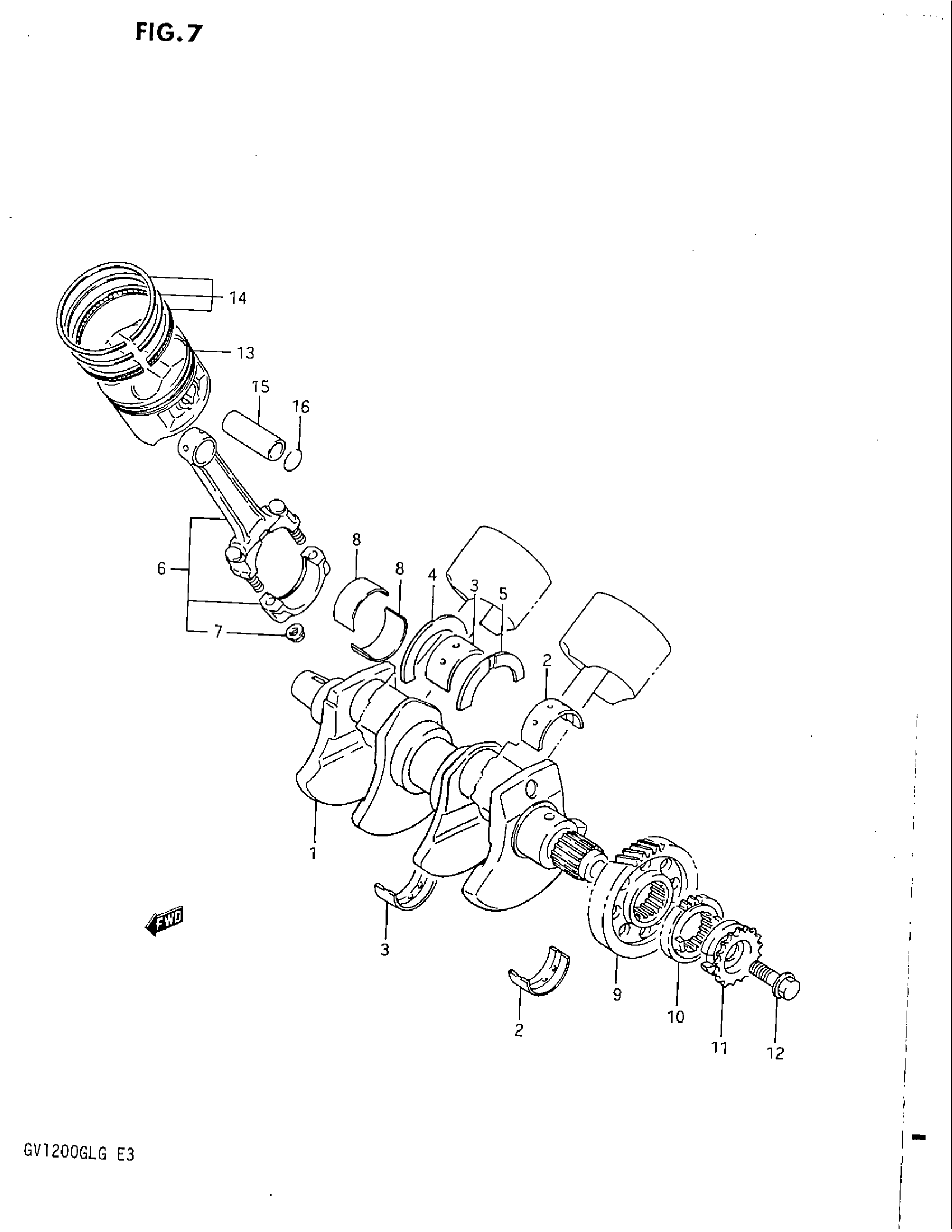

Suzuki GV1200GLF (1986) CRANKSHAFT Diagram
#
1
CRANKSHAFT
12220-05A01
Unavailable
2
BEARING, CRANK, R,L (GREEN)
12229-05A00-0A0
Unavailable
2
BEARING, CRANK, R,L (BLACK)
12229-05A00-0B0
Unavailable
2
BEARING, CRANK, R,L (BROWN)
12229-05A00-0C0
Unavailable
2
BEARING. CRANK, R,L (YELLOW)
12229-05A00-0D0
Unavailable
3
BEARING, CRANK, MDL (GREEN)
12229-05A10-0A0
Unavailable
3
BEARING, CRANK, MDL (BLACK)
12229-05A10-0B0
Unavailable
3
BEARING, CRANK, MDL (BROWN)
12229-05A10-0C0
Unavailable
3
BEARING, CRANK, MDL (YELLOW)
12229-05A10-0D0
Unavailable
4
BEARING, THRUST, R (GREEN)
12228-05A00-0D0
Unavailable
5
BEARING, THRUST, L (RED)
12228-05A00-0A0
Unavailable
5
BEARING, THRUST, L (BLACK)
12228-05A00-0B0
Unavailable
5
BEARING, THRUST, L (BLUE)
12228-05A00-0C0
Unavailable
5
BEARING, THRUST, L (GREEN)
12228-05A00-0D0
Unavailable
5
BEARING, THRUST, L (YELLOW)
12228-05A00-0E0
Unavailable
5
BEARING, THRUST, L (WHITE)
12228-05A00-0F0
Unavailable
6
NO DESCRIPTION AVAILABLE | Includes Item(s) 7 This part replaces 12160-05A04.
12160-05A05
Unavailable
7
NUT
09159-10051
Unavailable
8
BEARING, CRANK PIN (GREEN)
12164-05A01-0A0
Unavailable
8
NO DESCRIPTION AVAILABLE This part replaces 12164-05A01-0B0.
12164-30E00-0B0
Unavailable
8
NO DESCRIPTION AVAILABLE This part replaces 12164-05A01-0C0.
12164-30E00-0C0
Unavailable
8
BEARING, CRANK PIN (YELLOW)
12164-05A01-0D0
Unavailable
9
NO DESCRIPTION AVAILABLE This part replaces 21111-05A01.
21111-05A02
Unavailable
10
SPROCKET, CHAIN DRIVE IDLER
12744-05A00
Unavailable
11
SPROCKET, WATER PUMP DRIVE
17531-05A01
Unavailable
12
BOLT
09100-12030
Unavailable
13
PISTON (STD)
12111-05A02
Unavailable
13
PISTON (OS:0.5) | OPT
12111-05A02-050
Unavailable
13
PISTON (OS:1.0) | OPT
12111-05A02-100
Unavailable
14
RING SET, PISTON (STD)
12140-05A01
Unavailable
14
RING SET, PISTON (OS:0.5) | OPT
12140-05A01-050
Unavailable
14
RING SET, PISTON (OS:1.0) | OPT
12140-05A01-100
Unavailable
