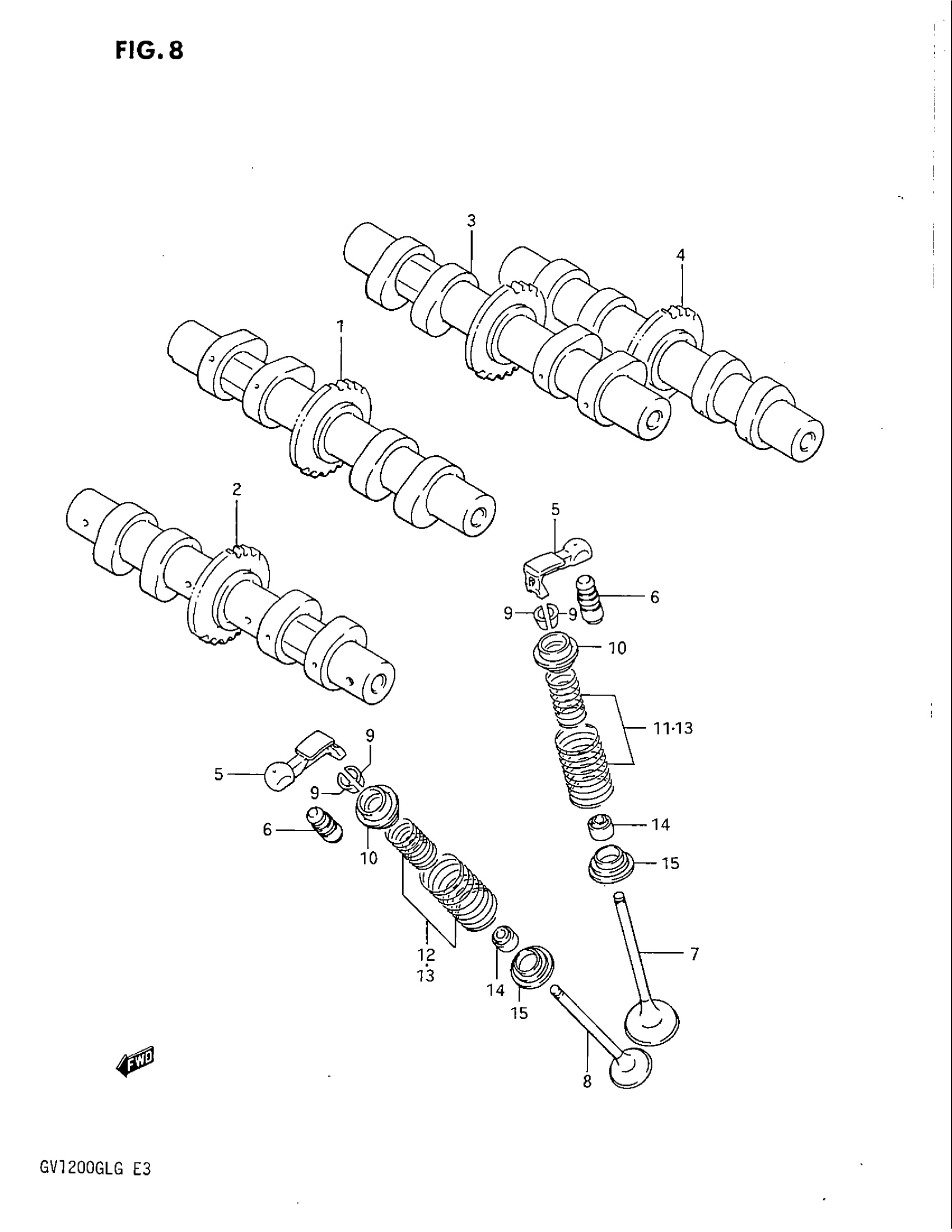

Suzuki GV1200GLF (1986) CAMSHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, FRONT, 1N

12710-05A01

Unavailable

2

CAM SHAFT, FRONT, EX

12720-05A01

Unavailable

3

CAM SHAFT, REAR, 1N | ~E.NO.102567

12712-05A01

Unavailable

3

CAM SHAFT, REAR, IN | E.NO.102568~

12712-05A02

Unavailable

4

CAM SHAFT, REAR, EX

12722-05A01

Unavailable

5

ARM, VALVE ROCKER

12841-05A01

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 12860-05A00.

12860-05A01

Unavailable

7

VALVE, INTAKE

12911-05A00

Unavailable

8

VALVE, EXHAUST

12912-05A00

Unavailable

9

COTTER, VALVE

12932-24400

$1.94

10

RETAINER, SPRING

12931-05A00

Unavailable

11

SPRING SET, VALVE IN | ~E.NO.102567

12920-07A10

Unavailable

12

SPRING SET, VALVE EX | ~E.NO.102567

12920-07A00

Unavailable

13

SPRING SET, VALVE | E.NO.102568~

12920-07A00

Unavailable

14

OIL SEAL (5.5X11X8.2) This part replaces 09289-05003.

09289-05015

$6.70

15

SEAT, SPRING This part replaces 12933-33200.

12933-33201

$6.05
