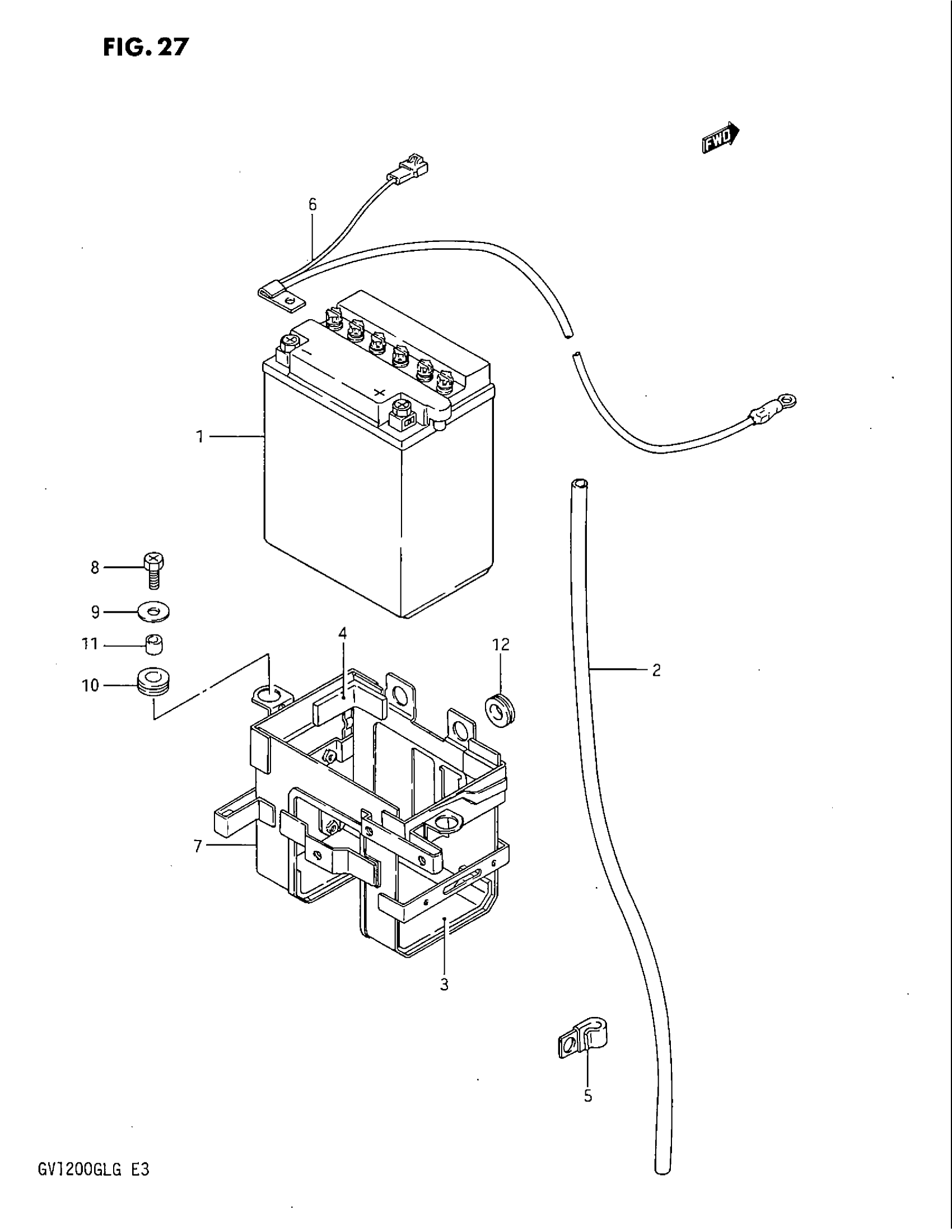

Suzuki GV1200GLF (1986) BATTERY Diagram

#

Description
Price

1

BATTERY ASSY (12V,14AH) This part replaces 33610-05A30.

33610-05A10

$95.65

2

HOSE, BATTERY EXHAUST (L:650)

33680-05A00

Unavailable

3

CUSHION | CUT AS REQUIRED PROFILE

33651-37000

$4.48

4

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.48

5

CLAMP This part replaces 09403-09303.

09403-09003

$2.20

6

NO DESCRIPTION AVAILABLE This part replaces 33860-05A00.

33860-05A01

Unavailable

7

HOLDER, BATTERY

41540-05A00

Unavailable

8

SCREW

09128-06039

Unavailable

9

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.91

10

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

11

SPACER (6.1X9X7.5)

09180-06038

$1.98

12

CUSHION

09308-10013

Unavailable
