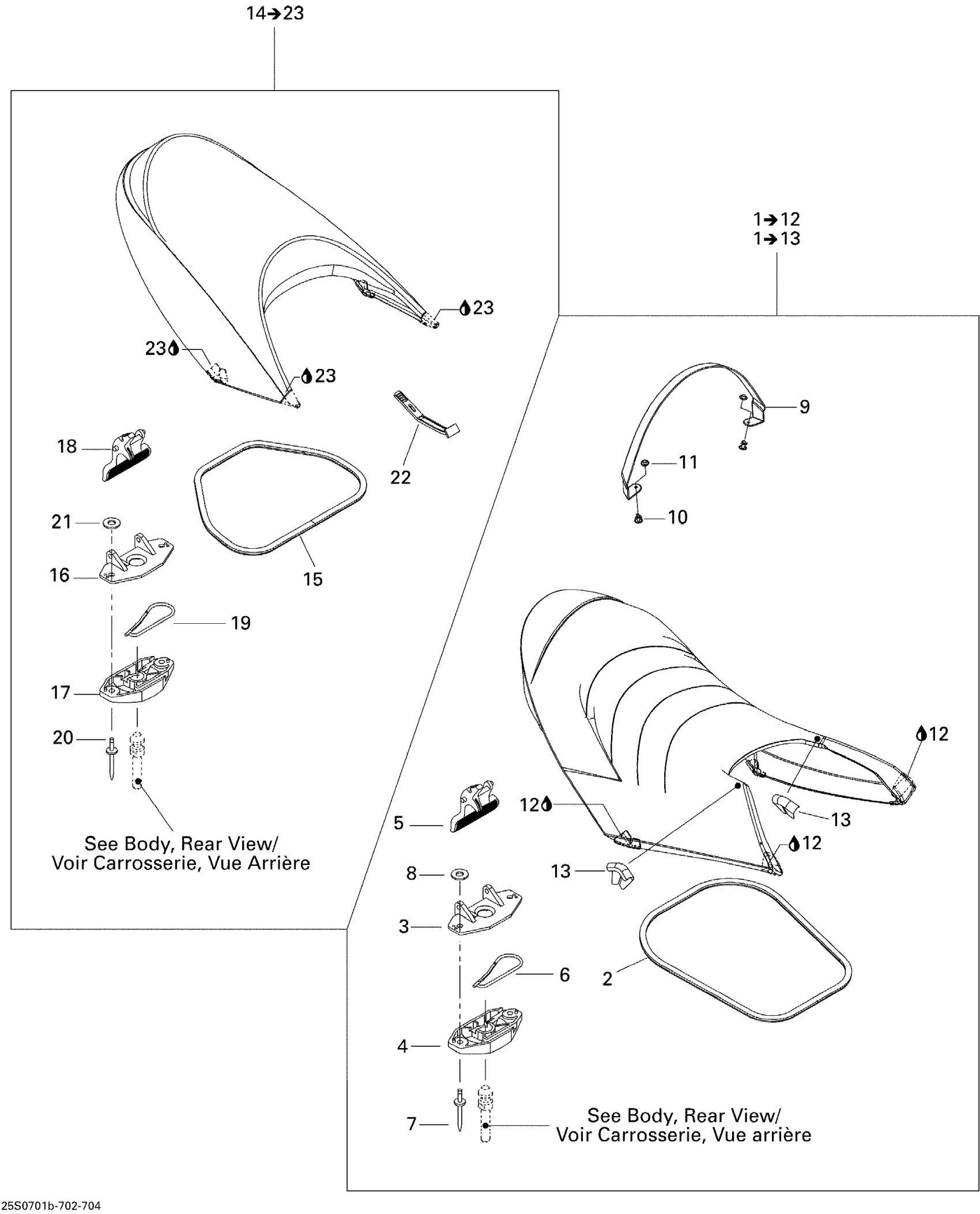

Sea-doo GTX Wake, 2007 Seat Diagram

#

Description
Price

1

FRONT SEAT ASS'Y - Call your local BRP dealership | Includes 1 to 9

269001432

Unavailable

2

Was 293200062 Seal

219704366

$61.72

3

Latch Ass'y

269700109

$20.12

4

Latch Ass'y

269700109

$20.12

5

Latch Ass'y

269700109

$20.12

6

Latch Spring

269700017

$7.27

7

Rivet 1/4"

293150151

$6.46

8

Stainless Flat Washer M6

234061600

$0.25

9

SEAT STRAP - Call your local BRP dealership

269001391

Unavailable

10

Rivet | Model-T3

293150067

$2.29

11

Grommet

293720067

$9.19

12

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

REAR SEAT ASS'Y - Call your local BRP dealership | Includes 10 to 16

269001434

Unavailable

15

Was 293200062 Seal

219704366

$61.72

16

Latch Ass'y

269700109

$20.12

17

Latch Ass'y

269700109

$20.12

18

Latch Ass'y

269700109

$20.12

19

Latch Spring

269700017

$7.27

20

Rivet 1/4"

293150151

$6.46

21

Stainless Flat Washer M6

234061600

$0.25

22

Strap

269502417

$14.27

23

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable
