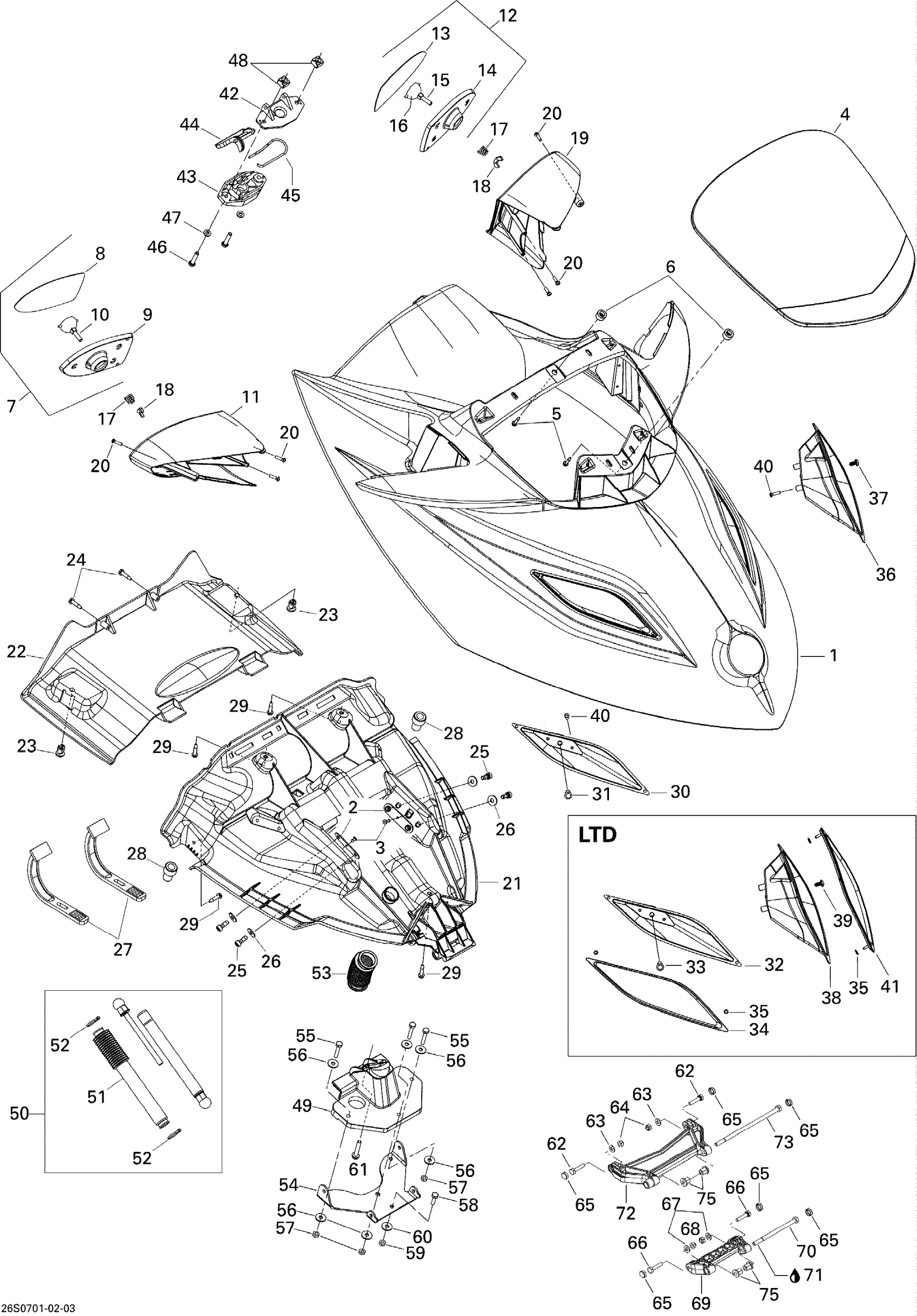

Sea-doo GTX Wake, 2007 Front Storage Compartment Diagram

#

Description
Price

1

STORAGE COVER, RED - Call your local BRP dealership | WAKE, Includes 1 to 3

269501562

Unavailable

2

PLATE - Call your local BRP dealership

277001479

Unavailable

3

Pop RIvet 1/8 X ,375

293150285

$0.33

4

Deflector | Includes 4 to 5

269501612

$65.99

5

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

6

Spacer

291001203

$13.49

7

RH MIRROR ASS'Y - Call your local BRP dealership | Includes 8 to 11

269501604

Unavailable

8

RH MIRROR - Call your local BRP dealership

269501292

Unavailable

9

Frame Mirror

269500697

Unavailable

10

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

11

RH MIRROR HOUSING, RED - Call your local BRP dealership | WAKE

269501564

Unavailable

12

LH MIRROR HOUSING - Call your local BRP dealership | Includes 13 to 16

269501605

Unavailable

13

LH MIRROR - Call your local BRP dealership

269501294

Unavailable

14

Frame Mirror

269500697

Unavailable

15

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

16

Synthetic Grease, 400 G

293550010

Unavailable

17

Mirror Spring

269500453

$10.49

18

WING NUT M6 - Call your local BRP dealership

232661600

Unavailable

19

LH mirror housing, Red | WAKE

269501565

Unavailable

20

Flange Torx Screw K40 X 16

250000287

$2.11

21

STORAGE COVER SUB-ASS'Y - Call your local BRP dealership

269501552

Unavailable

22

ACCESS BOARD - Call your local BRP dealership

269501610

Unavailable

23

Tuflok Plastic Rivet

293150230

$1.47

24

Hex. Screw 10-14 X 7/8”

211000023

$3.59

25

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

26

Flat Washer M6, Stainless

234062600

$0.77

27

Strap

269502417

$17.69

28

Rubber Buffer

293830119

$18.49

29

Hex. Screw 10-14 X 7/8”

211000023

$3.59

30

RH GRILL ASS'Y - Call your local BRP dealership | Includes 31 to 32

269501614

Unavailable

31

Black, Dart

293730016

$9.97

32

Not Available As Spare Parts

XXX

Unavailable

33

Not Available As Spare Parts

XXX

Unavailable

34

Not Available As Spare Parts

XXX

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

36

LH GRILL ASS'Y - Call your local BRP dealership | Includes 33 to 34

269501615

Unavailable

37

Black, Dart

293730016

$9.97

38

Not Available As Spare Parts

XXX

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

Flange Torx Screw K40 X 16

250000287

$2.11

41

Not Available As Spare Parts

XXX

Unavailable

42

Latch Ass'y

269700109

$24.99

43

Latch Ass'y

269700109

$24.99

44

Latch Ass'y

269700109

$24.99

45

Latch Spring

269700017

$9.19

46

Hex. Screw M6 X 30

207063060

$1.89

47

Stainless Flat Washer M6

234061600

$0.33

48

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

49

SHOCK BASE - Call your local BRP dealership

269501553

Unavailable

50

Shock Ass'y | Includes 44 to 46

269501555

$92.99

51

BELLOW - Call your local BRP dealership

269501557

Unavailable

52

Tie Wrap 94 mm | 4X4

293750001

$1.03

53

GROMMET - Call your local BRP dealership

293720078

Unavailable

54

PIVOT SUPPORT - Call your local BRP dealership

269501639

Unavailable

55

Hex. Screw M6 X 30

207163060

$1.48

56

Flat Washer M6, Stainless

234062600

$0.77

57

Elastic Stop Nut M6, Brass

232561200

$4.23

58

Hex. Forming Screw M6 X 20

207162060

$1.29

59

Elastic Stop Nut M6, Brass

232561200

$4.23

60

Flat Washer M6, Stainless

234062600

$0.77

61

Plastite Hex. Screw M6.8 X 35

243163560

$4.44

62

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

63

Stainless Flat Washer M6

234061600

$0.33

64

Elastic Stop Nut M6, Brass

232561200

$4.23

65

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

66

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

67

Stainless Flat Washer M6

234061600

$0.33

68

Elastic Stop Nut M6, Brass

232561200

$4.23

69

FRONT ARM - Call your local BRP dealership

269501482

$19.99

70

Hex. Screw M6 X 100

230060060

$7.41

71

Loctite 243, 10 ml

293800060

$21.49

72

REAR ARM - Call your local BRP dealership

269501481

Unavailable

73

Hex. Screw M6 X 150

230065060

$10.16

74

Loctite 271, 10 ml

293800005

$26.99

75

Sleeve

269500706

$4.65
