09- Body, Rear View

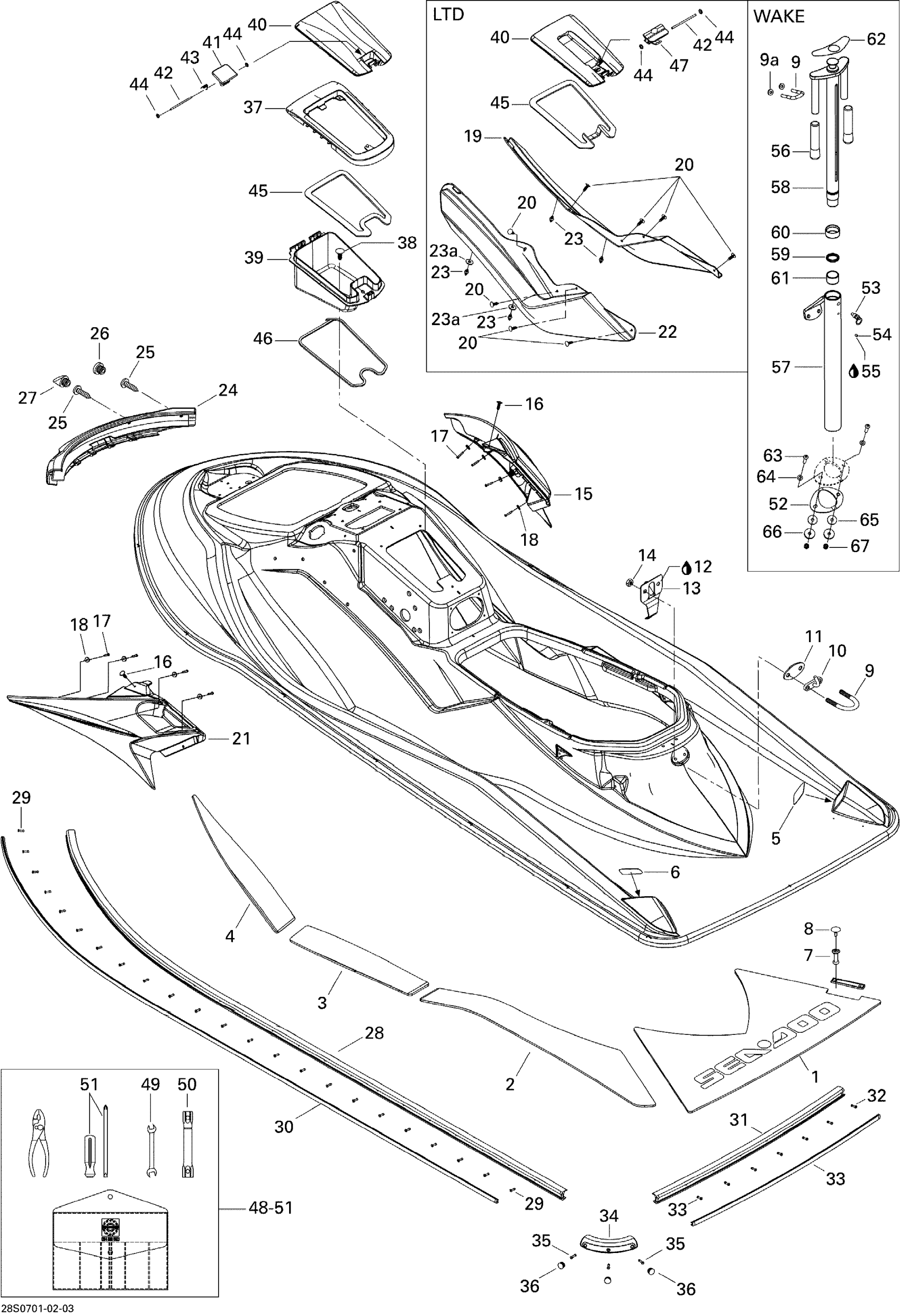

Sea-doo GTX Wake, 2007 09- Body, Rear View Diagram
#
1
ANTI SLIP MAT_DECK - Call your local BRP dealership
291002316
Unavailable
2
RH CENTER REAR CARPET - Call your local BRP dealership
291002382
Unavailable
2
LH CENTER REAR CARPET - Call your local BRP dealership
291002383
Unavailable
3
RH CENTER FRONT CARPET - Call your local BRP dealership
291002384
Unavailable
3
LH Center Front Carpet
291002385
Unavailable
4
RH FRONT CARPET - Call your local BRP dealership
291002386
Unavailable
4
LH FRONT CARPET - Call your local BRP dealership
291002387
Unavailable
5
RH ANTI-SKID - Call your local BRP dealership
291001758
Unavailable
6
LH Anti-Skid
291001759
Unavailable
7
Rivet 1/8"
293150016
$0.40
8
Black, Snap Cap
293000014
$1.09
9
U-Clamp
292000933
$59.49
9a
Flat Washer M8.5 x 18
293050001
$3.07
10
Not Available As Spare Parts
XXX
Unavailable
11
Not Available As Spare Parts
XXX
Unavailable
12
Silicone Sealant 51388, 300 ml
296000309
$36.99
13
Retainer Plate
291001747
Unavailable
14
Hex. Elastic Nut M8 Brass
232581200
$2.22
15
RH Front Moulding
269501527
Unavailable
16
Black, Dart
293730006
$0.99
17
Hex. Flange Screw K40 X 25
241142560
$2.64
18
WASHER 4.3 MM, NYLON - Call your local BRP dealership
250200055
Unavailable
19
Not Available As Spare Parts
XXX
Unavailable
20
Not Available As Spare Parts
XXX
Unavailable
21
LH Front Moulding
269501529
Unavailable
22
Not Available As Spare Parts
XXX
Unavailable
23
Not Available As Spare Parts
XXX
Unavailable
23a
Not Available As Spare Parts
XXX
Unavailable
24
BUMPER NOSE, BLACK - Call your local BRP dealership
291001942
Unavailable
25
TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership
250000236
Unavailable
26
Bumper Plug, Black
291001519
$5.49
27
Bumper Plug, Black
291001040
$7.39
28
Black, Side Bumper
204050270
$179.99
29
Pop Rivet 3/16"
293150005
$0.52
30
Side Bumper Trim
291002504
Unavailable
31
REAR BUMPER, BLACK - Call your local BRP dealership
291002242
Unavailable
32
Pop Rivet 3/16"
293150005
$0.52
33
Rear Bumper Trim, Viper Red
291001484
Unavailable
34
Bumper Corner
291002244
$48.99
35
Pop Rivet 3/16"
293150013
$1.37
36
Bumper Plug, Black
291000339
$2.99
37
Cover Trim, Black
269501031
$53.99
38
Black, Dart
293730006
$0.99
39
GLOVE BOX - Call your local BRP dealership
269500968
Unavailable
40
GLOVE BOX DOOR - Call your local BRP dealership
269501648
Unavailable
41
Latch, Black
269500553
$21.99
42
Pin
211400008
$9.10
43
Latch Spring
291000922
$7.39
44
Push Nut | Not shown
211100002
$2.19
45
GASKET - Call your local BRP dealership
293250126
Unavailable
46
GASKET - Call your local BRP dealership
293250127
Unavailable
47
Not Available As Spare Parts
XXX
Unavailable
48
TOOL KIT - Call your local BRP dealership | Includes 43 to 46
294000744
Unavailable
49
FORK WRENCH - Call your local BRP dealership
529017300
Unavailable
50
Socket Wrench
529035731
Unavailable
51
SCREW DRIVER - Call your local BRP dealership
529000004
Unavailable
52
Seal
293250151
$10.99
53
RETRACTABLE SPRING PIN - Call your local BRP dealership | WAKE
291002276
Unavailable
54
SOCKET SET SCREW M6 X 8 - Call your local BRP dealership | WAKE
206560860
Unavailable
55
Loctite 243, 10 ml
293800060
$21.49
56
Grip | WAKE This part replaces M5340464.
506152483
$12.17
57
Welded Support | WAKE
291002089
Unavailable
58
Welded Ski Pole | WAKE
291002095
Unavailable
59
X-ring | WAKE
293300106
Unavailable
60
UPPER SLEEVE - Call your local BRP dealership | WAKE
291002099
Unavailable
61
LOWER SLEEVE - Call your local BRP dealership | WAKE
291002100
Unavailable
62
WARNING DECAL (WAKE BAR) - Call your local BRP dealership
219902218
Unavailable
63
Socket Head Screw M8 X 40
205484060
$4.12
64
Stainless, Flat Washer 8 mm
234081600
$0.55
65
Rubber Washer
293830037
$2.68
66
Flat Washer 8 mm, Stainless
250200175
$3.06
67
Hex. Elastic Nut M8 Brass
232581200
$2.22
