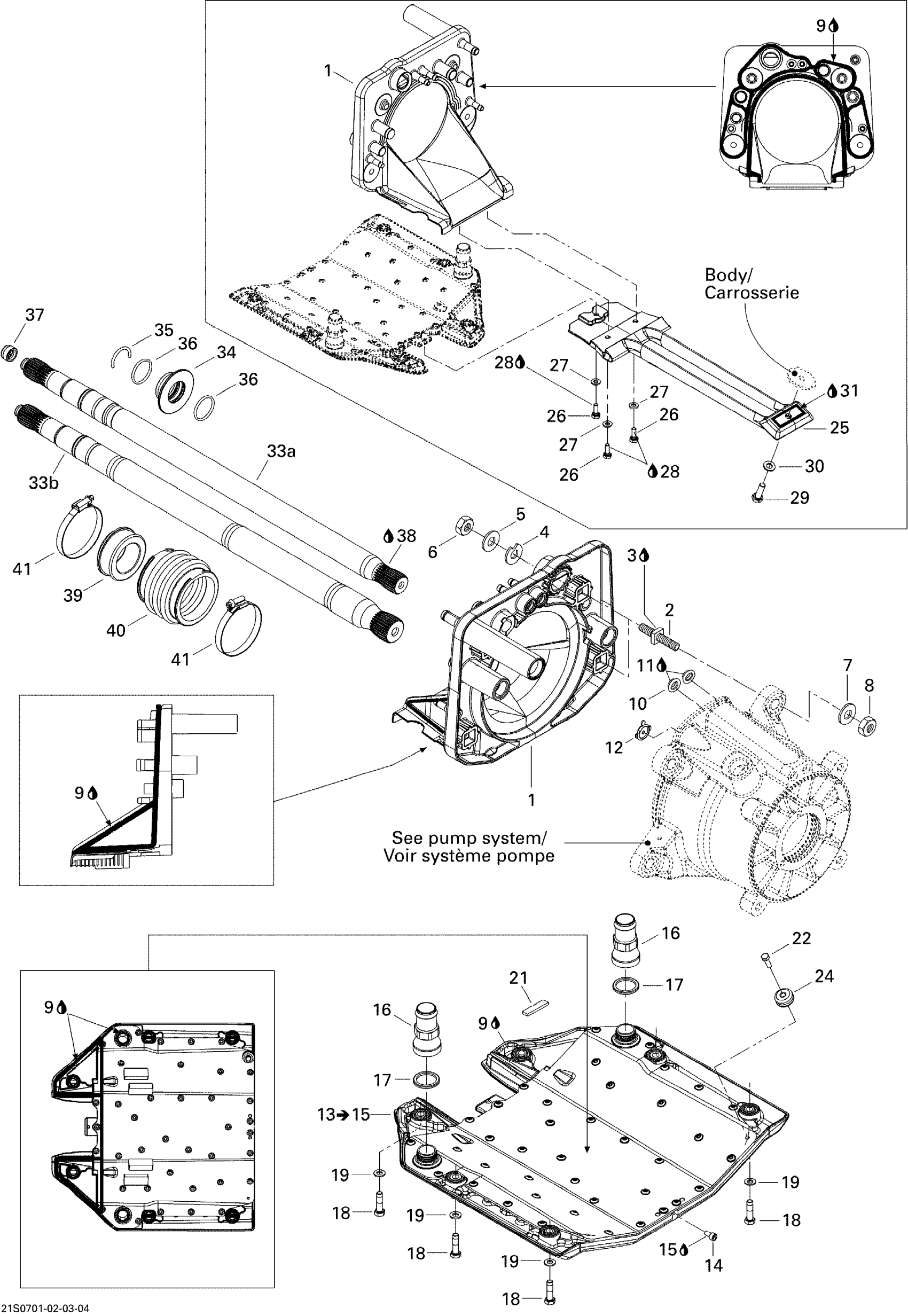

Sea-doo GTX Wake, 2007 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

271001543

Unavailable

2

Square Stud

250300022

$20.99

3

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

4

Shim 0.3 mm

272000053

$11.49

5

Flat Washer 10 mm, Stainless

234002600

$2.22

6

Elastic Stop Nut M10, Brass

232501200

$2.64

7

Flat Washer 10 mm, Stainless

234001600

$1.15

8

Elastic Stop Nut M10, Brass

232501200

$2.64

9

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

10

Watertight Seal

293250084

$7.49

11

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

12

Reducer This part replaces 291001887.

291004649

$17.49

13

Riding Plate Ass'y | Includes 10 to 12

271001649

$275.49

14

Socket Drain Plug M6 X 12

250500005

$16.49

15

Was 293800013 Loctite 56765

219704454

$65.99

16

Straight Plastic Fitting

293710111

$8.47

17

O-Ring

293300121

$8.32

18

Hex. Screw M8 X 40, Scotch Grip

250000230

$2.53

19

Stainless, Flat Washer 8 mm

234081600

$0.55

21

Gasket, Neoprene 2000Mm Long

219704476

$15.36

22

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

24

Anode Zinc

271001813

$18.99

25

GRATE - Call your local BRP dealership

271001560

Unavailable

26

Hex. Screw M6 X 16

207161660

$1.59

27

Stainless Flat Washer M6

234061600

$0.33

28

Loctite 271, 10 ml

293800005

$26.99

29

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

30

Stainless, Flat Washer 8 mm

234081600

$0.55

31

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

33a

Not Available As Spare Parts

XXX

Unavailable

33b

Drive Shaft

271001550

$402.49

34

Carbon Ring Kit | Includes 280b to 280b4

295501204

$82.49

35

C-Clip

271001577

$3.27

36

O-Ring

293300107

$1.01

37

Drive Shaft Plug

272000173

$8.68

38

Synthetic Grease, 400 G

293550010

Unavailable

39

CARBON RING - Call your local BRP dealership | Not Available. Ref Bulletin 2019-4

271001420

Unavailable

40

Bellow This part replaces 271001422.

271001933

$23.49

41

Norma Clamp

293650079

$11.60
