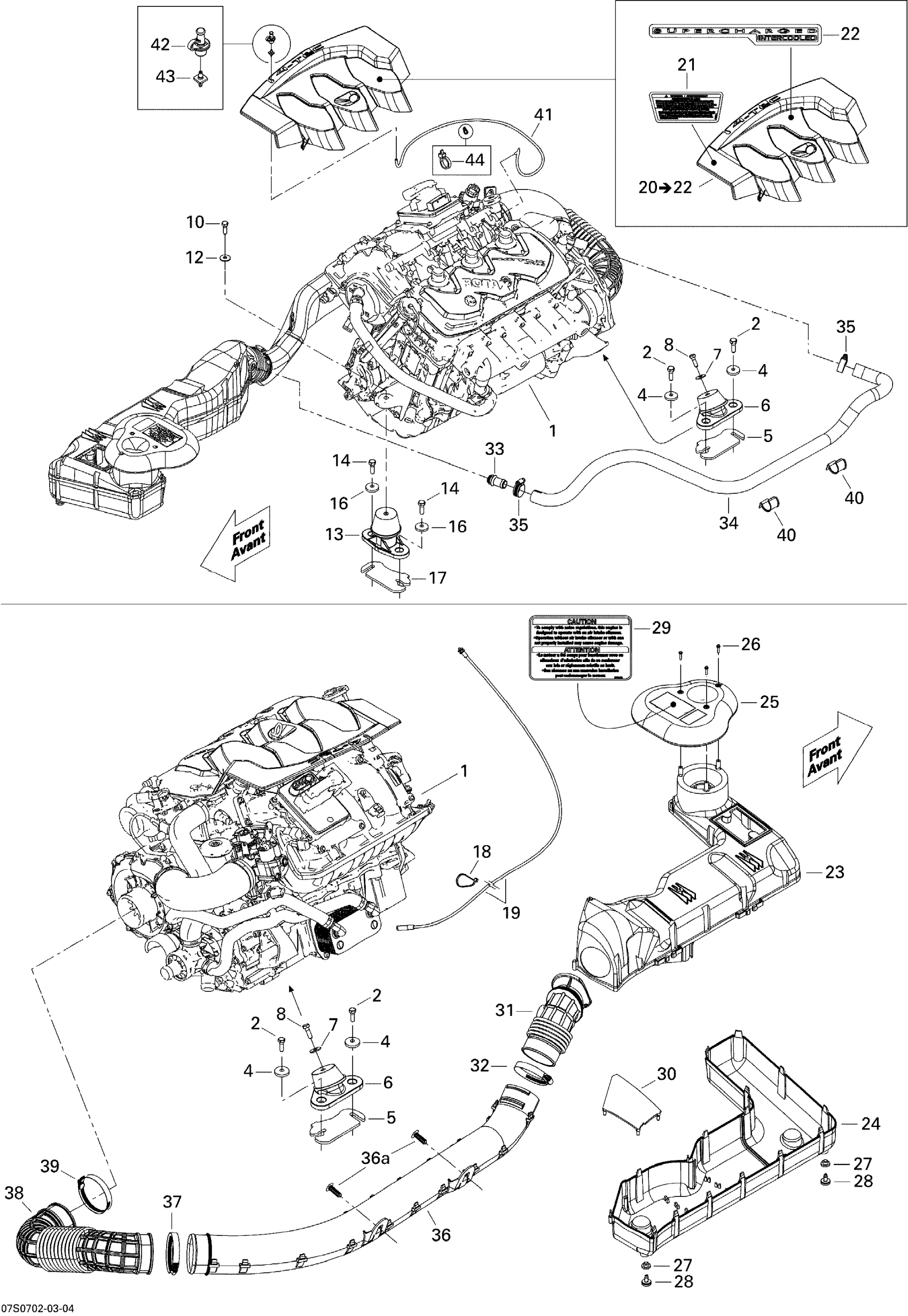

Sea-doo GTX Wake, 2007 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Rotax Engine 1503 BVIC

270000686

Unavailable

2

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

4

Cone Washer

250200018

$5.61

5

Shim 1.3 mm

270000762

$12.99

6

Engine Support Ass'y

270001081

$109.99

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

10

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

12

Flat Washer 8 mm, Stainless

234082600

$2.43

13

Engine Support Ass'y

270001096

$97.99

14

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

16

Cone Washer

250200018

$5.61

17

Shim 1.3 mm

270000762

$12.99

18

Tie-Rap 180 mm

414115200

$0.11

19

THROTTLE CABLE - Call your local BRP dealership

277001121

Unavailable

20

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

21

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

22

IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership

219902676

Unavailable

23

Upper Air Silencer - Call Your Local BRP Dealership

273000222

Unavailable

24

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

25

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

26

Hex. Flange Screw K40 X 16

241141660

$1.48

27

GROMMET - Call your local BRP dealership

293720064

Unavailable

28

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

29

Caution Decal, Air Silencer

219902673

Unavailable

30

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

31

INTAKE HOSE - Call your local BRP dealership

273000186

Unavailable

32

Tridon Clamp

293650179

$11.49

33

Breather Valve

273000234

$14.49

34

FORMED HOSE - Call your local BRP dealership

270000838

Unavailable

35

Tridon Gear Clamp

293650051

$4.19

36

HOSE INTAKE - Call your local BRP dealership | Engine 1500 HO ACE, 1630 ACE HO

273000233

Unavailable

36a

Black, Dart

293730006

$0.99

37

Tridon Clamp

293650179

$11.49

38

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

39

Tridon Clamp

293650179

$11.49

40

Retainer

275500664

$14.75

41

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

42

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

43

CONNECTOR - Call your local BRP dealership

293710107

$1.09

44

Tie Wrap 142 mm

293750002

$1.25
