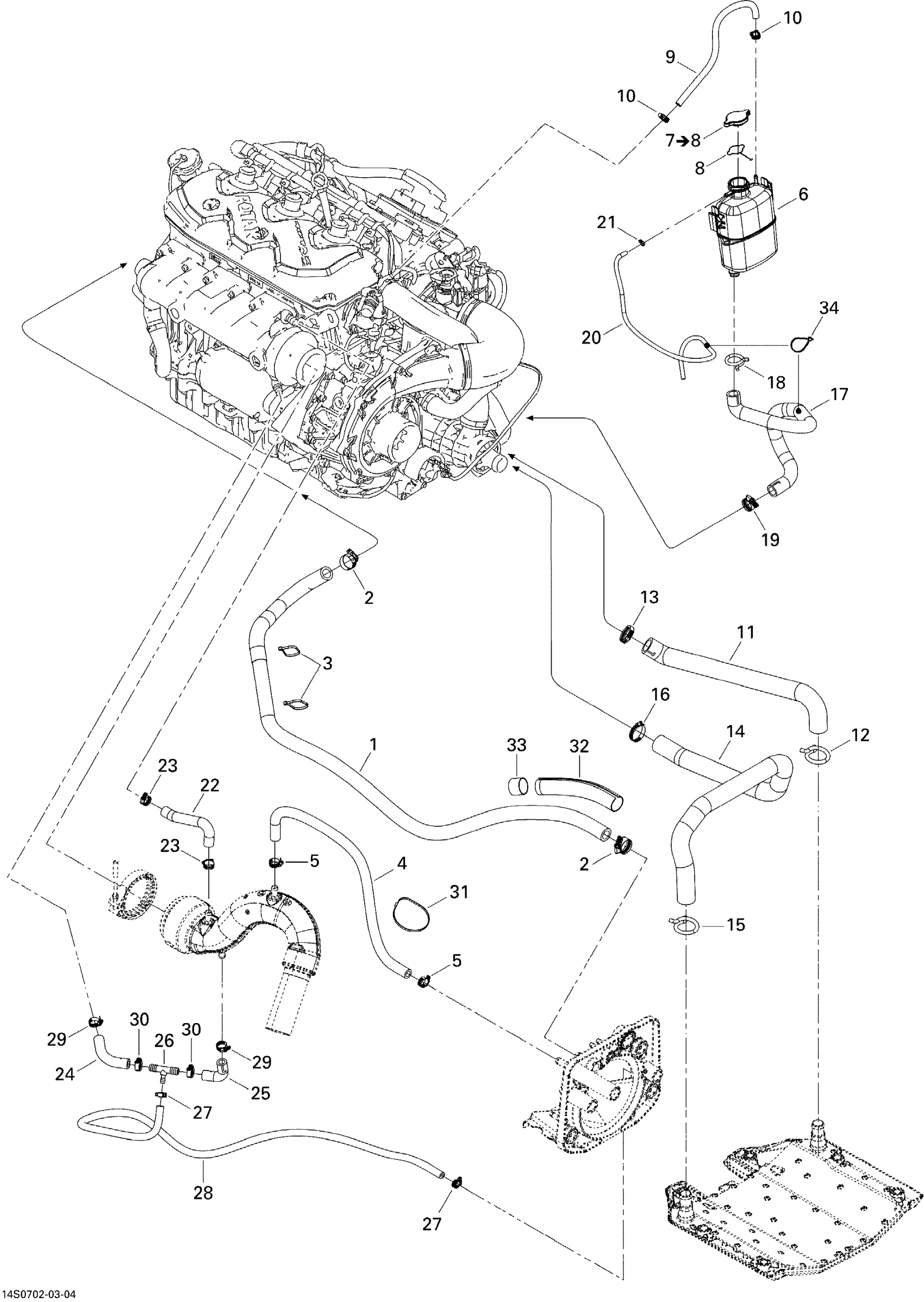

Sea-doo GTX Wake, 2007 Cooling System Diagram

#

Description
Price

1

Formed Hose

276000138

Unavailable

2

Tridon Gear Clamp

293650051

$4.19

3

Tie-Rap 180 mm

414115200

$0.11

4

Was 276000001 Hose 12.5 mm

219704394

$51.99

5

Tridon Gear Clamp

293650172

$3.09

6

Coolant Tank

276000086

$109.99

7

Pressure Cap | Includes 720 to 720a

276000100

$25.99

8

Latch - Call your local BRP dealership | Not Shown

276000127

Unavailable

9

Was 275500549 Hose 1/4"

219704357

$194.99

10

Tridon Gear Clamp

293650170

$1.99

11

RH Radiator Hose

276000248

$58.99

12

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

13

Tridon Gear Clamp

293650045

$5.69

14

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

15

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

16

Tridon Gear Clamp

293650045

$5.69

17

Formed Return Hose

276000144

Unavailable

18

Spring Clamp

293650115

$3.09

19

Tridon Gear Clamp

293650019

$5.82

20

Polyurethane Hose 10000Mm Long

219704410

$56.99

21

Tie Wrap 94 mm | 4X4

293750001

$1.03

22

Formed Hose

276000155

Unavailable

23

Tridon Gear Clamp

293650172

$3.09

24

LOWER FORMED HOSE - Call your local BRP dealership

276000136

Unavailable

25

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

26

T-Fitting

293710116

$17.62

27

Tridon Gear Clamp

293650171

$3.09

28

Hose 8 mm

509000093

Unavailable

29

Tridon Gear Clamp

293650172

$3.09

30

Tridon Gear Clamp

293650173

$3.09

31

Tie Wrap 368 mm

293750008

$1.04

32

Tubing 25 MM 1000MM Long

219704402

$15.99

33

SHRINK TUBING - Call your local BRP dealership

276000125

Unavailable

34

Tie-Rap 180 mm

414115200

$0.11
