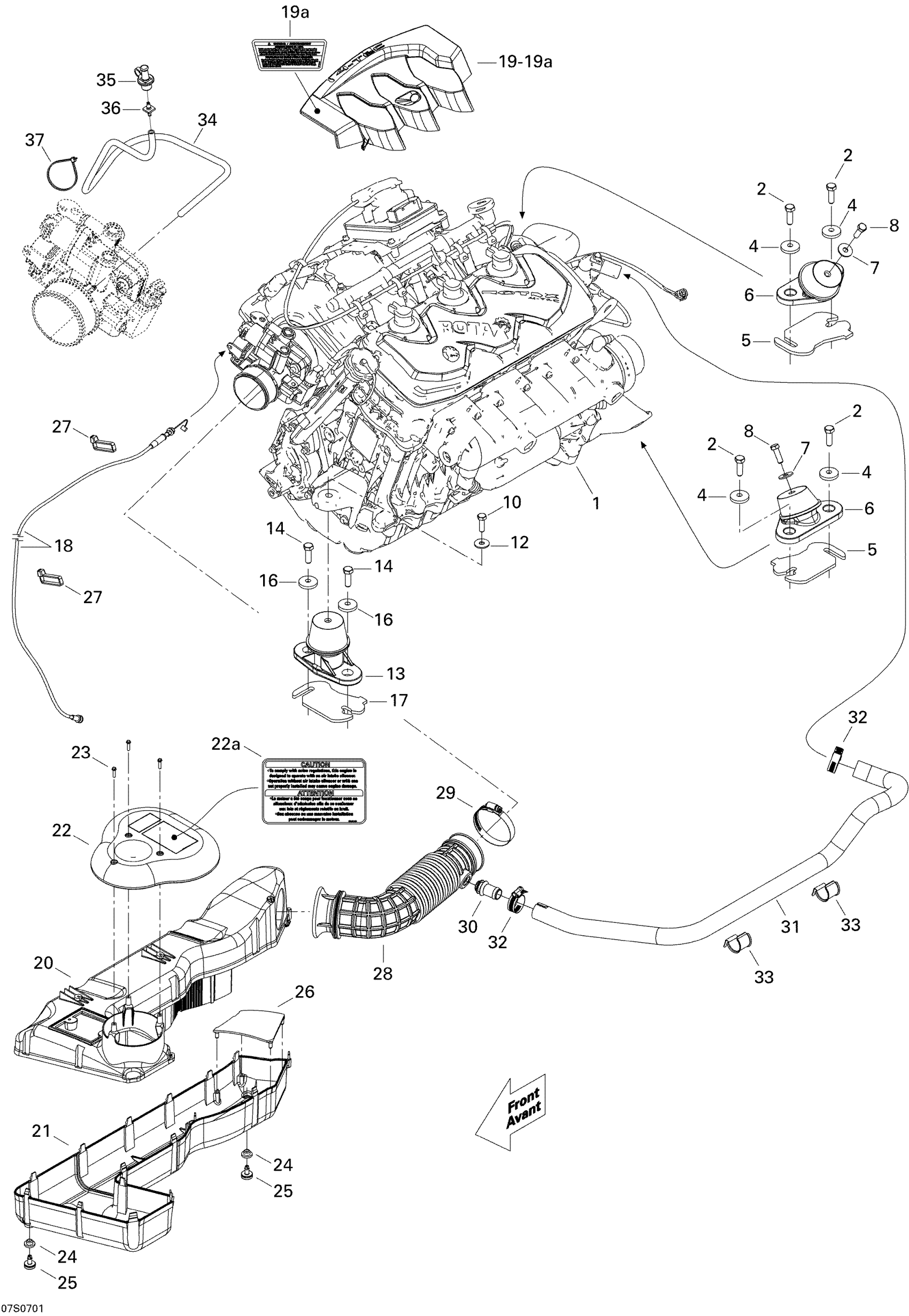

Sea-doo GTX STD & Wake, 2007 01- Engine And Air Intake Silencer Diagram

#

Description
Price

1

Rotax Engine 1503 NA

270000685

Unavailable

2

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

4

Cone Washer

250200018

$5.61

5

Shim 1.3 mm

270000762

$12.99

6

Engine Support Ass'y

270001081

$109.99

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

10

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

12

Flat Washer 8 mm, Stainless

234082600

$2.43

13

Engine Support Ass'y

270001096

$97.99

14

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

16

Cone Washer

250200018

$5.61

17

Shim 1.3 mm

270000762

$12.99

18

THROTTLE CABLE - Call your local BRP dealership

277001170

Unavailable

19

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

19a

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

20

UPPER AIR SILENCER - Call your local BRP dealership

273000224

Unavailable

21

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

22

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

22a

Caution Decal, Air Silencer

219902673

Unavailable

23

Hex. Flange Screw K40 X 16

241141660

$1.48

24

GROMMET - Call your local BRP dealership

293720064

Unavailable

25

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

26

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

27

Tie-Rap 180 mm

414115200

$0.11

28

INTAKE HOSE - Call your local BRP dealership

273000187

Unavailable

29

Tridon Clamp

293650179

$11.49

30

Breather Valve

273000234

$14.49

31

Formed Hose

270000949

$47.99

32

Tridon Gear Clamp

293650051

$4.19

33

Retainer

275500664

$14.75

34

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

35

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

36

CONNECTOR - Call your local BRP dealership

293710107

$1.09

37

Tie Wrap 142 mm

293750002

$1.25
