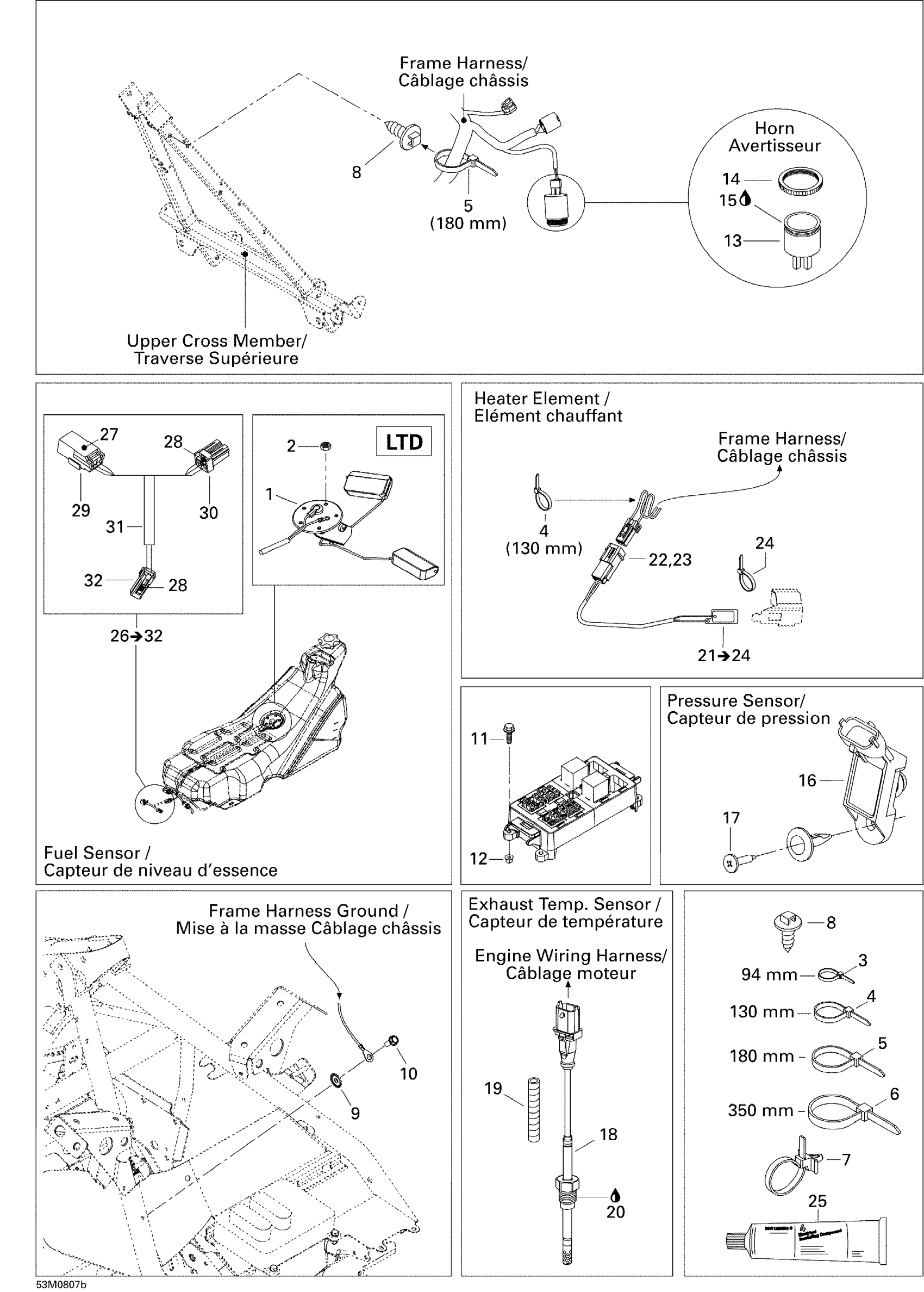

Ski-Doo GTX SPORT 600 HO SDI, 2008 10- Electrical Accessories 2, SPORT Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Not Available As Spare Parts

XXX

Unavailable

3

Tie Wrap 94 mm | 4X4

293750001

$1.03

4

Tie Wrap 142 mm

293750002

$1.25

5

Tie-Rap 180 mm

414115200

$0.11

6

Tie Wrap 368 mm

293750008

$1.04

7

Tie-Rap 173 mm

293750009

$1.04

8

Mount Dart

293730040

$1.04

9

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

10

Hex. Flange Screw M6 X 12

210261250

$1.90

11

Hex.Flange Screw M5 X 20

207652044

$1.90

12

Hex. Flange Elastic Nut M5

233251414

$1.04

13

HORN - Call your local BRP dealership

515176035

Unavailable

14

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

15

Silicone Sealant 51388, 300 ml

296000309

$36.99

16

Pressure Sensor

270600040

$199.99

17

Tuflock Phillips Plastic Screw

414745900

$1.69

18

Temperature Sensor

515176132

$339.99

19

Tubing 6 Mm 3000Mm Long

219704425

$13.75

20

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

21

HEATER ELEMENT SUPPORT ASS'Y - Call your local BRP dealership | Includes 50 to 53

515176653

Unavailable

22

Male Terminal Housing, 2 Circuits

515175654

$9.12

23

Male Terminal

515175232

$1.58

24

Tie Wrap 94 mm | 4X4

293750001

$1.03

25

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

26

EXTENSION HARNESS - Call your local BRP dealership | Includes 26 to 32

515176171

Unavailable

27

Male Terminal

515175232

$1.58

28

Female Terminal

515175231

$4.39

29

Male Housing, 3 Circuits

515175494

$16.18

30

Female Housing, 3 Circuits

515175495

$16.18

31

Tubing 6 Mm 3000Mm Long

219704425

$13.75

32

Female Housing, 2 Circuits

515175658

$16.18
