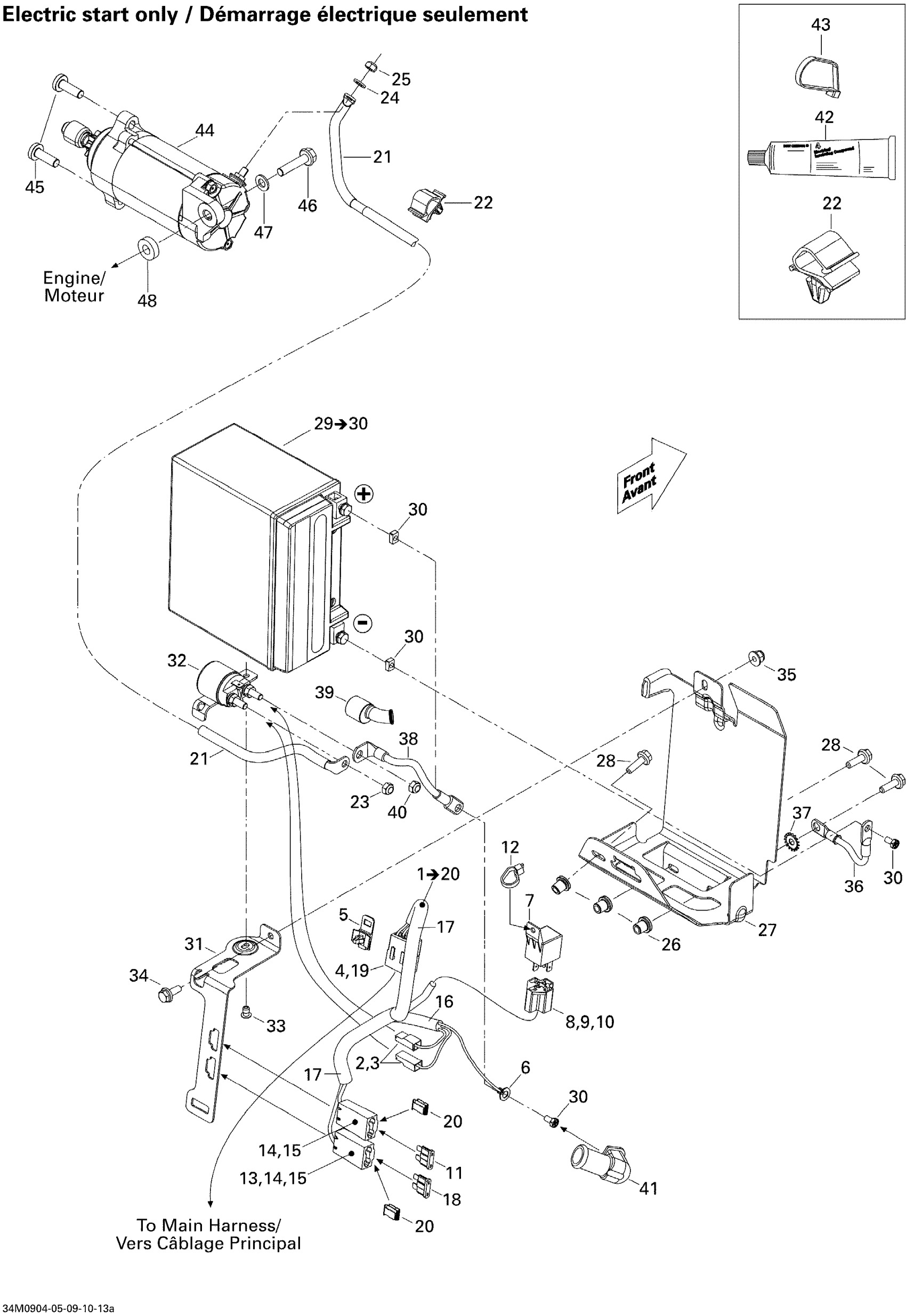

Ski-Doo GTX Sport 500SS, 2009 10- Battery And Starter Diagram

#

Description
Price

1

Battery Harness | Includes 1 to 20

515176773

$68.99

2

Female Terminal

409010100

$5.61

3

Female Terminal Housing, 1 Circuit

409010400

$7.62

4

Male Terminal

515175232

$1.58

5

Housing Support

515175283

$9.19

6

Open Barrel

278000992

$2.21

7

Relay | DS 650 X

710010053

$23.49

8

Female Housing, 5 Circuits

409209900

$9.59

9

Female Terminal

561503100

$2.41

10

Female Terminal

561503100

$2.41

11

Fuse, 30 Amperes

410917200

$3.28

12

Tie Wrap 142 mm

293750002

$1.25

13

Female Terminal

409011600

$5.39

14

Female Terminal

409004200

$4.55

15

Fuse Holder

409004000

$8.09

16

Tubing 6 Mm 3000Mm Long

219704425

$13.75

17

Was 409901700 Tubing (9 mm)

219704399

$84.99

18

Fuse, 5 Amperes | CE

278000344

$3.28

19

Male Terminal Housing, 8 Circuits

515175817

$8.79

20

Clip

710000992

$4.29

21

BATTERY WIRE - Call your local BRP dealership

515177067

Unavailable

22

Tie Rap Mount (screwable)

515176795

$5.39

23

Elastic Stop Nut M6

232561414

$0.55

24

Flat Washer 6 mm

234061410

$1.36

25

Elastic Stop Nut M6

232561414

$0.55

26

Insert

293450275

$12.99

27

BATTERY SUPPORT ASS'Y - Call your local BRP dealership

515176886

Unavailable

28

Hex. Flange Screw M6 X 20

207662044

$2.00

29

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

30

Battery Bolt Kit

250000282

$7.29

31

BATTERY STRIP - Call your local BRP dealership

515177008

Unavailable

32

Starter Relay

515176501

$96.49

33

Pop Rivet 3/16"

390402200

$0.35

34

Hex. Flange Screw M6 X 16

207661644

$0.74

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

36

Ground Wire

515176358

$27.99

37

Lock Washer Serrated M6

250200041

$1.15

38

BATTERY WIRE - Call your local BRP dealership

515176556

Unavailable

39

Protector Cap | XT

515175919

$17.99

40

Elastic Stop Nut M6

232561414

$0.55

41

Protector Cap

710000495

$10.99

42

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

43

Tie Wrap 94 mm | 4X4

293750001

$1.03

43

Tie Wrap 142 mm

293750002

$1.25

43

Tie-Rap 180 mm

414115200

$0.11

43

Tie Wrap 368 mm

293750008

$1.04

44

Starter

515178473

$319.49

45

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

46

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.44

47

Flat Washer With Teflon 8 mm

250200008

$3.80

48

Washer

515176500

$11.12
