Description

Price

1

DEEP BLACK CONSOLE - Call your local BRP dealership This part replaces 517303925.

517303921

Unavailable

2

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

3

Torx Screw M6 X 20

250000722

$1.68

4

Panel Nut M6 X 1.0

250100198

$2.11

5

Console Decal

517304105

$13.99

6

RH Decal

517304103

$19.99

7

LH Decal

517304104

$19.99

8

Torx Truss Screw M6 X 12

250000767

$2.00

9

Torx Screw M6 X 20

250000722

$1.68

10

NUT-WELD THIN M6 - Call your local BRP dealership

250100106

Unavailable

11

Panel Nut M6 X 1.0

250100198

$2.11

12

Gauge Support

517304575

$70.99

13

Torx Screw M6 X 20

250000722

$1.68

14

Panel Nut M6 X 1.0

250100198

$2.11

15

WINSHIELD - Call your local BRP dealership | GT This part replaces 517304032.

860200225

Unavailable

16

Windshield Support

517303607

$34.99

17

Push Nut

732610072

$2.19

18

RH Air Deflector

517303791

$43.99

19

LH Air Deflector

517303792

$43.99

20

Torx Screw K50 X 16

250000720

$1.69

21

Washer M5

250200025

$0.74

22

Rubber Washer 5 mm

250200024

$2.19

23

Grommet

517303756

$4.09

24

Grommet

517303756

$4.09

25

End Piece Latch

517304075

$4.69

26

Panel Latch

517303981

$12.99

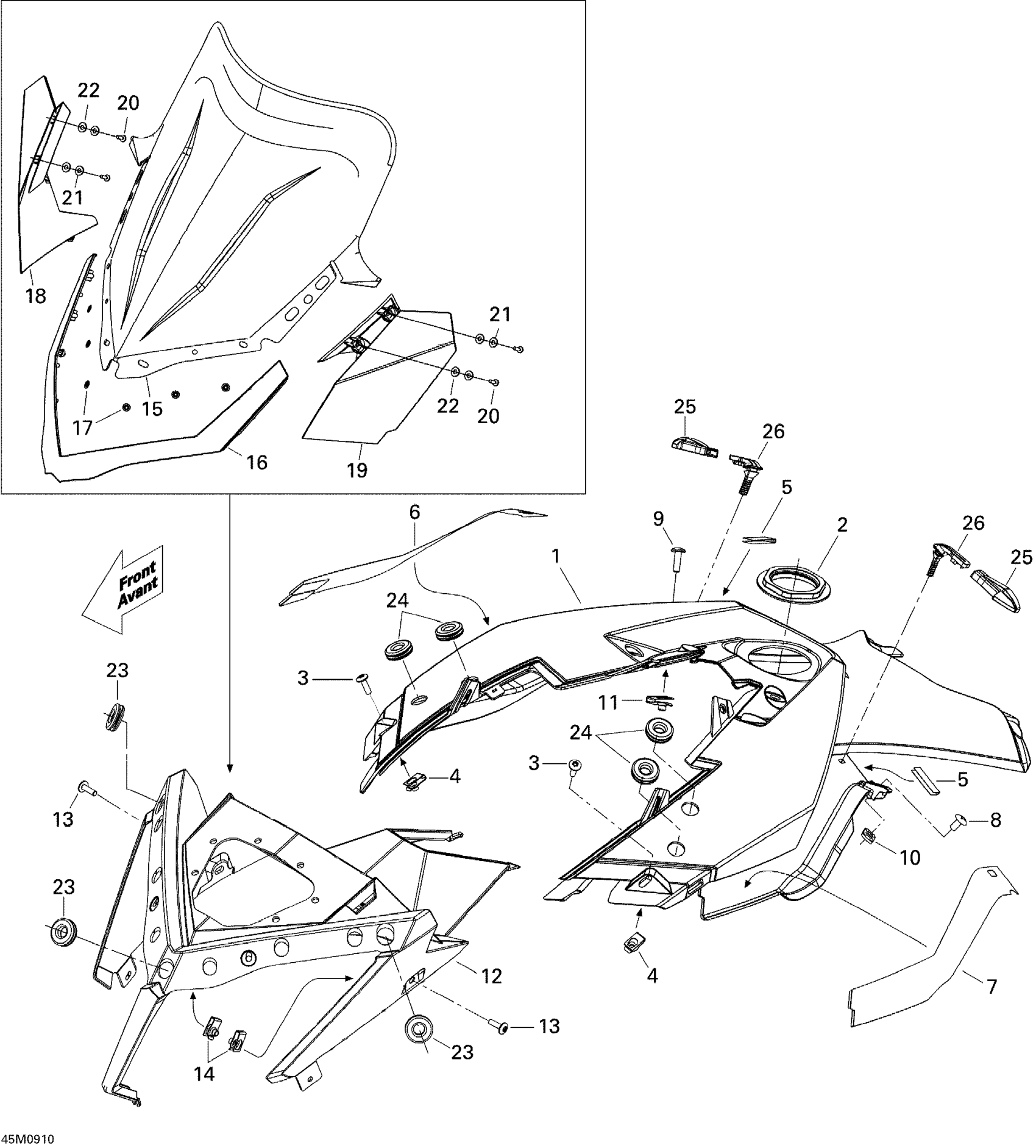

Ski-Doo GTX Sport 500SS, 2009 09- Windshield And Console Diagram

DEEP BLACK CONSOLE - Call your local BRP dealership This part replaces 517303925.

CONSOLE NUT - Call your local BRP dealership

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Console Decal

RH Decal

LH Decal

Torx Truss Screw M6 X 12

Torx Screw M6 X 20

NUT-WELD THIN M6 - Call your local BRP dealership

Panel Nut M6 X 1.0

Gauge Support

Torx Screw M6 X 20

Panel Nut M6 X 1.0

WINSHIELD - Call your local BRP dealership | GT This part replaces 517304032.

Windshield Support

Push Nut

RH Air Deflector

LH Air Deflector

Torx Screw K50 X 16

Washer M5

Rubber Washer 5 mm

Grommet

Grommet

End Piece Latch

Panel Latch
