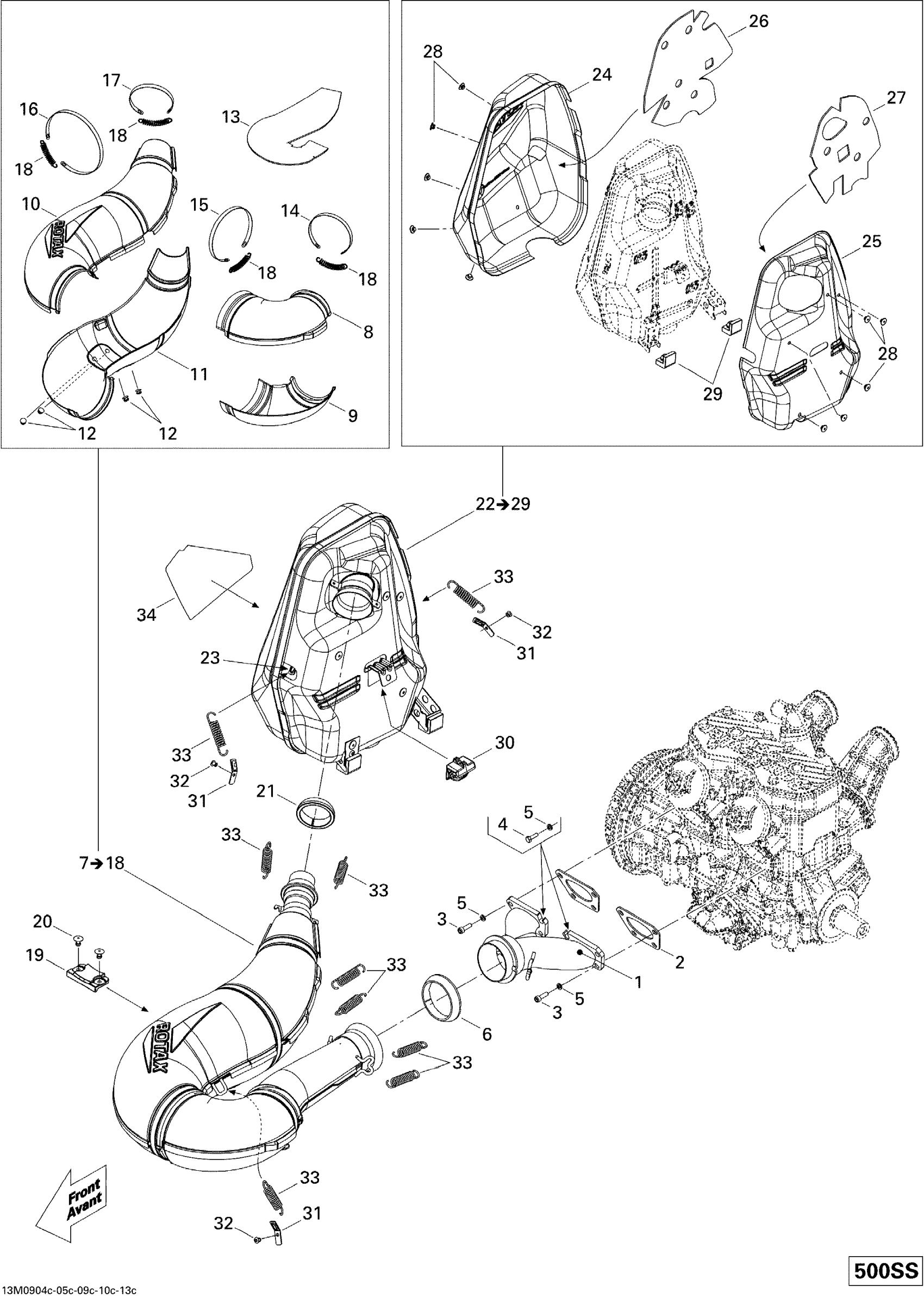

Ski-Doo GTX Sport 500SS, 2009 01- Exhaust System Diagram

#

Description
Price

1

Exhaust Manifold

420673131

$289.99

2

Gasket

420931610

$11.65

3

Socket Head Screw M8 X 25

205082544

$1.15

4

Hex. Screw M8 X 20

207182044

$0.74

5

Washer

514053837

$4.44

6

Exhaust Gasket

514053487

$26.49

7

Exhaust Tuned Pipe | Includes 200 to 200m

514055064

$752.49

8

Front Upper Half Enveloppe

514054992

$40.99

9

Front Lower Half Enveloppe

514054993

$40.99

10

Rear Upper Half Enveloppe

514055039

$65.99

11

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$56.99

12

Henrob Rivet

293150091

$0.77

13

Insulating Wool

514054487

$20.99

14

Retaining Strap

514054408

$13.10

15

Retaining Strap

514054409

$13.10

16

Retaining Strap

514054410

$13.10

17

Retaining Strap

514053499

$11.47

18

Spring

514053643

$6.35

19

Bumper

514054275

$16.34

20

Pop Rivet 3/16"

293150103

$0.55

21

Exhaust Gasket

514053812

$25.99

22

Muffler Ass'y | Includes 400 to 400g

514054972

$858.49

23

Spring Bracket

514054155

Unavailable

24

RH Deflector

514054984

$58.99

25

LH DEFLECTOR - Call your local BRP dealership | 800R ETEC

514054202

Unavailable

26

RH INSULATING WOOL - Call your local BRP dealership

514054298

Unavailable

27

LH Insulating Wool

514054299

$20.99

28

Pop Rivet 3/16”

390910000

$0.57

29

Lower Stopper

514054274

$20.49

30

Upper Stopper

514054606

$19.99

31

Spring Bracket

514054522

$8.45

32

Pop Rivet 3/16"

390402200

$0.35

33

Spring

514054226

$6.35

34

Reflective Sheet

514054488

$14.99
