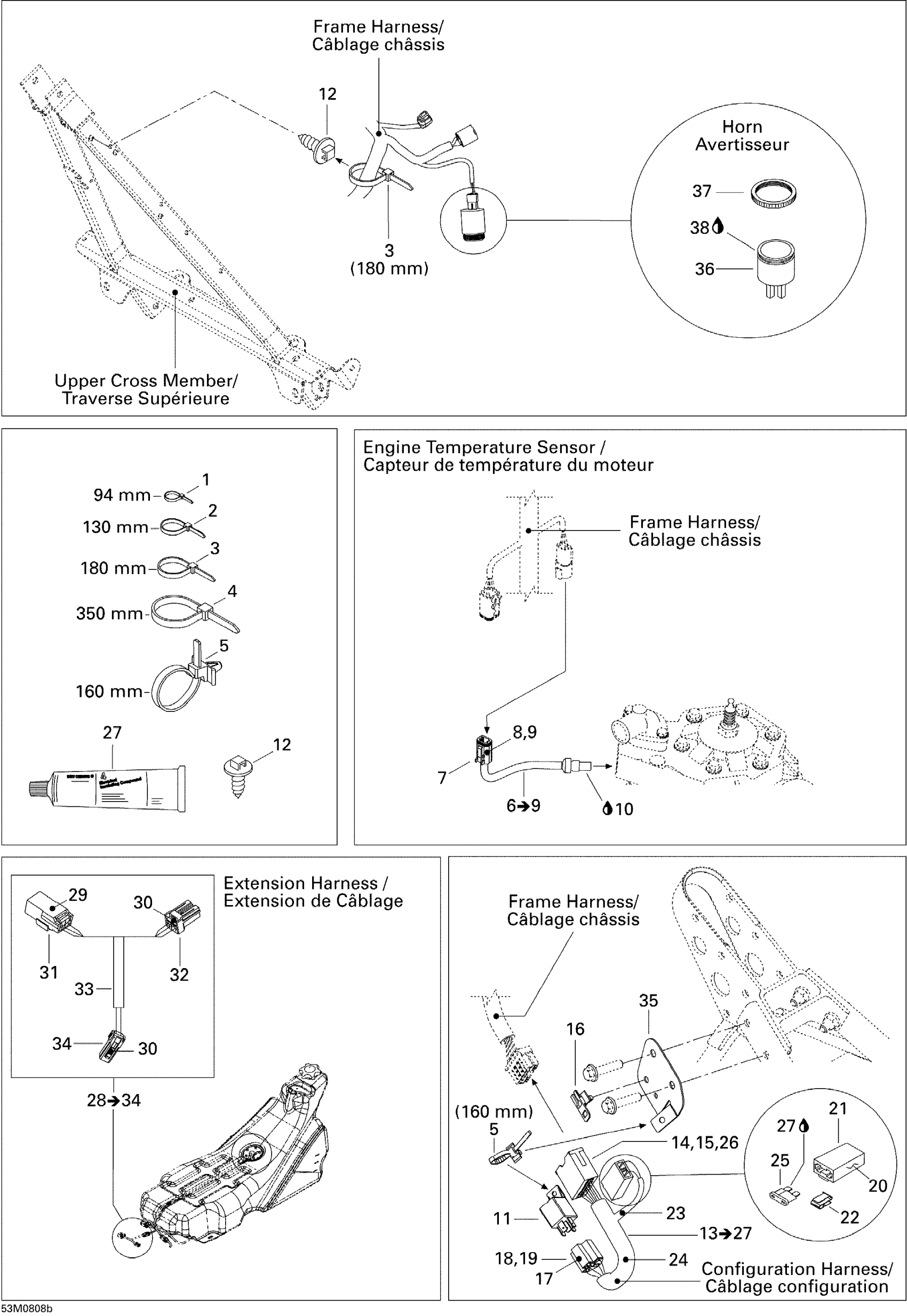

Ski-Doo GTX SPORT 500SS, 2008 10- Electrical Accessories 2 Diagram

#

Description
Price

1

Tie Wrap 94 mm | 4X4

293750001

$1.03

2

Tie Wrap 142 mm

293750002

$1.25

3

Tie-Rap 180 mm

414115200

$0.11

4

Tie Wrap 368 mm

293750008

$1.04

5

Tie-Rap 173 mm

293750009

$1.04

6

Temperature Sensor This part replaces 515176043.

515177835

$92.99

7

Male Connector, 4 Circuits | CE

278000739

$19.49

8

Female Terminal

278000632

$2.09

9

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

10

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

11

Relay | DS 650 X

710010053

$23.49

12

Mount Dart

293730040

$1.04

13

Configuration Harness Ass'y | Includes 13 to 27

515175721

$61.99

14

Male Terminal

515175232

$1.58

15

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

16

Housing Support

515175283

$9.19

17

Female Housing, 5 Circuits

409209900

$9.59

18

Female Terminal

561503100

$2.41

19

Female Terminal

561503100

$2.41

20

Female Terminal

409011600

$5.39

21

Fuse Holder

409004000

$8.09

22

CLIP - Call your local BRP dealership

409014200

Unavailable

23

Tubing 6 Mm 3000Mm Long

219704425

$13.75

24

Was 409901800 Tubing (13 mm)

219704400

$14.49

25

Fuse, 5 Amperes | CE

278000344

$3.28

26

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

27

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

28

EXTENSION HARNESS - Call your local BRP dealership | Includes 26 to 32

515176171

Unavailable

29

Male Terminal

515175232

$1.58

30

Female Terminal

515175231

$4.39

31

Male Housing, 3 Circuits

515175494

$16.18

32

Female Housing, 3 Circuits

515175495

$16.18

33

Tubing 6 Mm 3000Mm Long

219704425

$13.75

34

Female Housing, 2 Circuits

515175658

$16.18

35

HARNESS SUPPORT - Call your local BRP dealership

515176020

Unavailable

36

HORN - Call your local BRP dealership

515176035

Unavailable

37

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

38

Silicone Sealant 51388, 300 ml

296000309

$36.99
