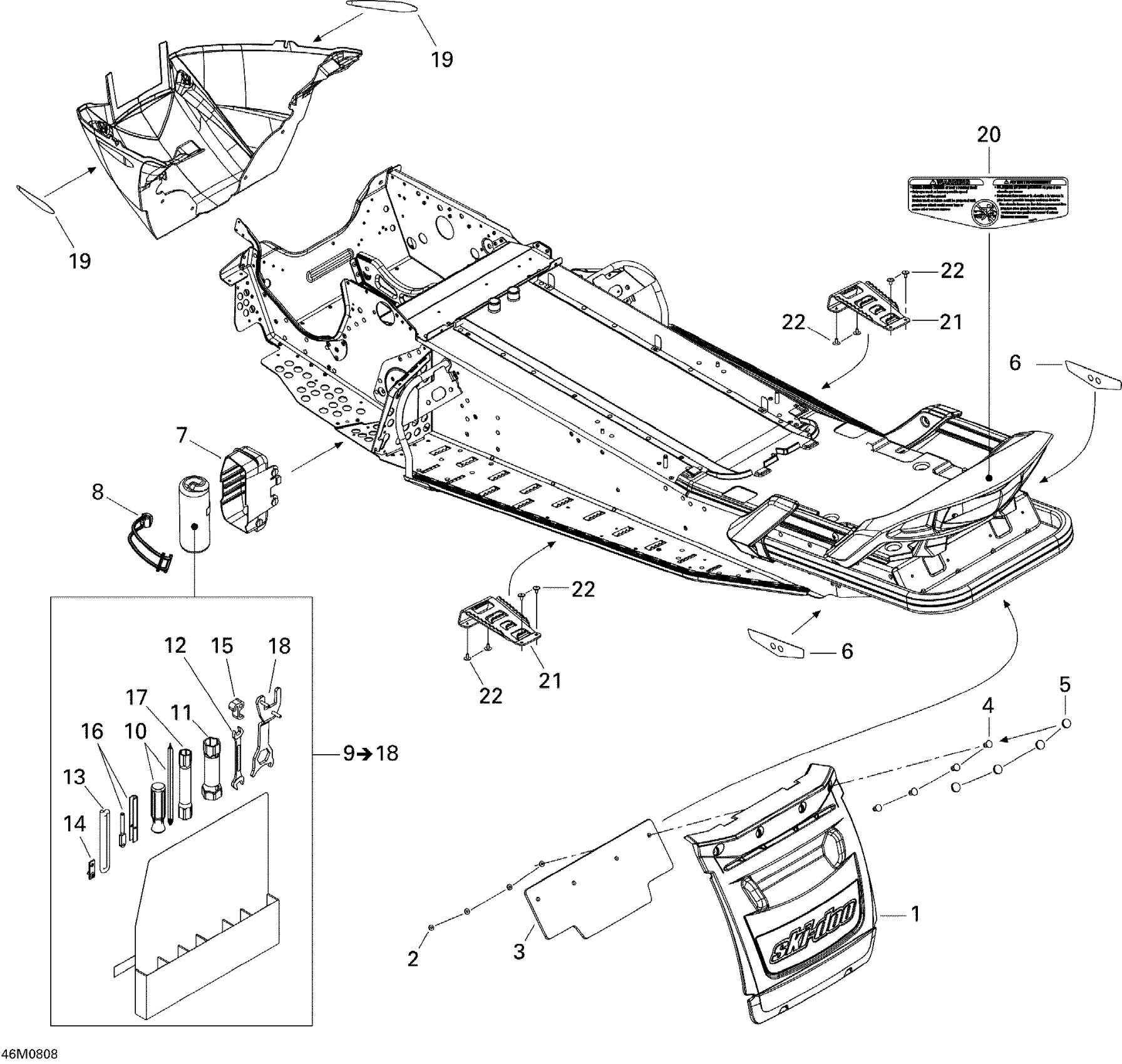

Ski-Doo GTX SPORT 500SS, 2008 09- Utilities Diagram

#

Description
Price

1

SNOW GUARD - Call your local BRP dealership

520000502

Unavailable

2

Flat Washer

517225900

$0.18

3

SNOW GUARD REINFORCEMENT - Call your local BRP dealership

520000488

Unavailable

4

Pop Rivet 3/16”

293150087

$0.93

5

Black, Cap

277000203

$9.39

6

REAR REFLECTOR - Call your local BRP dealership | Except Europe

520000382

Unavailable

7

TRUNK - Call your local BRP dealership

520000322

Unavailable

8

Latch

520000528

$7.69

9

Tool Kit | Includes 7 to 17

529000036

Unavailable

10

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

11

Socket Wrench 21/26 mm

529014800

Unavailable

12

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

13

Was 412500100 Rope-Starter

219704403

$158.99

14

ROPE ADAPTOR - Call your local BRP dealership | Includes 13 to 14

529024400

Unavailable

15

Starter Grip

529000060

$14.15

16

Spacing Tool

529035501

$4.72

17

Socket Wrench 16/18 mm

295000175

Unavailable

18

WRENCH - Call your local BRP dealership

520000721

Unavailable

19

FRONT REFLECTOR - Call your local BRP dealership

516001336

Unavailable

20

WARNING LABEL, TRACK SECURITY - Call your local BRP dealership

516003034

Unavailable

21

Footrest

520000492

$19.99

22

Pop Rivet 3/16" | DS 650 X

293150104

$1.09
