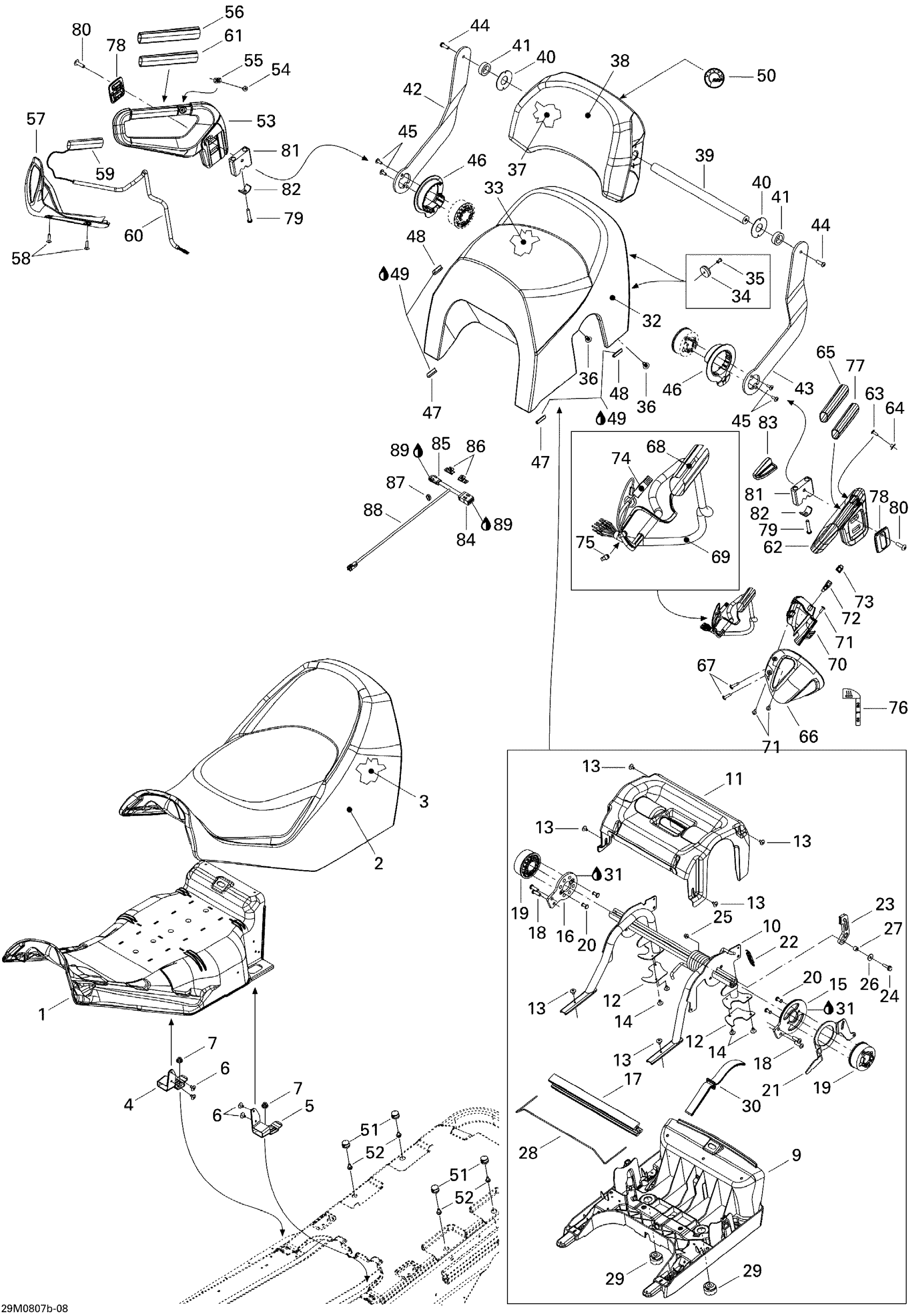

Ski-Doo GTX SPORT 500SS, 2008 Seat Diagram

#

Description
Price

1

FRONT SEAT BASE - Call your local BRP dealership

510004353

Unavailable

2

SEAT COVER, BLACK - Call your local BRP dealership

510004637

Unavailable

3

FRONT SEAT FOAM - Call your local BRP dealership

510004355

Unavailable

4

RH FIXATION PLATE, BLACK - Call your local BRP dealership

510004463

Unavailable

5

LH FIXATION PLATE, BLACK - Call your local BRP dealership

510004464

Unavailable

6

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

7

Hex. Flange Elastic Nut M8

233281414

$1.31

9

SEAT BASE - Call your local BRP dealership

510004433

Unavailable

10

SUPPORT - Call your local BRP dealership

510004381

Unavailable

11

Foam Support

510004423

$35.04

12

WEAR PLATE - Call your local BRP dealership

510004500

Unavailable

13

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

14

Pop Rivet 3/16”

293150108

$1.19

15

Sprocket

510004391

$27.58

16

LINK PLATE - Call your local BRP dealership

510004393

Unavailable

17

LINK TUBE - Call your local BRP dealership

510005496

Unavailable

18

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

Unavailable

19

SPACER - Call your local BRP dealership

510005425

Unavailable

20

STEEL RIVET - Call your local BRP dealership

293150129

Unavailable

21

HANDLE, BLACK - Call your local BRP dealership

510004385

Unavailable

22

HANDLE SPRING - Call your local BRP dealership

510004395

Unavailable

23

Adjustment Pivot

510006338

$20.12

24

Hex. Flange Screw M6 X 25

207662544

$0.61

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

26

Flat Washer

224061201

$1.27

27

BUSHING - Call your local BRP dealership

510004425

Unavailable

28

ANCHOR SPRING - Call your local BRP dealership

510004421

Unavailable

29

Bumper Rubber

708000760

$8.84

30

BELT - Call your local BRP dealership

510004495

Unavailable

31

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

32

REAR SEAT COVER, BLACK B-160 - Call your local BRP dealership

510004555

Unavailable

33

REAR SEAT FOAM - Call your local BRP dealership

510004358

Unavailable

34

Rubber Stopper

415018100

$2.28

35

Pop Rivet 1/8", Black

293150189

$0.24

36

Black Dart

293730010

$0.93

37

BACKREST FOAM - Call your local BRP dealership

510004365

Unavailable

38

BACKREST COVER, BLACK - Call your local BRP dealership

510004645

Unavailable

39

Upper Backrest Axle

510004377

$44.00

40

Washer

510004379

$8.69

41

Rubber Shim

510004378

$8.36

42

RH ARM, BLACK - Call your local BRP dealership

510004373

Unavailable

43

LH ARM, BLACK - Call your local BRP dealership

510004375

Unavailable

44

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

Unavailable

45

Torx Truss Screw M8 X 16

250000746

$3.19

46

SPACER - Call your local BRP dealership

510004384

Unavailable

47

FRONT SEAT CORNER - Call your local BRP dealership

510004610

Unavailable

48

REAR SEAT CORNER - Call your local BRP dealership

510004611

Unavailable

49

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

50

BRP Logo, Vinyl

219902477

Unavailable

51

SEAT STUD - Call your local BRP dealership

510004676

Unavailable

52

Flange Screw M6 X 10, Scotch Grip

207561044

$6.76

53

RH HANDLE - Call your local BRP dealership

510005865

Unavailable

54

Torx Truss Screw M6 X 16

250000721

$1.60

55

Nut Welded, M6

293100003

$7.25

56

Handle Grip

510004449

$10.33

57

RH Deflector

510004415

$25.34

58

Screw 25MM

250000961

$2.31

59

Heater

515176393

$57.43

60

Was 515175506 Tubing

219704426

$132.06

61

HANDLE REINFORFORCEMENT - Call your local BRP dealership

510004709

Unavailable

62

LH Handle

510005862

$117.13

63

Torx Truss Screw M6 X 16

250000721

$1.60

64

Nut Welded, M6

293100003

$7.25

65

Handle Grip

510004449

$10.33

66

LH Deflector

510004416

$25.34

67

Screw 25MM

250000961

$2.31

68

Heater

515176393

$57.43

69

Was 515175506 Tubing

219704426

$132.06

70

Switch Housing

510004566

$11.58

71

Torx Screw K50 X 16

250000720

$1.60

72

Rocker Switch

510004413

$8.31

73

Switch Protector

510004414

$7.15

74

LH Handle Harness

515176241

Unavailable

75

Tie-Rap 180 mm

414115200

$0.10

76

Handle Heater Decal

516002835

$10.04

77

HANDLE REINFORFORCEMENT - Call your local BRP dealership

510004709

Unavailable

78

Passenger Handle Trim

510006602

$11.36

79

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership

250000220

Unavailable

80

Hex Torx Truss M8 X30

250000745

$2.96

81

HANDLE LINK - Call your local BRP dealership

510004530

Unavailable

82

HANDLE CLAMP - Call your local BRP dealership

510004565

Unavailable

83

GRIP - Call your local BRP dealership

510004419

Unavailable

84

Male Terminal Housing, 8 Circuits

515175817

$8.31

85

Male Housing, 3 Circuits

515175494

$14.90

86

Housing Support

515175283

$8.18

87

Tie-Rap 180 mm

414115200

$0.10

88

SEAT HARNESS - Call your local BRP dealership

515176170

Unavailable

89

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54
