Description

Price

1

FRONT SEAT BASE - Call your local BRP dealership

510004353

Unavailable

2

SEAT COVER, BLACK - Call your local BRP dealership

510004637

Unavailable

3

FRONT SEAT FOAM - Call your local BRP dealership

510004355

Unavailable

4

RH FIXATION PLATE, BLACK - Call your local BRP dealership

510004463

Unavailable

5

LH FIXATION PLATE, BLACK - Call your local BRP dealership

510004464

Unavailable

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Not Available As Spare Part - Friction Washer

Unavailable

9

SEAT BASE - Call your local BRP dealership

510004433

Unavailable

10

SUPPORT - Call your local BRP dealership

510004381

Unavailable

11

Foam Support

510004423

$38.99

12

WEAR PLATE - Call your local BRP dealership

510004500

Unavailable

13

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

14

Pop Rivet 3/16”

293150108

$1.19

15

Sprocket

510004391

$29.99

16

LINK PLATE - Call your local BRP dealership

510004393

Unavailable

17

LINK TUBE - Call your local BRP dealership

510005496

Unavailable

18

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

Unavailable

19

SPACER - Call your local BRP dealership

510005425

Unavailable

20

STEEL RIVET - Call your local BRP dealership

293150129

Unavailable

21

HANDLE, BLACK - Call your local BRP dealership

510004385

Unavailable

22

HANDLE SPRING - Call your local BRP dealership

510004395

Unavailable

23

Adjustment Pivot

510006338

$22.49

24

Hex. Flange Screw M6 X 25

207662544

$0.64

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

26

Flat Washer

224061201

$1.37

27

BUSHING - Call your local BRP dealership

510004425

Unavailable

28

ANCHOR SPRING - Call your local BRP dealership

510004421

Unavailable

29

Bumper Rubber

708000760

$10.49

30

BELT - Call your local BRP dealership

510004495

Unavailable

31

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

32

REAR SEAT COVER, BLACK B-160 - Call your local BRP dealership

510004555

Unavailable

33

REAR SEAT FOAM - Call your local BRP dealership

510004358

Unavailable

34

Rubber Stopper

415018100

$2.49

35

Pop Rivet 1/8", Black

293150189

$0.27

36

Black Dart

293730010

$0.99

37

BACKREST FOAM - Call your local BRP dealership

510004365

Unavailable

38

BACKREST COVER, BLACK - Call your local BRP dealership

510004645

Unavailable

39

Upper Backrest Axle

510004377

$44.99

40

Washer

510004379

$10.01

41

Rubber Shim

510004378

$10.99

42

RH ARM, BLACK - Call your local BRP dealership

510004373

Unavailable

43

LH ARM, BLACK - Call your local BRP dealership

510004375

Unavailable

44

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

Unavailable

45

Torx Truss Screw M8 X 16

250000746

$3.38

46

SPACER - Call your local BRP dealership

510004384

Unavailable

47

FRONT SEAT CORNER - Call your local BRP dealership

510004610

Unavailable

48

REAR SEAT CORNER - Call your local BRP dealership

510004611

Unavailable

49

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

50

BRP Logo, Vinyl

219902477

Unavailable

51

SEAT STUD - Call your local BRP dealership

510004676

Unavailable

52

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

53

RH HANDLE - Call your local BRP dealership

510005865

Unavailable

54

Torx Truss Screw M6 X 16

250000721

$1.69

55

Nut Welded, M6

293100003

$9.12

56

Handle Grip

510004449

$12.49

57

RH Deflector

510004415

$27.99

58

Screw 25MM

250000961

$2.59

59

Heater

515176393

$63.99

60

Was 515175506 Tubing

219704426

$142.99

61

HANDLE REINFORFORCEMENT - Call your local BRP dealership

510004709

Unavailable

62

LH Handle

510005862

$126.99

63

Torx Truss Screw M6 X 16

250000721

$1.69

64

Nut Welded, M6

293100003

$9.12

65

Handle Grip

510004449

$12.49

66

LH Deflector

510004416

$27.99

67

Screw 25MM

250000961

$2.59

68

Heater

515176393

$63.99

69

Was 515175506 Tubing

219704426

$142.99

70

Switch Housing

510004566

$13.18

71

Torx Screw K50 X 16

250000720

$1.69

72

Rocker Switch

510004413

$8.79

73

Switch Protector

510004414

$7.99

74

LH Handle Harness

515176241

$29.99

75

Tie-Rap 180 mm

414115200

$0.11

76

Handle Heater Decal

516002835

$13.49

77

HANDLE REINFORFORCEMENT - Call your local BRP dealership

510004709

Unavailable

78

Passenger Handle Trim

510006602

$13.99

79

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership

250000220

Unavailable

80

Hex Torx Truss M8 X30

250000745

$3.17

81

HANDLE LINK - Call your local BRP dealership

510004530

Unavailable

82

HANDLE CLAMP - Call your local BRP dealership

510004565

$16.49

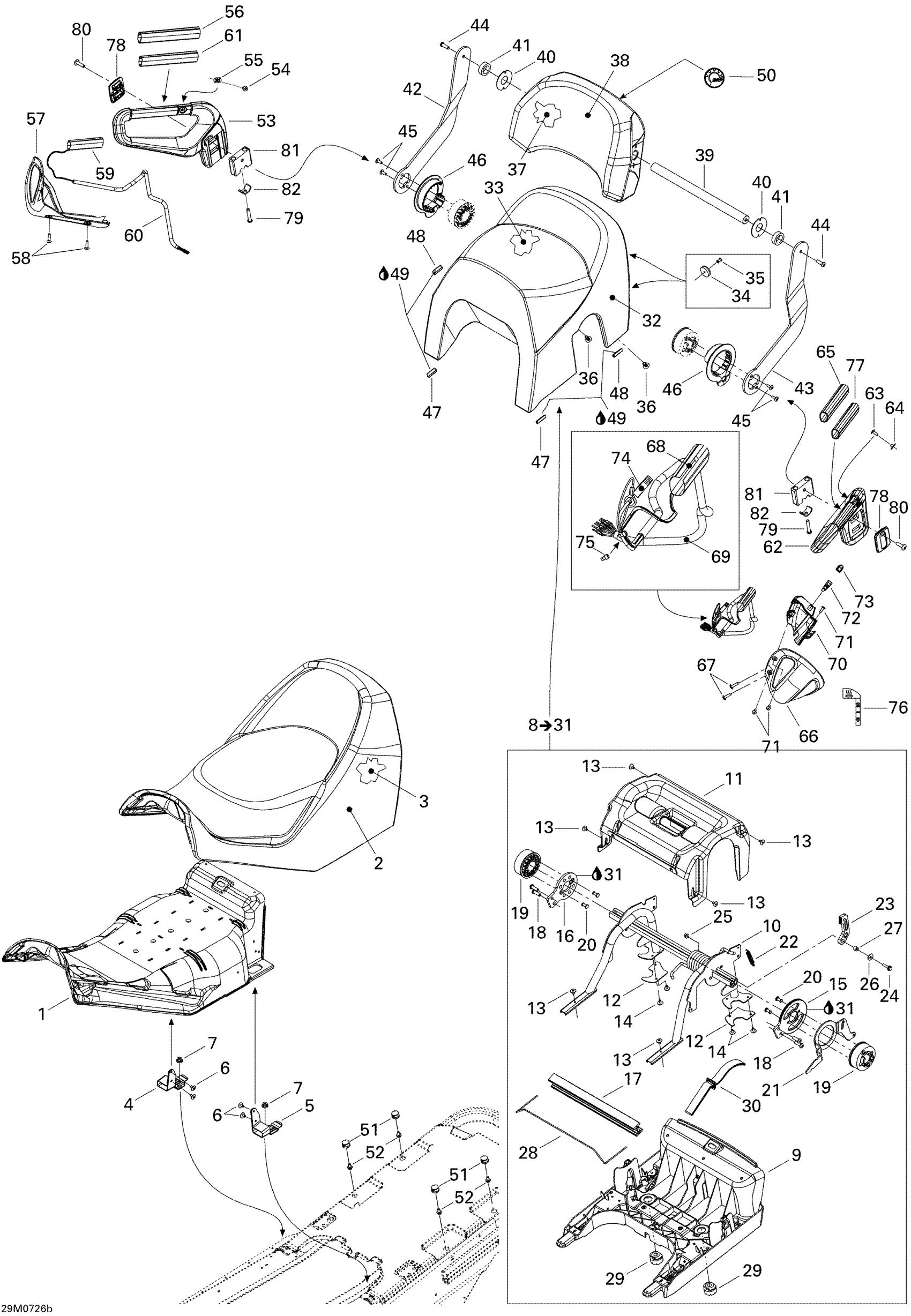

Ski-Doo GTX Sport 500 SS, 2007 09- Seat SPORT Diagram

FRONT SEAT BASE - Call your local BRP dealership

SEAT COVER, BLACK - Call your local BRP dealership

FRONT SEAT FOAM - Call your local BRP dealership

RH FIXATION PLATE, BLACK - Call your local BRP dealership

LH FIXATION PLATE, BLACK - Call your local BRP dealership

Pop Rivet 3/16" | DS 650 X

Hex. Flange Elastic Nut M8

Not Available As Spare Part - Friction Washer

SEAT BASE - Call your local BRP dealership

SUPPORT - Call your local BRP dealership

Foam Support

WEAR PLATE - Call your local BRP dealership

Pop Rivet 3/16" | DS 650 X

Pop Rivet 3/16”

Sprocket

LINK PLATE - Call your local BRP dealership

LINK TUBE - Call your local BRP dealership

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

SPACER - Call your local BRP dealership

STEEL RIVET - Call your local BRP dealership

HANDLE, BLACK - Call your local BRP dealership

HANDLE SPRING - Call your local BRP dealership

Adjustment Pivot

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Flat Washer

BUSHING - Call your local BRP dealership

ANCHOR SPRING - Call your local BRP dealership

Bumper Rubber

BELT - Call your local BRP dealership

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

REAR SEAT COVER, BLACK B-160 - Call your local BRP dealership

REAR SEAT FOAM - Call your local BRP dealership

Rubber Stopper

Pop Rivet 1/8", Black

Black Dart

BACKREST FOAM - Call your local BRP dealership

BACKREST COVER, BLACK - Call your local BRP dealership

Upper Backrest Axle

Washer

Rubber Shim

RH ARM, BLACK - Call your local BRP dealership

LH ARM, BLACK - Call your local BRP dealership

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

Torx Truss Screw M8 X 16

SPACER - Call your local BRP dealership

FRONT SEAT CORNER - Call your local BRP dealership

REAR SEAT CORNER - Call your local BRP dealership

Était Was 413705800 Loctite 414 , 29.5 c.c

BRP Logo, Vinyl

SEAT STUD - Call your local BRP dealership

Flange Screw M6 X 10, Scotch Grip

RH HANDLE - Call your local BRP dealership

Torx Truss Screw M6 X 16

Nut Welded, M6

Handle Grip

RH Deflector

Screw 25MM

Heater

Was 515175506 Tubing

HANDLE REINFORFORCEMENT - Call your local BRP dealership

LH Handle

Torx Truss Screw M6 X 16

Nut Welded, M6

Handle Grip

LH Deflector

Screw 25MM

Heater

Was 515175506 Tubing

Switch Housing

Torx Screw K50 X 16

Rocker Switch

Switch Protector

LH Handle Harness

Tie-Rap 180 mm

Handle Heater Decal

HANDLE REINFORFORCEMENT - Call your local BRP dealership

Passenger Handle Trim

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership
