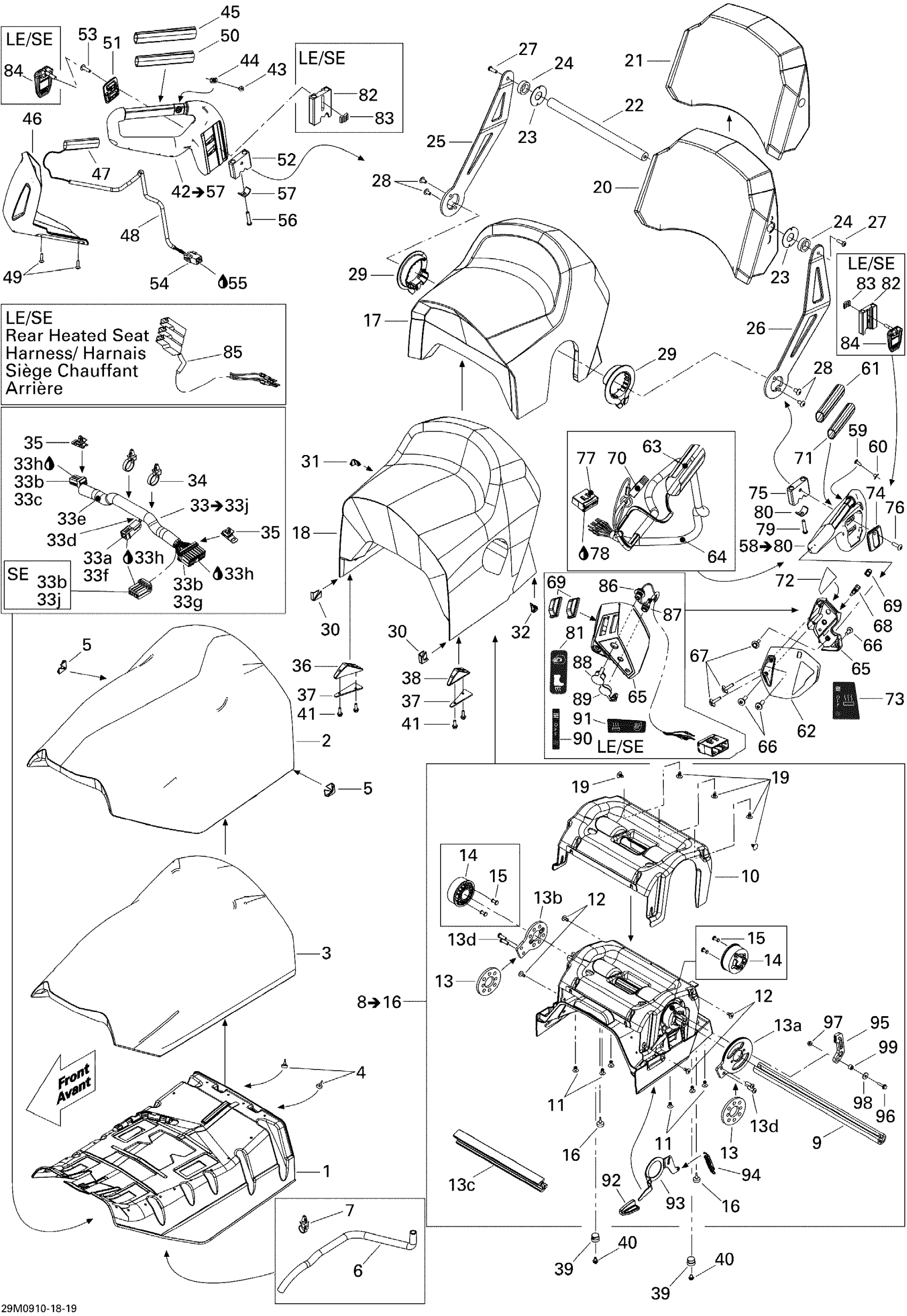

Ski-Doo GTX SE 1200 4-TEC, 2009 Seat Diagram

#

Description
Price

1

Front Seat Base

510004775

$88.43

2

FRONT HEATED SEAT COVER - Call your local BRP dealership

510004973

Unavailable

3

Front Seat Foam

510004777

$207.66

4

Rubber Stopper

708000759

$3.61

5

Seat Corner, Full Moon

510004976

Unavailable

6

Tubing 6 Mm 3000Mm Long

219704425

$13.14

7

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

8

REAR SEAT BASE ASS'Y - Call your local BRP dealership | Includes 6 to 24

510004779

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Foam Support

510004423

$36.12

11

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

12

Pop Rivet 3/16"

293150100

$1.08

13

Not Available As Spare Parts

XXX

Unavailable

13a

Sprocket

510004391

$28.43

13b

LINK PLATE - Call your local BRP dealership

510004393

Unavailable

13c

LINK TUBE - Call your local BRP dealership

510005496

Unavailable

13d

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

Unavailable

14

SPACER - Call your local BRP dealership

510005425

Unavailable

15

STEEL RIVET - Call your local BRP dealership

293150129

Unavailable

16

Rubber Stopper

708000759

$3.61

17

Rear Heated Seat Cover

510004982

Unavailable

18

Rear Seat Foam

510004791

$276.89

19

Black, Dart

414644300

$0.78

20

Backrest Foam

510004782

$129.99

21

BACKREST COVER - Call your local BRP dealership | Blue-Blue Model

510004785

Unavailable

22

Upper Backrest Axle

510004377

$45.35

23

Washer

510004379

$8.95

24

Rubber Shim

510004378

$8.62

25

RH ARM, BLACK - Call your local BRP dealership

510004794

Unavailable

26

LH ARM, BLACK - Call your local BRP dealership

510004796

Unavailable

27

Torx Screw M8 X 25, Scotch Grip

250000283

$1.91

28

Torx Truss Screw M8 X 16

250000746

$2.78

29

SPACER - Call your local BRP dealership

510004966

Unavailable

30

Seat Corner, Full Moon

510004976

Unavailable

31

RH REAR CORNER SEAT - Call your local BRP dealership

510004964

Unavailable

32

LH REAR CORNER SEAT - Call your local BRP dealership

510004965

Unavailable

33

SEAT HARNESS - Call your local BRP dealership

515176649

Unavailable

33a

Male Terminal

515175232

$1.49

33b

Female Terminal

515175231

$4.12

33c

Female Housing, 3 Circuits

515175495

$15.35

33d

Tubing 6 Mm 3000Mm Long

219704425

$13.14

33e

Tubing 10 MM 1000MM Long

219704407

$2.20

33f

Male Terminal Housing, 2 Circuits

515175654

$7.48

33g

PT Female Socket

515176034

Unavailable

33h

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

33j

Not Available As Spare Part - Friction Washer

Unavailable

34

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

35

Housing Support

515175283

$8.43

36

RH Seat Anchor

518325710

$35.35

37

SPACER - Call your local BRP dealership

510005216

Unavailable

38

LH Seat Anchor

518325709

$35.35

39

SEAT STUD - Call your local BRP dealership

510005095

$24.58

40

Flange Screw M6 X 10, Scotch Grip

207561044

$5.89

41

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

42

RH HANDLE ASS'Y - Call your local BRP dealership | Includes 140 to 140,051

510005854

Unavailable

43

Torx Truss Screw M6 X 16

250000721

$1.39

44

Nut Welded, M6

293100003

$6.32

45

Handle Grip

510004449

$10.65

46

RH Air Deflector

510005009

$27.66

47

Heated Element

515176999

$68.43

48

Was 515175506 Tubing

219704426

$136.12

49

Screw M4 X 16

250000725

$2.87

50

Handle Reinforcement

510005011

$18.43

51

Passenger Handle Trim

510006602

$11.71

52

Not Available As Spare Parts

XXX

Unavailable

53

Not Available As Spare Parts

XXX

Unavailable

54

Male Housing, 3 Circuits

515175494

$15.35

55

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

56

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership

250000220

Unavailable

57

HANDLE CLAMP - Call your local BRP dealership

510004565

Unavailable

58

LH HANDLE ASS'Y - Call your local BRP dealership | Includes 150 to 150,051

510005856

Unavailable

59

Torx Truss Screw M6 X 16

250000721

$1.39

60

Nut Welded, M6

293100003

$6.32

61

Handle Grip

510004449

$10.65

62

LH Air Deflector

510005010

$27.66

63

Heated Element

515176999

$68.43

64

Was 515175506 Tubing

219704426

$136.12

65

HOUSING SWITCH - Call your local BRP dealership

510005037

Unavailable

66

Torx Screw K50 X 16

250000720

$1.39

67

Screw M4 X 16

250000725

$2.87

68

Rocker Switch

510004413

$8.57

69

Switch Protector

510004414

$7.37

70

Handle Harness

515176697

$28.43

71

Handle Reinforcement

510005011

$18.43

72

Not Available As Spare Parts

XXX

Unavailable

73

Not Available As Spare Parts

XXX

Unavailable

74

Passenger Handle Trim

510006602

$11.71

75

Not Available As Spare Parts

XXX

Unavailable

76

Not Available As Spare Parts

XXX

Unavailable

77

Male Connector

515176033

$15.35

78

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

79

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership

250000220

Unavailable

80

HANDLE CLAMP - Call your local BRP dealership

510004565

Unavailable

81

VISOR AND LINER DECAL - Call your local BRP dealership

516003612

Unavailable

82

HANDLE LINK - Call your local BRP dealership

510004798

$29.97

83

Stopper Block

510004804

$18.43

84

Lever Lock Ass'y

510004806

$29.97

85

PASSAGER HEATED SEAT HARNESS - Call your local BRP dealership

515177409

Unavailable

86

Visor Connector Harness

515176698

$28.43

87

WIRING HARNESS_HEATED SOLE - Call your local BRP dealership

515177018

$25.35

88

Cap

572103300

$9.65

89

Cap

510004950

$13.06

90

INTENSITY SWITCH DECAL - Call your local BRP dealership

516003809

Unavailable

91

HANDLE AND SEAT DECAL - Call your local BRP dealership

516003613

Unavailable

92

GRIP - Call your local BRP dealership

510004419

Unavailable

93

HANDLE, BLACK - Call your local BRP dealership

510004385

Unavailable

94

Spring

514053643

$6.20

95

Adjustment Pivot

510006338

$20.74

96

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

97

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

98

Flat Washer

224061201

$1.11

99

BUSHING - Call your local BRP dealership

510004425

Unavailable
