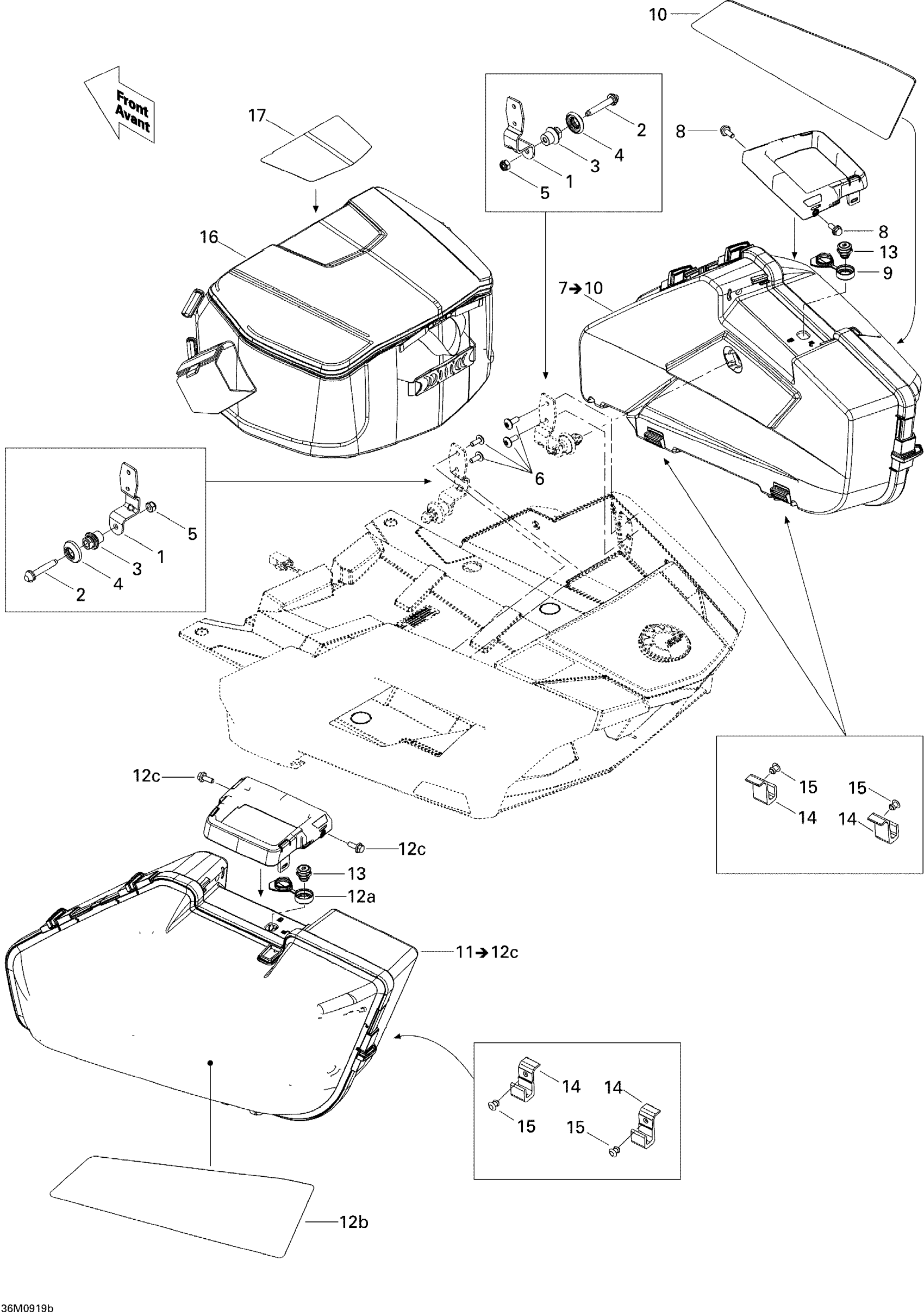

Ski-Doo GTX SE 1200 4-TEC, 2009 Luggage Rack Diagram

#

Description
Price

1

RH Arm Ass'y

511000631

$93.99

2

Torx-Truss Pt K40 X 16

250000759

$2.19

3

Nut Welded, M6

293100003

$9.29

4

LH Arm Ass'y

511000632

Unavailable

5

Torx-Truss Pt K40 X 16

250000759

$2.19

6

Rack Ass'y

511000530

$74.99

7

Panel Nut M6 X 1.0

250100198

$2.19

8

Cover

511000545

$79.99

9

RH Tail Light Ass'y

515176849

$61.99

10

LH Tail Light Ass'y

515176850

$61.99

11

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.49

12

Hex. Flange Screw M6 X 25

207662554

$1.49

13

HARNESS RACK - Call your local BRP dealership

515176634

Unavailable

14

Grommet

517303756

$4.09

15

Radiator Cover

511000861

$53.99

16

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.49

17

Edge Clip

517302785

$1.49

18

WARNING DECAL, SECURITY - Call your local BRP dealership

516004585

Unavailable

19

WARNING DECAL, SECURITY - Call your local BRP dealership

516004603

Unavailable

20

Red RH Rear Reflector

520000731

$16.49

21

Red LH Rear Reflector

520000732

$17.49

22

BRP Logo 68mm

516008739

$16.99

23

CLENCHING DECAL - Call your local BRP dealership

516003035

Unavailable

24

Torx Screw M8 X 16

250000751

$6.29

25

Torx Truss Screw M6 X 16

250000721

$1.69

26

Pop Rivet 3/16"

293150103

$1.49

27

Bulb

520000758

$9.29
