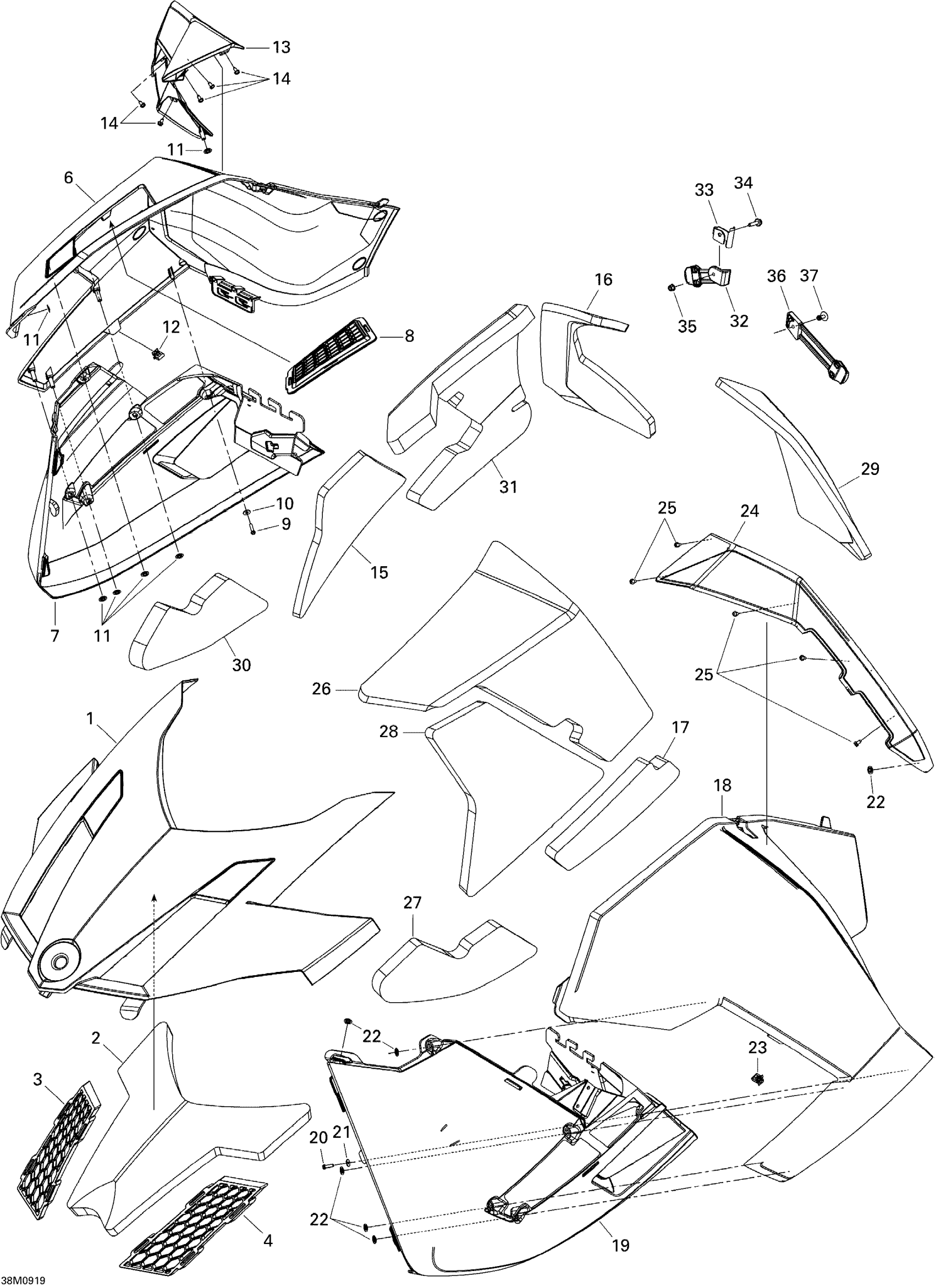

Ski-Doo GTX SE 1200 4-TEC, 2009 09- Hood Diagram

#

Description
Price

1

HOOD - Call your local BRP dealership

517304039

Unavailable

2

Hood Foam

517304893

$28.99

3

RH Hood Grille

517303805

$31.99

4

LH Hood Grille

517303804

$31.99

6

ARGENT RH PANNEL - Call your local BRP dealership

517304052

Unavailable

7

PANEL_BODY LWR R B-160 - Call your local BRP dealership

517304373

Unavailable

8

PANEL GRILL - Call your local BRP dealership

517303801

Unavailable

9

Hex. Flange Screw K40 X 16

241141660

$1.48

10

Flat Washer 4 mm, Stainless

234042600

$1.15

11

Push Nut

732610072

$2.19

12

Edge Clip

517302785

$0.88

13

SILVER RH SIDE WIND DEFLECTOR - Call your local BRP dealership

517303772

Unavailable

14

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

15

CENTRAL FOAM PANEL RH - Call your local BRP dealership

517304894

Unavailable

16

REAR PANEL FOAM RH - Call your local BRP dealership

517304895

Unavailable

17

CENTRAL FOAM PANEL LH - Call your local BRP dealership

517304897

Unavailable

18

SILVER LH PANNEL - Call your local BRP dealership

517304057

Unavailable

19

PANEL_BODY LWR L B-160 - Call your local BRP dealership

517304362

Unavailable

20

Hex. Flange Screw K40 X 16

241141660

$1.48

21

Flat Washer 4 mm, Stainless

234042600

$1.15

22

Push Nut

732610072

$2.19

23

Edge Clip

517302785

$0.88

24

SILVER LH SIDE WIND DEFLECTOR - Call your local BRP dealership

517303771

Unavailable

25

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

26

LH CENTRAL PANEL FOAM - Call your local BRP dealership

517304899

Unavailable

27

LH LOWER PANEL FOAM - Call your local BRP dealership

517304901

Unavailable

28

LH UPPER PANEL FOAM - Call your local BRP dealership

517304902

$28.99

29

LH REAR PANEL FOAM - Call your local BRP dealership

517304904

Unavailable

30

RH LOWER PANEL FOAM - Call your local BRP dealership

517304905

Unavailable

31

RH UPPER PANEL FOAM - Call your local BRP dealership

517304908

Unavailable

32

RH Panel Latch

517303612

$9.99

33

Latch Support

517304221

$9.19

34

Hex.Flange Screw M5 X 20

207652044

$1.90

35

Hex. Flange Elastic Nut M5

233251414

$1.04

36

LH Panel Latch

517303808

$11.49

37

Pop Rivet 3/16”

293150108

$1.19
