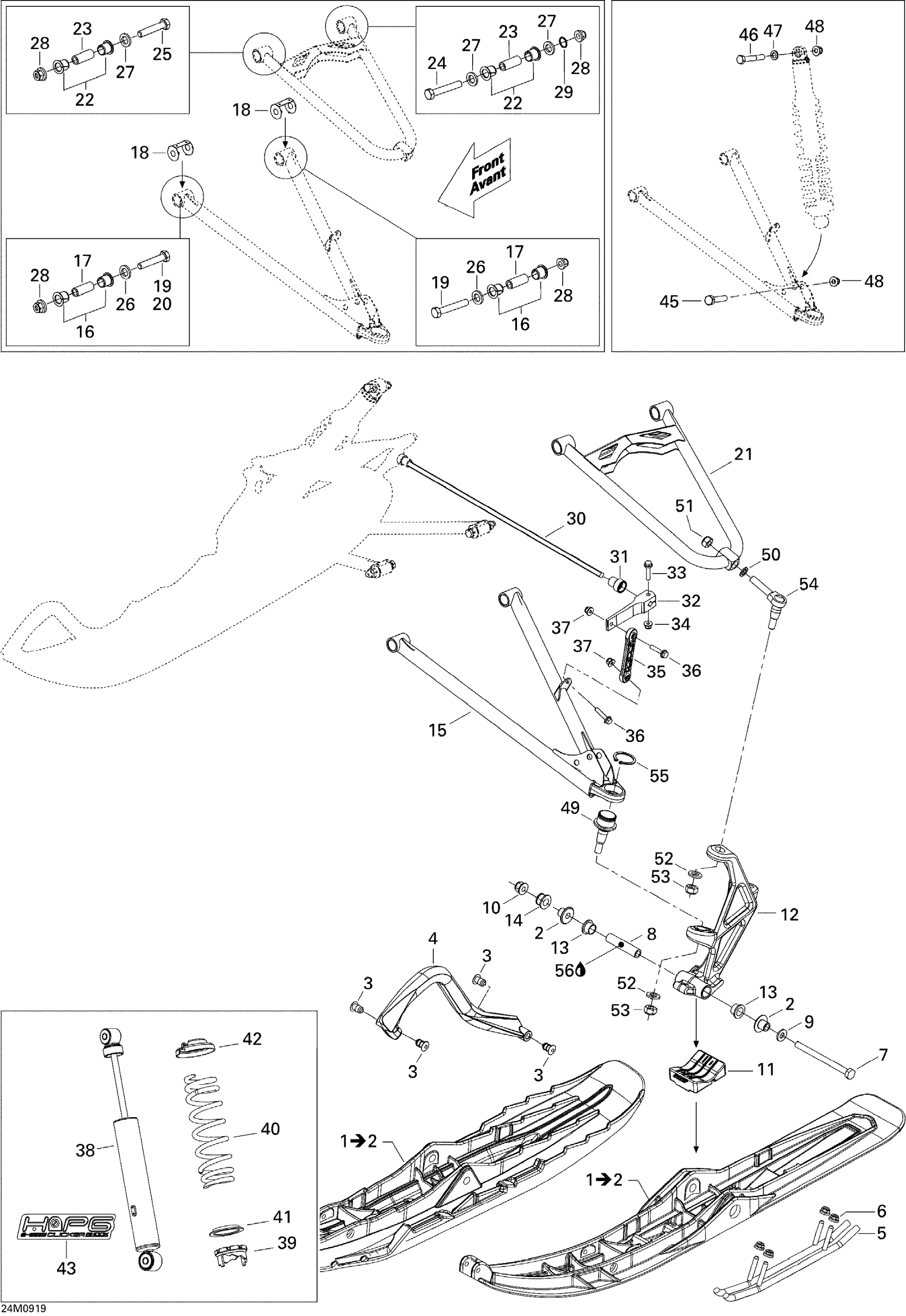

Ski-Doo GTX SE 1200 4-TEC, 2009 07- Front Suspension And Ski Diagram

#

Description
Price

1

Black Pilot Ski Ass'y 6.9 RH

505073056

$179.99

1

Black Pilot Ski Ass'y 6.9 LH

505073055

$179.99

1

Pilot SL Ski Ass'y

505072443

$137.99

2

Ski Bushing

505071781

$16.18

3

Retainer 17mm long

505071812

$5.95

4

Full Moon Handle

505071556

$35.99

5

Round Carbide Runner

860201043

$109.99

5

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

6

Hex. Flange Elastic Nut M8

233281414

$1.47

7

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

8

Spacer

506133300

$23.99

9

Washer

732900049

$0.58

10

Hex. Flange Elastic Nut M10

233201414

$1.58

11

Ski Stopper

505071779

$18.78

12

Clear, LH Ski Leg

505073007

$249.99

12

Clear, RH Ski Leg

505073008

$239.99

13

Leg Bushing

505072690

$12.49

14

Not Available As Spare Parts

XXX

Unavailable

15

FULL MOON RH LOWER ARM - Call your local BRP dealership

505072676

Unavailable

15

FULL MOON LH LOWER ARM - Call your local BRP dealership

505072677

Unavailable

16

Bushing

505072208

$3.28

17

Sleeve

505072209

$17.84

18

Wear Plate

505072634

$6.29

19

Screw Hex. M10 X 70

250001024

$2.11

20

Hex. Screw M10 X 75

250001063

$13.16

21

UPPER ARM - Call your local BRP dealership | LE

505072389

Unavailable

22

Bushing

505072250

$3.28

23

Sleeve

505072143

$9.00

24

Screw Hex. M10 X 60

250001023

$2.11

25

Screw Hex. M10 X 50

250001022

$1.69

26

Washer

503189564

$0.74

27

Washer

505072392

$4.76

28

Hex. Flange Elastic Nut M10

250100165

$0.85

29

O-Ring

505072448

$2.32

30

Stabilisator

505072444

$63.99

31

Bushing

505072445

$7.83

32

Stabilisator Lever

505072446

$44.49

33

Hex. Flange Screw M6 X 30

207663046

$1.69

34

Elastic Flange Nut M6 X 1.0

233261416

$2.11

35

Sway Bar Double Joint Link

505072204

$21.99

36

Hex. Flange Screw M6 X 30

207663046

$1.69

37

Elastic Flange Nut M6 X 1.0

233261416

$2.11

38

Front Shock | Europe Models

505073139

$248.99

39

Adjustment Cam

505073625

$12.99

40

Full Moon Spring | Europe Models

505072518

$67.99

41

Spring Guide

503191872

$2.29

42

Spring Stopper

706200881

$12.99

43

Not Available As Spare Parts

XXX

Unavailable

44

Cap

706200785

$4.69

45

Hex. Screw M10 X 55

207005544

$2.22

46

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

47

Washer

503189564

$0.74

48

Hex. Flange Elastic Nut M10

233201414

$1.58

49

Ball Joint

505073636

$51.99

50

Washer

503189276

$3.28

51

Hex. Elastic Hex. Nut M12

250100089

$0.46

52

Flat Washer 12 mm

234021410

$0.72

53

Hex. Elastic Hex. Nut M12

250100089

$0.46

54

Upper Ball Joint

505072257

$17.58

55

Circlip

293370035

$2.64

56

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
