Description

Price

1

Hex. Screw M8 X 40

207184060

$2.12

2

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.78

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

4

Hex. Screw 10-14 X 7/8”

211000023

$3.34

5

Elastic Stop Nut M6, Brass

232561200

$4.03

7

Flat Washer 10 mm, Stainless

234000600

$1.22

8

Stainless Flat Washer M6

234061600

$0.28

10

Flat Washer 8 mm, Stainless

234082600

$2.27

16

Safety Nut (DESS Switch)

278002963

$3.12

24

Safety Lanyard Ass'y, RFID

278003400

$67.13

24

Safety Lanyard Ass'y, Learning / RFID

278003401

$67.13

26

Battery, 30 Amperes

278001882

$171.95

28

Diagnostic Connector

278002704

$17.88

35

Battery Ground Cable

278003269

$38.78

40

Cable-Starter

278003398

$57.43

43

Throttle Position Sensor

278002283

$104.99

56

LH Throttle Sensor

278002284

$108.18

97

O.T.A.S Actuator

278003537

$38.03

111

O.T.A.S. Sensor Ass'y

278003009

$99.22

112

Battery Support

278003306

$17.13

115

Starter Relay

278003012

$40.27

124

Switch RH Mode/Set

278002602

$115.64

133

LCD Gauge | Model GTI LTD 155

278003378

$1,064.15

144

Not Available As Spare Parts

XXX

Unavailable

147

Switch LH Sport/Eco

278002768

$76.84

163

Clip (double dart)

278002910

$10.30

172

Support

278003048

$20.12

175

Steering Harness Ass'y

278003265

$282.06

189

Main Harness (AS)

278003252

$522.36

201

Tie Wrap 368 mm

293750008

$0.97

208

Tie Rap 300mm

293750053

$1.99

210

Battery Bolt Kit

250000282

$3.39

217

Tie-Rap 180 mm

414115200

$0.10

222

Tie Rap, 533 mm

293750047

$1.84

227

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

232

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

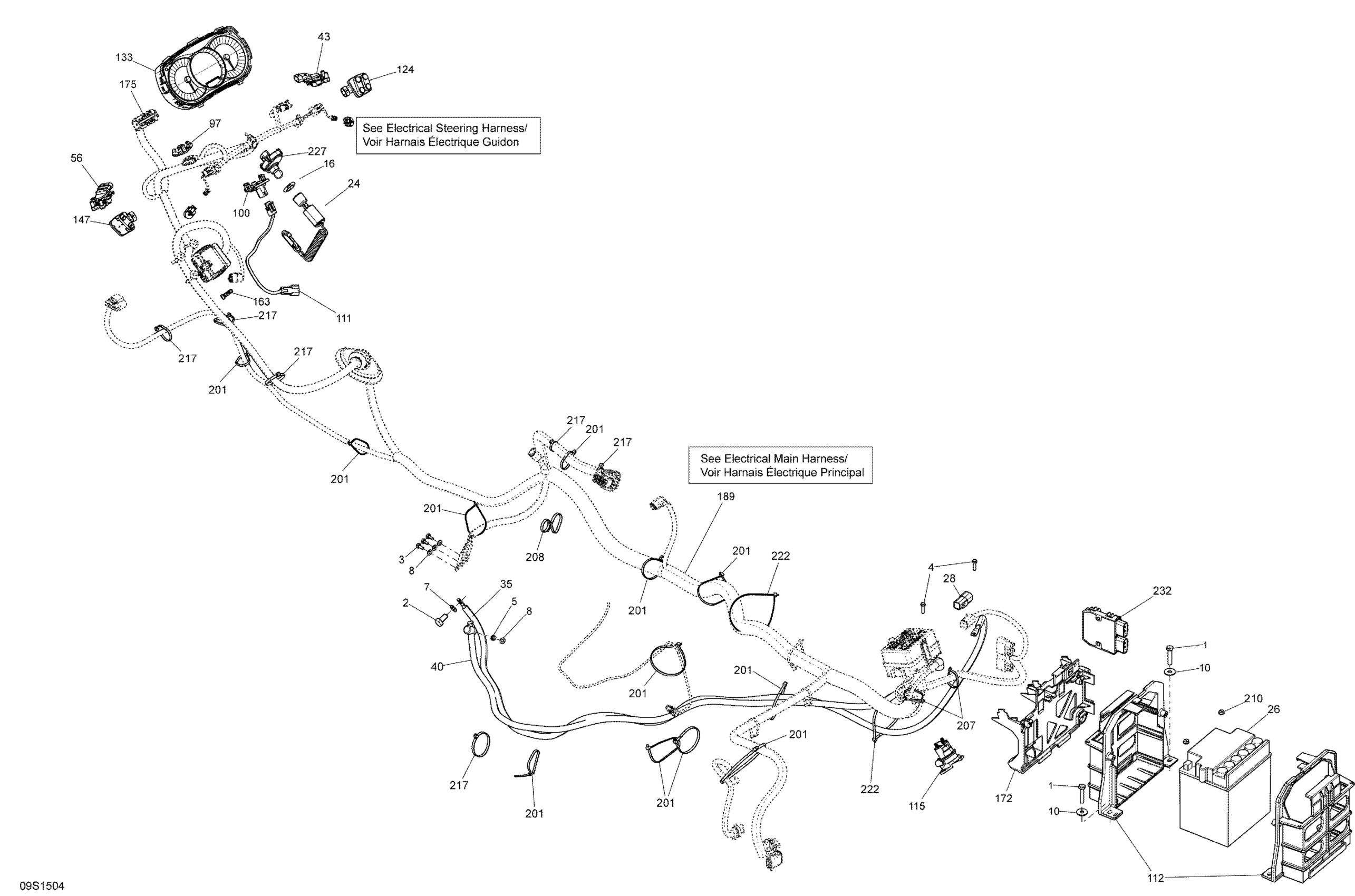

Sea-doo GTX S 155, 2015 Electrical System _09S1504 Diagram
