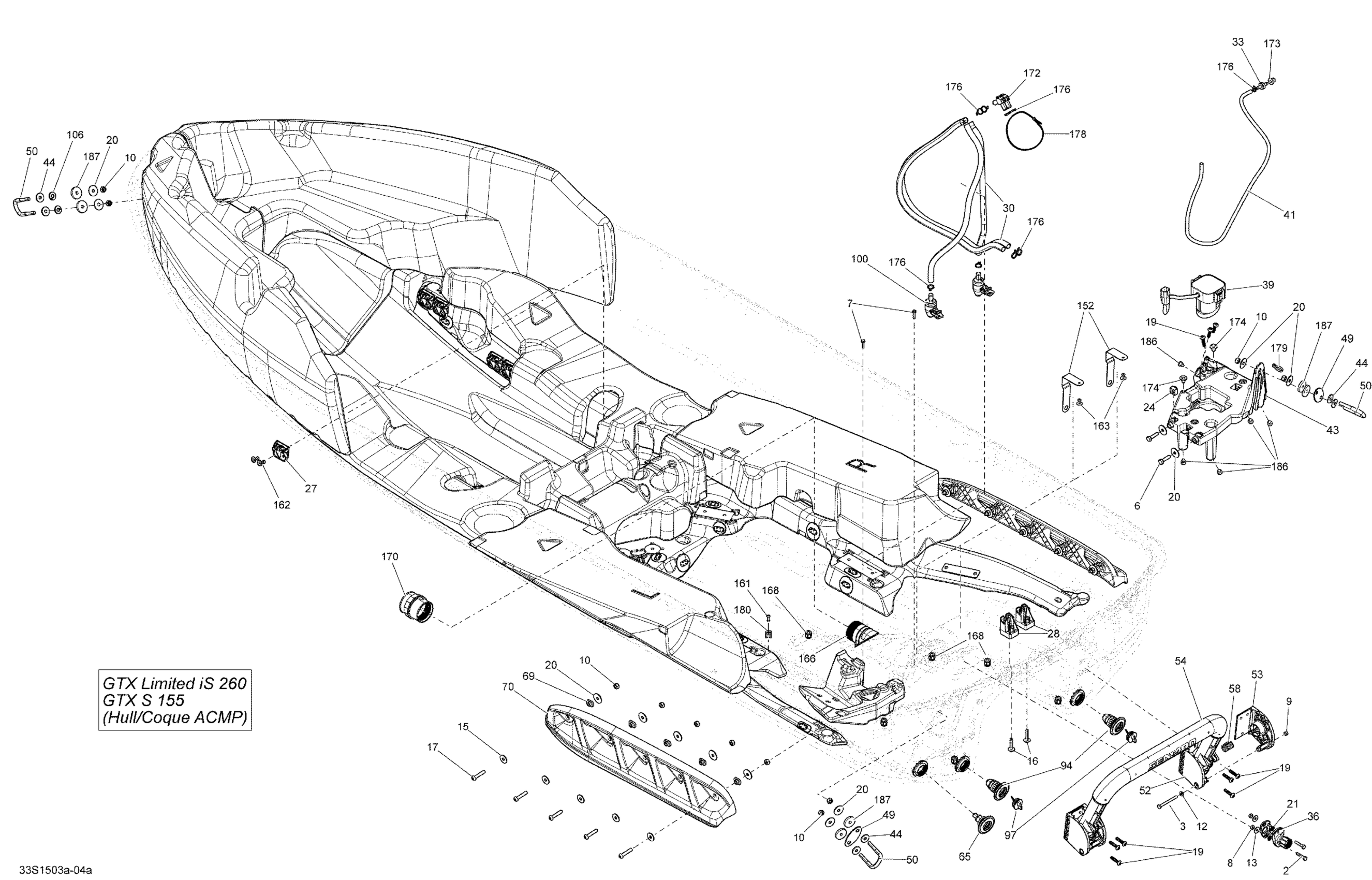

Sea-doo GTX S 155, 2015 Hull ACMP_33S1504a Diagram

#

Description
Price

2

Hex. Screw M6 X 30

207063060

$1.89

3

Hex. Screw M6 x 65 | Produced Before February 01 2010

207066560

$2.11

4

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

6

Hex. Screw M8 X 30

207183060

$1.58

7

Hex. Screw 10-14 X 7/8”

211000023

$3.59

8

Elastic Stop Nut M6, Brass

232561200

$4.23

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

Hex. Elastic Nut M8 Brass

232581200

$2.22

12

Stainless Flat Washer M6

234061600

$0.33

13

Flat Washer M6, Stainless

234062600

$0.77

15

Flat Washer 8 mm, Stainless

234082600

$2.43

16

Not Available As Spare Parts

XXX

Unavailable

17

Torx Screw M8 X 40, Stainless

250000452

$3.91

19

Screw Torx M6.81 X 30

250001007

$2.54

20

Flat Washer 8 mm, Stainless

250200175

$3.06

21

Sealing Washer

250200114

$4.44

24

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

27

Strap Retaining

270000933

$6.99

28

Not Available As Spare Parts

XXX

Unavailable

30

Was 275500008 Hose 12 mm

219704356

$20.49

33

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

36

Cable Adaptor Ass'y

277001881

$19.99

39

Not Available As Spare Parts

XXX

Unavailable

41

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

43

BATTERY BASE ASS'Y - Call your local BRP dealership | Includes 70 to 70c

278003273

Unavailable

44

Flat Washer

279000336

$11.57

49

Black, Finition Plate

291001386

$10.99

50

U-Clamp

292000933

$59.49

52

A Section Support

292001509

$59.99

53

B Section Support

292001510

$59.99

54

Overmolded Bar

292001204

$159.99

58

Spring

292001259

$27.99

65

Drain Neck Ass'y

292001317

$27.99

65a

Plastic Nut

292001825

$9.79

69

Spacer Sponson

292001349

$10.99

70

RH Sponson

292001878

$93.99

70

LH Sponson

292001877

$93.99

94

Drain Ass'y

292001580

$16.49

94a

Plastic Nut

292001825

$9.79

97

Plug Ass'y | Includes 300f to 300f2

292002022

$14.49

100

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$25.99

106

Flat Washer 8 mm, Nylon

292001663

$1.47

152

Not Available As Spare Parts

XXX

Unavailable

161

Pop Rivet 3/16"

293150043

$2.09

162

Pop Rivet 3/16"

293150123

$4.29

163

Not Available As Spare Parts

XXX

Unavailable

166

Outer Hull Insert

293450309

$25.99

168

Not Available As Spare Part - Friction Washer

Unavailable

170

HULL INSERT - Call your local BRP dealership

293450355

$18.99

172

Fitting Elbow 90°

293710152

$18.49

173

Grommet

293720029

$1.59

174

Mount Dart

293730040

$1.04

176

Tie Wrap 94 mm | 4X4

293750001

$1.03

178

Tie Wrap 368 mm

293750008

$1.04

179

Tie-Rap 180 mm

414115200

$0.11

180

Tie Rap Mount

293750026

$3.09

186

Rubber Bumper

293830005

$8.09

187

Rubber Washer

293830037

$2.68
