- GTX S 155, 2015
08- Suspension _43S1504

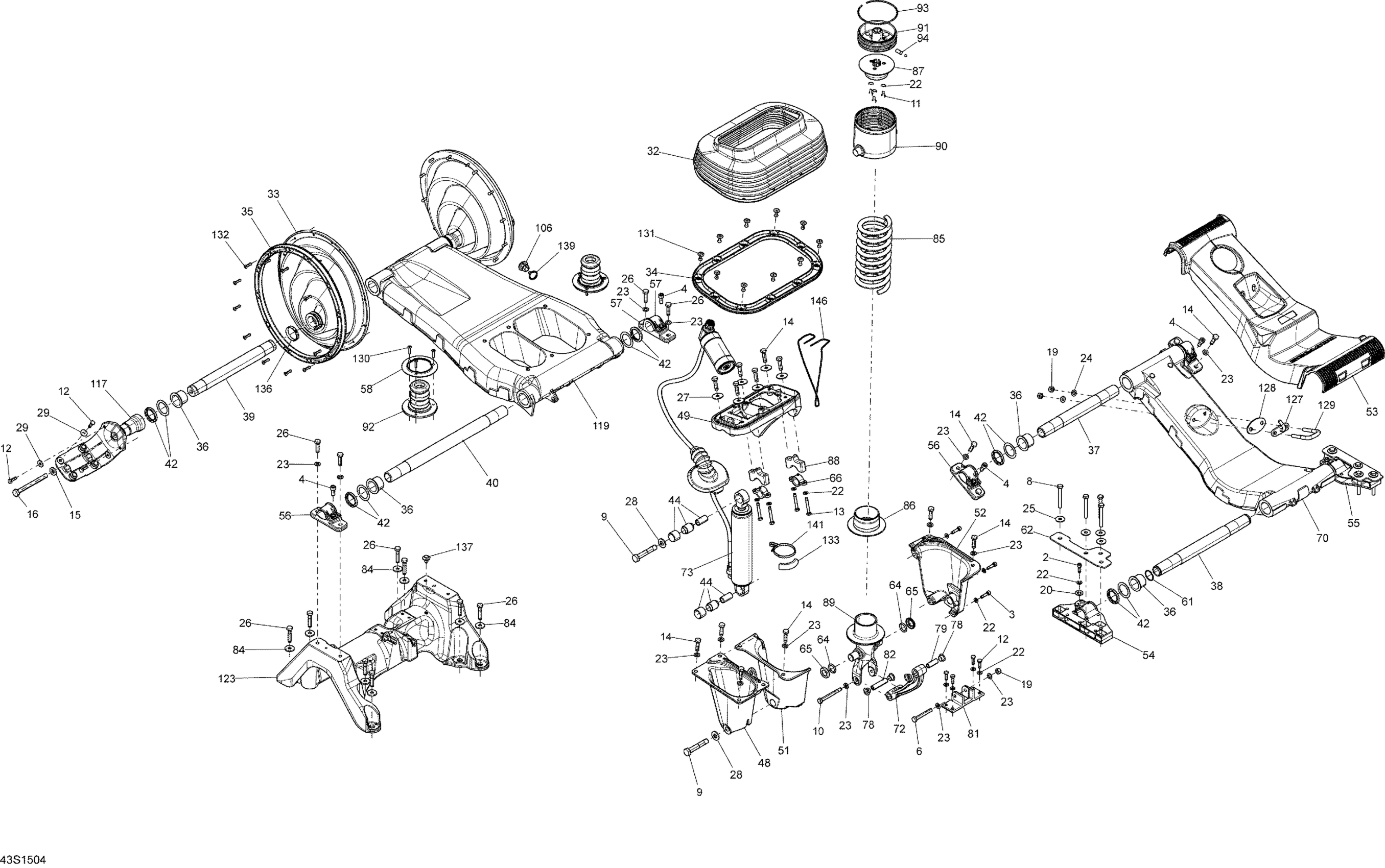

Sea-doo GTX S 155, 2015 08- Suspension _43S1504 Diagram
#
2
Socket Head Screw M6 X 20, Scotch Grip
205562060
$0.76
3
Socket Head Screw M6 X 25, Scotch Grip
205562560
$2.11
4
Socket Head Screw M8 X 20, Scotch Grip
205582060
$4.44
6
HEX. SCREW M8 X 60 - Call your local BRP dealership
207086060
$1.90
8
Hex. Screw M8 X 65
207186560
$4.44
9
HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership
207227060
Unavailable
10
HEX. SCREW M8 X 75, SCOTCH GRIP - Call your local BRP dealership
207287560
Unavailable
11
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
12
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
13
Hex. Screw M6 x 45, Scotch Grip
207364560
$1.89
14
Hex. Screw M8 X 30, Scotch Grip
207383060
$1.90
15
Flat Washer
211200051
$1.68
16
Hex. Screw M10 X 110, Scotch Grip
230201060
$14.21
19
Hex. Elastic Nut M8 Brass
232581200
$2.22
20
Flat Washer 10 mm, Stainless
234001600
$1.15
22
Stainless Flat Washer M6
234061600
$0.33
23
Flat Washer M8, Stainless
234080600
$1.48
24
Stainless, Flat Washer 8 mm
234081600
$0.55
25
Flat Washer 8 mm, Stainless
234082600
$2.43
26
HEX. SCREW M8 X 40, SOTCH GRIP - Call your local BRP dealership
250000729
Unavailable
27
Flat Washer 8 mm, Stainless
250200175
$3.06
28
FLAT WASHER M12 - Call your local BRP dealership
250200053
Unavailable
29
Flat Washer M6
250200115
$3.28
32
CENTRAL BELLOWS - Call your local BRP dealership
279000008
Unavailable
33
Lateral Bellows
279000009
$80.99
34
Retaining Plate
279000010
$19.99
35
Retaining Ring
279000011
$18.99
36
Bushing
279000019
$24.99
37
PIVOT TUBE - Call your local BRP dealership
279000031
Unavailable
38
PIVOT TUBE - Call your local BRP dealership
279000033
Unavailable
39
PIVOT TUBE - Call your local BRP dealership
279000038
Unavailable
40
PIVOT TUBE - Call your local BRP dealership
279000041
Unavailable
42
RUBBER BUMPER - Call your local BRP dealership
279000047
Unavailable
44
Bushing
279000051
$77.99
48
SHOCK LOWER HOLDER - Call your local BRP dealership
279000055
Unavailable
49
Shock Upper Holder
279000057
$199.99
51
LH SPRING HOLDER - Call your local BRP dealership
279000070
Unavailable
52
RH SPRING HOLDER - Call your local BRP dealership
279000074
Unavailable
53
REAR ARM MOULDING - Call your local BRP dealership
279000080
Unavailable
54
LH REAR BASE - Call your local BRP dealership
279000083
Unavailable
55
RH REAR BASE - Call your local BRP dealership
279000087
Unavailable
56
LH CLAMP - Call your local BRP dealership
279000089
Unavailable
57
RH CLAMP - Call your local BRP dealership
279000092
Unavailable
58
Retaining Ring
279000115
$14.49
61
RETAINING RING - Call your local BRP dealership
279000100
Unavailable
62
RETAINING PLATE - Call your local BRP dealership
279000114
$14.99
63
BUSHING - Call your local BRP dealership
279000103
Unavailable
64
O-RING - Call your local BRP dealership
279000104
Unavailable
65
BUSHING - Call your local BRP dealership
279000105
Unavailable
66
CLAMP - Call your local BRP dealership
279000106
Unavailable
70
REAR ARM ASS'Y - Call your local BRP dealership | Includes 1001 to 1001c
279000001
Unavailable
72
SPRING ALIGNMENT ARM - Call your local BRP dealership
279000157
Unavailable
73
SHOCK - Call your local BRP dealership
279000218
Unavailable
78
BUSHING - Call your local BRP dealership
279000137
$8.69
79
SPACER - Call your local BRP dealership
279000138
Unavailable
81
BRACKET - Call your local BRP dealership
279000155
Unavailable
82
SPACER - Call your local BRP dealership
279000153
Unavailable
84
Flat Washer
279000336
$11.57
85
PAINTED SPRING - Call your local BRP dealership
279000219
Unavailable
86
LOWER SPRING PROTECTOR - Call your local BRP dealership
279000182
Unavailable
87
Upper Spring Protector
279000183
$10.49
88
E-COAT SPACER - Call your local BRP dealership
279000206
Unavailable
89
LOWER SPRING PROTECTOR - Call your local BRP dealership
279000188
Unavailable
90
Upper Spring Holder
279000189
$294.99
91
UPPER SPRING HOLDER - Call your local BRP dealership
279000191
Unavailable
92
RUBBER BUMPER - Call your local BRP dealership
279000193
Unavailable
93
Retaining Ring
279000198
$14.75
94
PLUNGER - Call your local BRP dealership
279000205
Unavailable
117
FOOT REST - Call your local BRP dealership
279000306
Unavailable
119
FRONT ARM ASS'Y - Call your local BRP dealership | Includes 41 to 41d
279000308
Unavailable
123
FRONT ARM BASE - Call your local BRP dealership
279000316
Unavailable
127
Hook | Package LTD
291002351
$69.99
128
Black, Finition Plate
291001386
$10.99
129
U-Clamp
292000933
$59.49
130
Pop Rivet 3/16"
293150005
$0.52
131
Pop Rivet 3/16"
293150123
$4.29
132
Pop Rivet 3/16"
293150176
$2.39
136
Oetiker Gear Clamp
293650199
$9.69
137
Mount Dart
293730040
$1.04
146
Retaining Cable
708200118
$10.49
