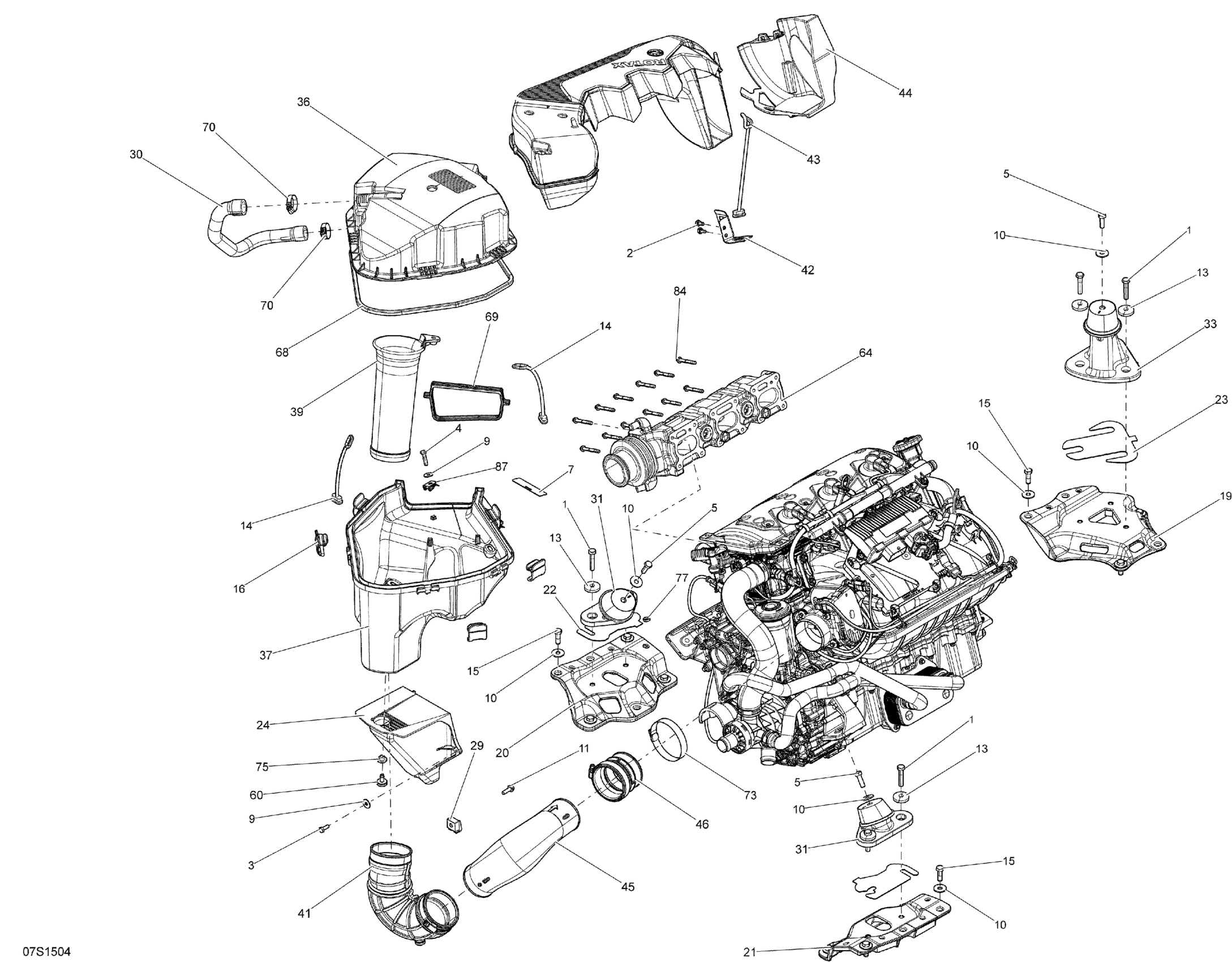

Sea-doo GTX S 155, 2015 Engine _07S1504 Diagram

#

Description
Price

1

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

1

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

2

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

3

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

4

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.47

5

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

7

Air Silencer Notice Decal

219903177

Unavailable

9

Flat Washer M6, Stainless

234062600

$0.77

10

Flat Washer 8 mm, Stainless

234082600

$2.43

11

Hex. Flange Screw M6.81 x 20

243162060

$3.72

13

Cone Washer

250200018

$5.61

14

Strap

269502109

Unavailable

15

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.91

16

Clip

269501718

$15.89

19

SPACER - Call your local BRP dealership

270000767

Unavailable

20

SPACER - Call your local BRP dealership

270000763

Unavailable

21

Spacer

270000766

$78.49

22

Shim 1.3 mm

270000762

$12.99

23

Shim 1.3 mm

270000770

$16.49

24

AIR BOX SUPPORT - Call your local BRP dealership

270000791

Unavailable

29

HOLDING STRAP - Call your local BRP dealership

270000946

Unavailable

29

Strap Anchor

270000854

$7.76

30

FORMED HOSE - Call your local BRP dealership

270000948

$57.99

36

Air Silencer Upper

273000249

$61.99

37

AIR SILENCER LOW - Call your local BRP dealership

273000250

Unavailable

39

Intake Hose

273000359

$48.99

41

CONNECTOR HOSE - Call your local BRP dealership

273000257

Unavailable

43

Strap

273000344

$15.99

45

HOSE INTAKE - Call your local BRP dealership This part replaces 273000276.

273000327

Unavailable

46

Intake Fitting

273000277

$28.99

60

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

64

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

68

NEOPRENE SEAL - Call your local BRP dealership

293200123

Unavailable

69

SEAL - Call your local BRP dealership

293250190

$15.49

70

Tridon Gear Clamp

293650051

$4.19

73

Tridon Clamp

293650179

$11.49

75

Wire Grommet

293720107

Unavailable

77

Tie Wrap 142 mm

293750002

$1.25

84

Torx Flange Screw M6 X 45

420641198

$4.12

87

Panel Nut M6 X 1

420942108

$14.28
