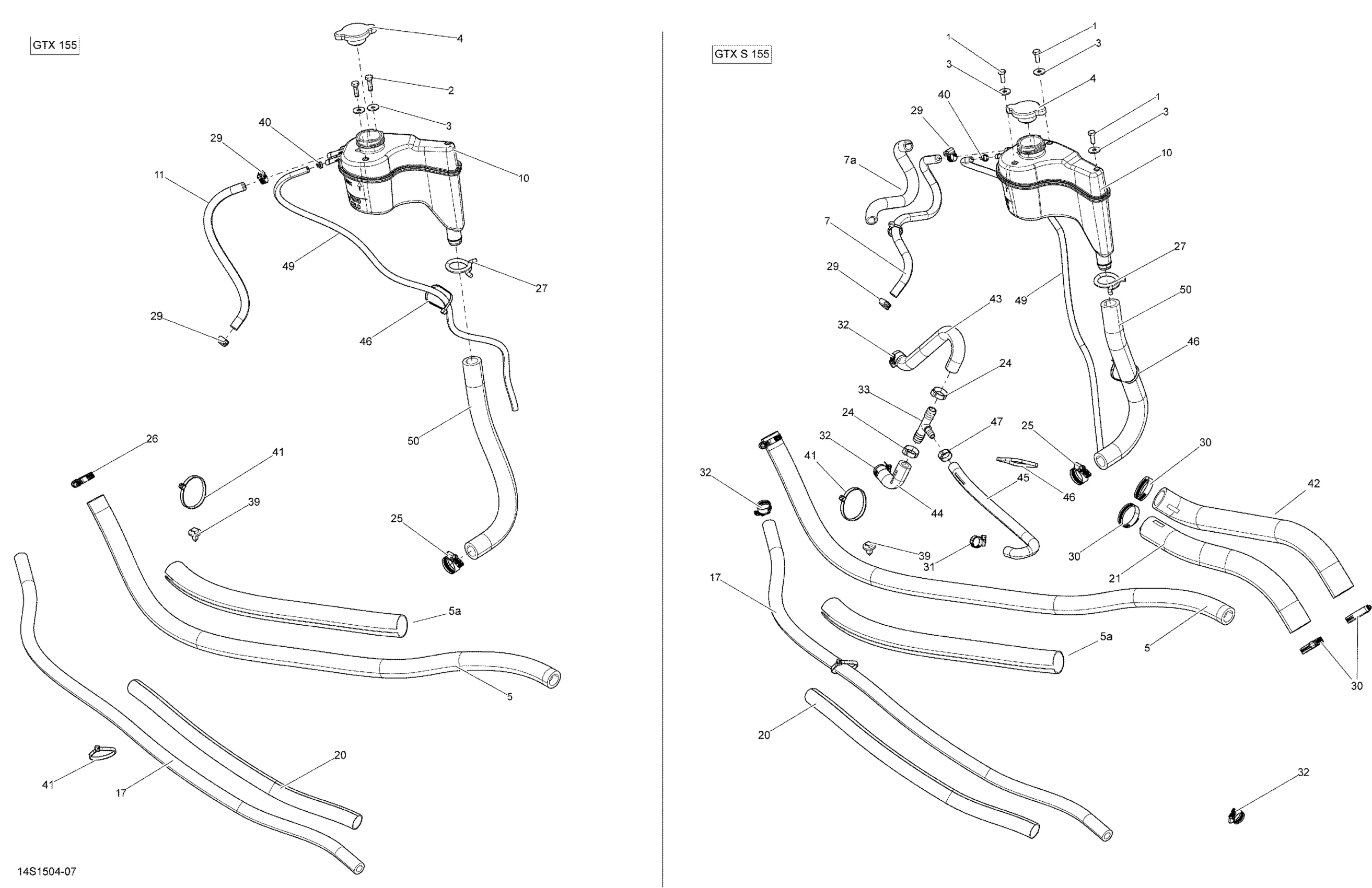

Sea-doo GTX S 155, 2015 Cooling System _14S1504 Diagram

#

Description
Price

1

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

2

Not Available As Spare Parts

XXX

Unavailable

3

Flat Washer M6, Stainless

234062600

$0.64

4

Pressure Cap | Includes 720 to 720a

276000100

$20.77

5

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

5a

Tubing 25 MM 1000MM Long

219704402

$12.69

7

Was 275500549 Hose 1/4"

219704357

$183.82

7a

Was 409901800 Tubing (13 mm)

219704400

$9.40

10

Coolant Tank

276000265

$102.67

11

Not Available As Spare Parts

XXX

Unavailable

17

Was 276000001 Hose 12.5 mm

219704394

$42.87

20

Was 515175319 Tubing 22 mm

219704423

$11.84

21

Radiator Hose

276000241

$26.62

24

Oetiker Clamp

293650012

$4.94

25

Tridon Gear Clamp

293650019

$4.81

26

Tridon Gear Clamp

293650051

$3.61

27

Spring Clamp

293650115

$2.46

29

Tridon Gear Clamp

293650170

$1.74

30

Tridon Gear Clamp

293650185

$10.91

31

Tridon Gear Clamp

293650171

$2.46

32

Tridon Gear Clamp

293650172

$2.68

33

T-Fitting

293710116

$14.27

39

Mount Dart

293730040

$0.86

40

Tie Wrap 94 mm | 4X4

293750001

$0.83

41

Tie Wrap 368 mm

293750008

$0.85

42

Radiator Hose This part replaces 276000240.

276000491

$40.27

43

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$15.57

44

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$15.57

45

Formed Hose | Without Catalyst

276000246

$14.92

46

Tie-Rap 180 mm

414115200

$0.09

47

Oetiker Clamp | Europe

293650030

$4.32

49

Polyurethane Hose 10000Mm Long

219704410

$46.12

50

Hose 19.0Mm. 2000Mm Long

219704361

$50.74
