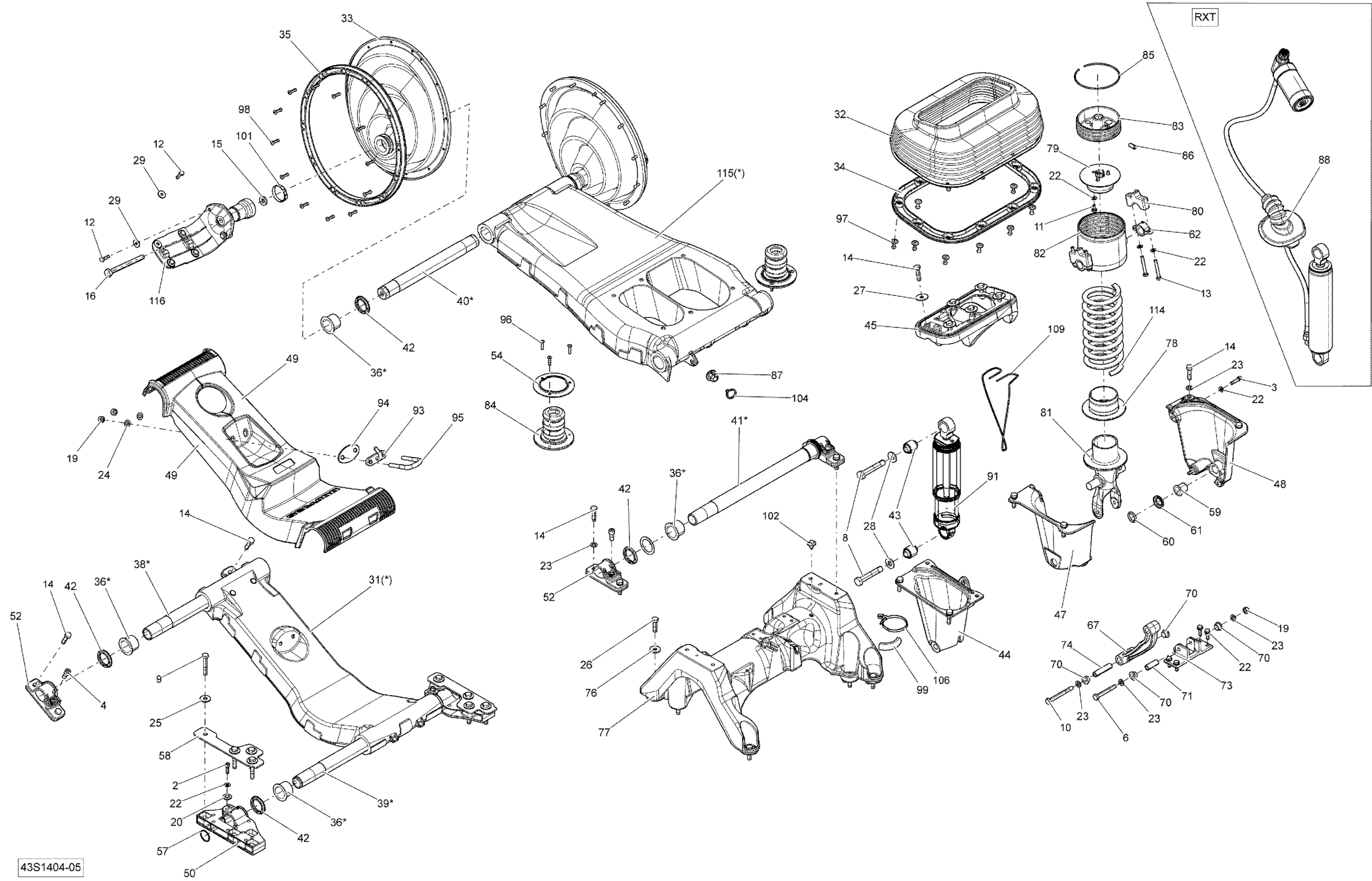

Sea-doo GTX S 155, 2014 Suspension _43S1404 Diagram

#

Description
Price

2

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

3

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

4

Socket Head Screw M8 X 20, Scotch Grip

205582060

$4.44

6

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

$1.90

8

HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership

207227060

Unavailable

9

Hex. Screw M8 X 50, Scotch Grip

207285060

$2.11

10

HEX. SCREW M8 X 75, SCOTCH GRIP - Call your local BRP dealership

207287560

Unavailable

11

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

12

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

13

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.89

14

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

15

Flat Washer

211200051

$1.68

16

Hex. Screw M10 X 110, Scotch Grip

230201060

$14.21

19

Hex. Elastic Nut M8 Brass

232581200

$2.22

20

Flat Washer 10 mm, Stainless

234001600

$1.15

22

Stainless Flat Washer M6

234061600

$0.33

23

Flat Washer M8, Stainless

234080600

$1.48

24

Stainless, Flat Washer 8 mm

234081600

$0.55

25

Flat Washer 8 mm, Stainless

234082600

$2.43

26

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.77

27

Flat Washer 8 mm, Stainless

250200175

$3.06

28

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

29

Flat Washer M6

250200115

$3.28

31

REAR ARM ASS'Y - Call your local BRP dealership | Includes 1001 to 1001c

279000001

Unavailable

32

CENTRAL BELLOWS - Call your local BRP dealership

279000008

Unavailable

33

Lateral Bellows

279000009

$80.99

34

Retaining Plate

279000010

$19.99

35

Retaining Ring

279000011

$18.99

36

Bushing

279000019

$24.99

38

PIVOT TUBE - Call your local BRP dealership

279000031

Unavailable

39

PIVOT TUBE - Call your local BRP dealership

279000033

Unavailable

40

PIVOT TUBE - Call your local BRP dealership

279000038

Unavailable

41

PIVOT TUBE - Call your local BRP dealership

279000041

Unavailable

42

RUBBER BUMPER - Call your local BRP dealership

279000047

Unavailable

43

Bushing

279000051

$77.99

44

SHOCK LOWER HOLDER - Call your local BRP dealership

279000055

Unavailable

45

Shock Upper Holder

279000057

$199.99

47

LH SPRING HOLDER - Call your local BRP dealership

279000070

Unavailable

48

RH SPRING HOLDER - Call your local BRP dealership

279000074

Unavailable

49

REAR ARM MOULDING - Call your local BRP dealership

279000080

Unavailable

50

LH REAR BASE - Call your local BRP dealership

279000083

Unavailable

50

RH REAR BASE - Call your local BRP dealership

279000087

Unavailable

52

LH CLAMP - Call your local BRP dealership

279000089

Unavailable

52

RH CLAMP - Call your local BRP dealership

279000092

Unavailable

54

Retaining Ring

279000115

$14.49

57

RETAINING RING - Call your local BRP dealership

279000100

Unavailable

58

RETAINING PLATE - Call your local BRP dealership

279000114

$14.99

59

BUSHING - Call your local BRP dealership

279000103

Unavailable

60

O-RING - Call your local BRP dealership

279000104

Unavailable

61

BUSHING - Call your local BRP dealership

279000105

Unavailable

62

CLAMP - Call your local BRP dealership

279000106

Unavailable

67

SPRING ALIGNMENT ARM - Call your local BRP dealership

279000157

Unavailable

70

BUSHING - Call your local BRP dealership

279000137

$8.69

71

SPACER - Call your local BRP dealership

279000138

Unavailable

73

BRACKET - Call your local BRP dealership

279000155

Unavailable

74

SPACER - Call your local BRP dealership

279000153

Unavailable

76

Flat Washer

279000336

$11.57

77

FRONT ARM BASE - Call your local BRP dealership

279000167

Unavailable

78

LOWER SPRING PROTECTOR - Call your local BRP dealership

279000182

Unavailable

79

Upper Spring Protector

279000183

$10.49

80

E-COAT SPACER - Call your local BRP dealership

279000206

Unavailable

81

LOWER SPRING PROTECTOR - Call your local BRP dealership

279000188

Unavailable

82

Upper Spring Holder

279000189

$294.99

83

UPPER SPRING HOLDER - Call your local BRP dealership

279000191

Unavailable

84

RUBBER BUMPER - Call your local BRP dealership

279000193

Unavailable

85

Retaining Ring

279000198

$14.75

86

PLUNGER - Call your local BRP dealership

279000205

Unavailable

87

Not Available As Spare Parts

XXX

Unavailable

88

Not Available As Spare Parts

XXX

Unavailable

91

SHOCK - Call your local BRP dealership

279000218

Unavailable

93

Hook | Package LTD

291002351

$69.99

94

Black, Finition Plate

291001386

$10.99

95

U-Clamp

292000933

$59.49

96

Pop Rivet 3/16"

293150005

$0.52

97

Pop Rivet 3/16"

293150123

$4.29

98

Pop Rivet 3/16"

293150176

$2.39

99

Not Available As Spare Parts

XXX

Unavailable

101

Oetiker Gear Clamp

293650199

$9.69

102

Mount Dart

293730040

$1.04

104

Not Available As Spare Parts

XXX

Unavailable

106

Not Available As Spare Parts

XXX

Unavailable

109

Retaining Cable

708200118

$10.49

114

PAINTED SPRING - Call your local BRP dealership

279000219

Unavailable

115

FRONT ARM ASS'Y - Call your local BRP dealership | Includes 41 to 41d

279000308

Unavailable

116

FOOT REST - Call your local BRP dealership

279000306

Unavailable
