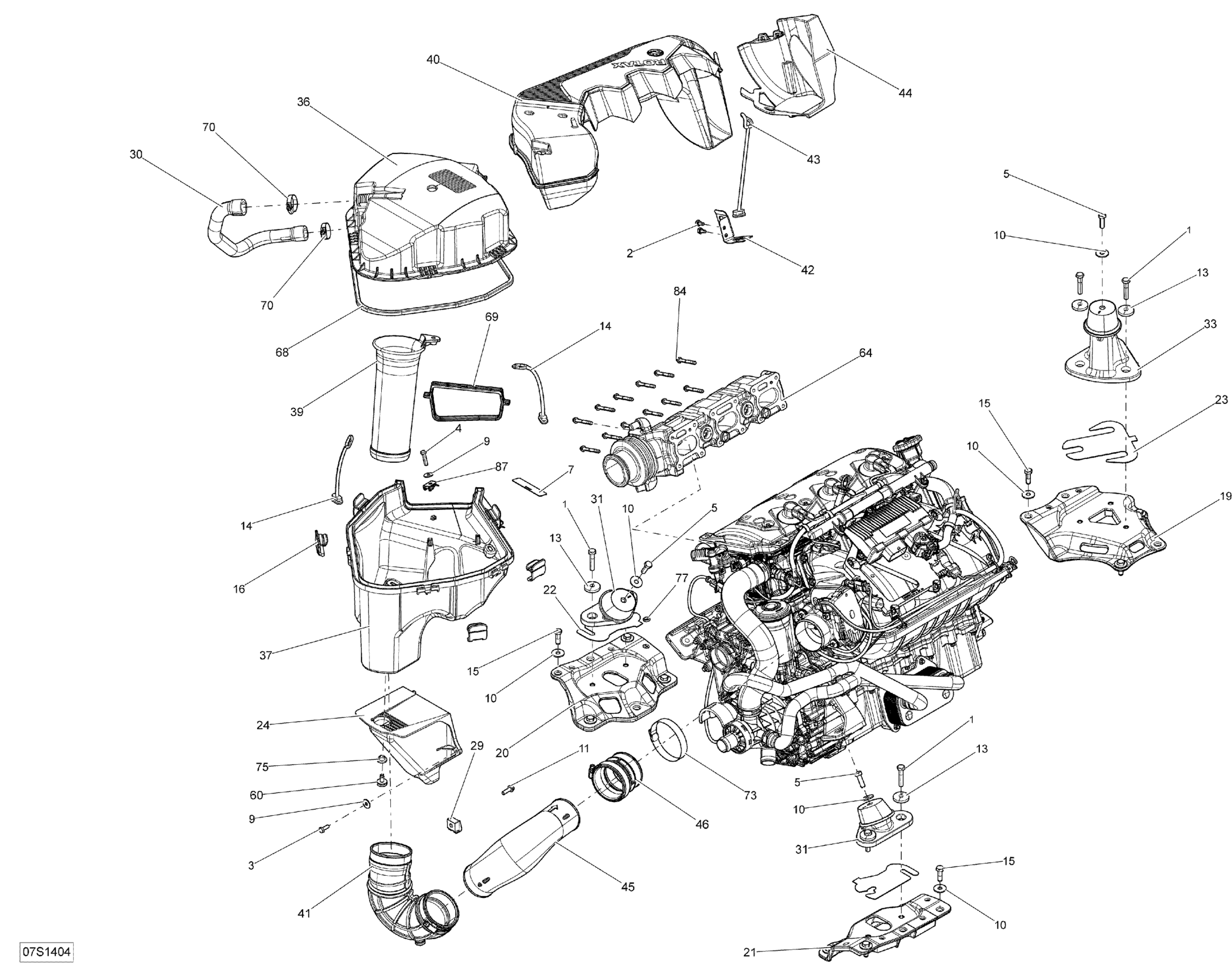

Sea-doo GTX S 155, 2014 Engine _07S1404 Diagram

#

Description
Price

1

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

2

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

3

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.04

4

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.40

5

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

7

Air Silencer Notice Decal

219903177

Unavailable

9

Flat Washer M6, Stainless

234062600

$0.73

10

Flat Washer 8 mm, Stainless

234082600

$2.27

11

Hex. Flange Screw M6.81 x 20

243162060

$3.79

13

Cone Washer

250200018

$5.33

14

Strap

269501299

$17.13

15

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.73

16

Clip

269501718

$14.90

19

SPACER - Call your local BRP dealership

270000767

Unavailable

20

SPACER - Call your local BRP dealership

270000763

Unavailable

21

Spacer

270000766

$73.10

22

Shim 1.3 mm

270000762

$10.37

23

Shim 1.3 mm

270000770

$14.76

24

AIR BOX SUPPORT - Call your local BRP dealership

270000791

Unavailable

29

Strap Anchor

270000854

$6.09

30

Formed Hose

270000807

$51.46

31

Engine Support Ass'y

270001081

$96.99

33

Rubber Mount

270000886

$113.40

36

Air Silencer Upper

273000249

$55.19

37

AIR SILENCER LOW - Call your local BRP dealership

273000250

Unavailable

39

Intake Hose

273000359

$44.00

40

INTAKE TUBE - Call your local BRP dealership

273000253

Unavailable

41

CONNECTOR HOSE - Call your local BRP dealership

273000257

Unavailable

42

AIR BOX BRACKET - Call your local BRP dealership

273000260

Unavailable

43

Strap

273000261

$14.45

44

DEFLECTOR - Call your local BRP dealership

273000271

Unavailable

45

HOSE INTAKE - Call your local BRP dealership This part replaces 273000276.

273000327

Unavailable

46

Intake Fitting

273000277

$26.09

60

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

64

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$748.48

68

NEOPRENE SEAL - Call your local BRP dealership

293200123

Unavailable

69

SEAL - Call your local BRP dealership

293250190

$13.70

70

Tridon Gear Clamp

293650051

$4.15

73

Tridon Clamp

293650179

$10.12

75

GROMMET - Call your local BRP dealership

293720064

Unavailable

77

Tie Wrap 142 mm

293750002

$1.01

84

Torx Flange Screw M6 X 45

420641198

$3.88

87

Panel Nut M6 X 1

420942108

$13.18
