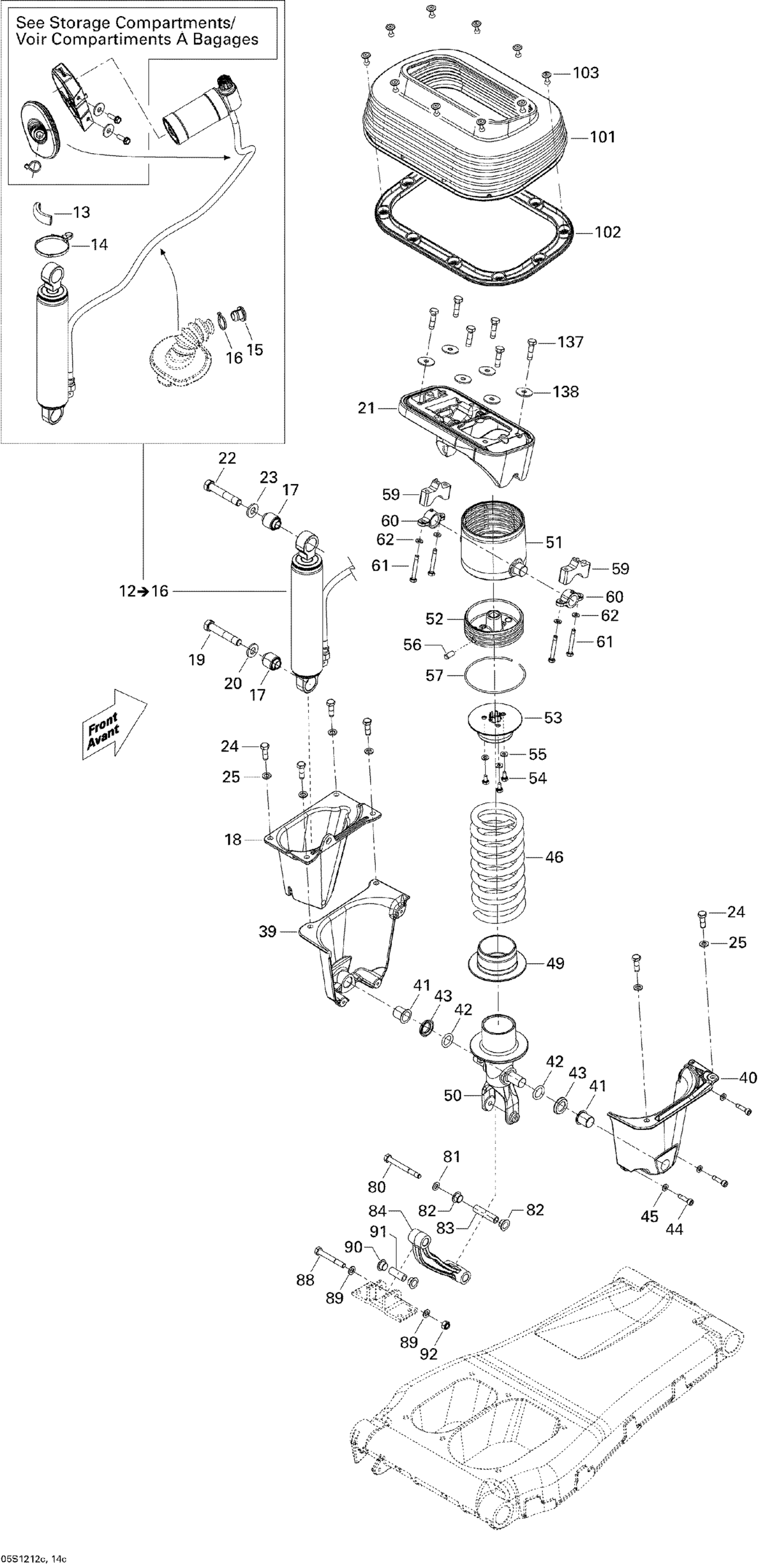

Sea-doo GTX S 155, 2012 Seat Suspension 3 Diagram

#

Description
Price

12

SHOCK - Call your local BRP dealership

279000218

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

Not Available As Spare Parts

XXX

Unavailable

15

Not Available As Spare Parts

XXX

Unavailable

16

Not Available As Spare Parts

XXX

Unavailable

17

Bushing

279000051

$77.99

18

SHOCK LOWER HOLDER - Call your local BRP dealership

279000055

Unavailable

19

HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership

207227060

Unavailable

20

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

21

Shock Upper Holder

279000057

$199.99

22

HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership

207227060

Unavailable

23

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

24

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

25

Flat Washer M8, Stainless

234080600

$1.48

39

LH SPRING HOLDER - Call your local BRP dealership

279000070

Unavailable

40

RH SPRING HOLDER - Call your local BRP dealership

279000074

Unavailable

41

BUSHING - Call your local BRP dealership

279000103

Unavailable

42

O-RING - Call your local BRP dealership

279000104

Unavailable

43

BUSHING - Call your local BRP dealership

279000105

Unavailable

44

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

45

Stainless Flat Washer M6

234061600

$0.33

46

PAINTED SPRING - Call your local BRP dealership

279000219

Unavailable

49

LOWER SPRING PROTECTOR - Call your local BRP dealership

279000182

Unavailable

50

LOWER SPRING PROTECTOR - Call your local BRP dealership

279000188

Unavailable

51

Upper Spring Holder

279000189

$294.99

52

UPPER SPRING HOLDER - Call your local BRP dealership

279000191

Unavailable

53

Upper Spring Protector

279000183

$10.49

54

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

55

Stainless Flat Washer M6

234061600

$0.33

56

PLUNGER - Call your local BRP dealership

279000205

Unavailable

57

Retaining Ring

279000198

$14.75

59

E-COAT SPACER - Call your local BRP dealership

279000206

Unavailable

60

CLAMP - Call your local BRP dealership

279000106

Unavailable

61

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.89

62

Stainless Flat Washer M6

234061600

$0.33

80

HEX. SCREW M8 X 75, SCOTCH GRIP - Call your local BRP dealership

207287560

Unavailable

81

Flat Washer M8, Stainless

234080600

$1.48

82

BUSHING - Call your local BRP dealership

279000137

$8.69

83

SPACER - Call your local BRP dealership

279000138

Unavailable

84

SPRING ALIGNMENT ARM - Call your local BRP dealership

279000157

Unavailable

88

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

$1.90

89

Flat Washer M8, Stainless

234080600

$1.48

90

BUSHING - Call your local BRP dealership

279000137

$8.69

91

SPACER - Call your local BRP dealership

279000153

Unavailable

92

Hex. Elastic Nut M8 Brass

232581200

$2.22

101

CENTRAL BELLOWS - Call your local BRP dealership

279000008

Unavailable

102

Retaining Plate

279000010

$19.99

103

Pop Rivet 3/16"

293150123

$4.29

137

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

138

Flat Washer 8 mm, Stainless

250200175

$3.06
