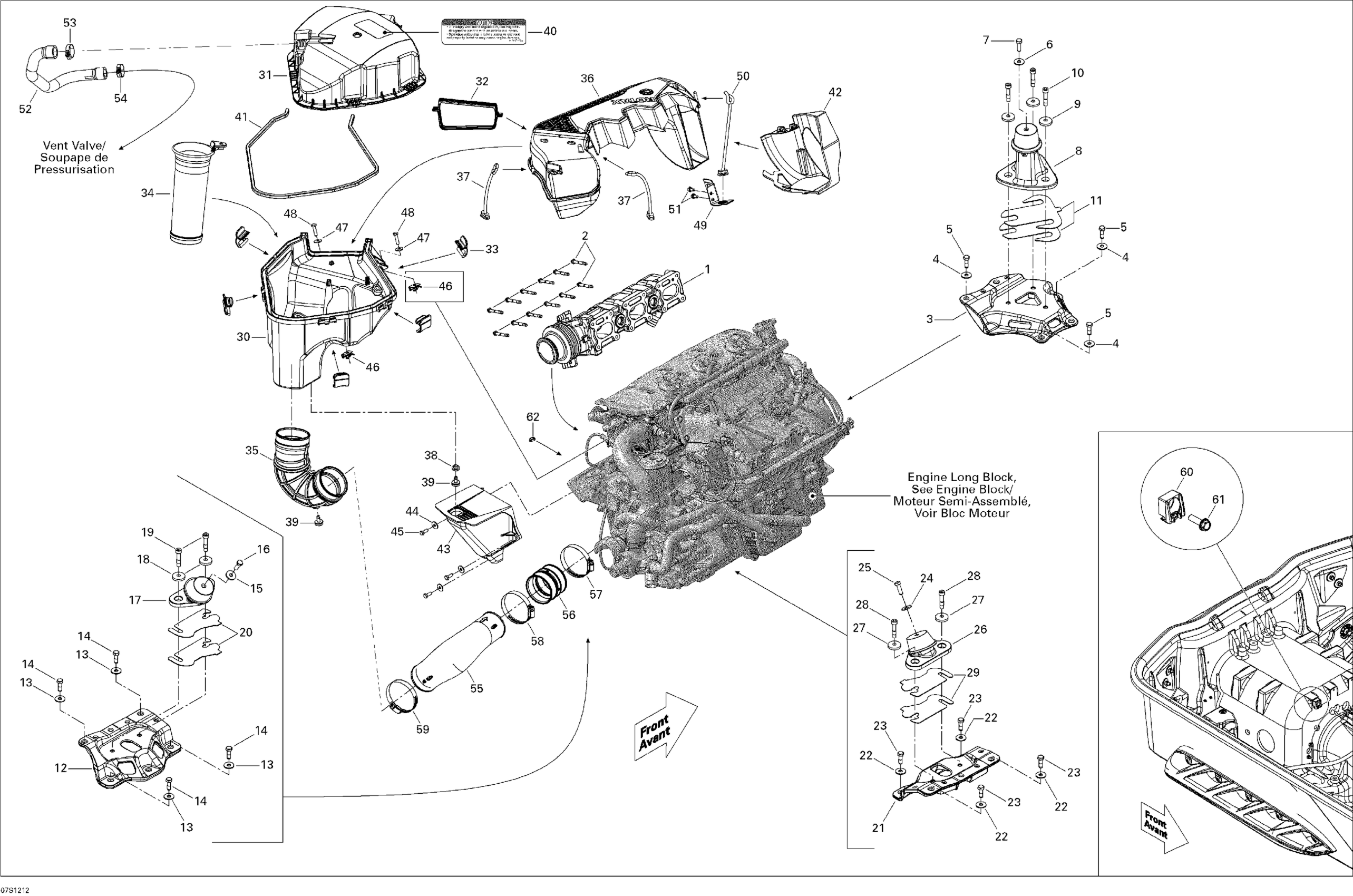

Sea-doo GTX S 155, 2012 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

2

Torx Flange Screw M6 X 45

420641198

$4.12

3

SPACER - Call your local BRP dealership

270000767

Unavailable

4

Flat Washer 8 mm, Stainless

234082600

$2.43

5

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.91

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

8

Rubber Mount

270000886

$129.99

9

Cone Washer

250200018

$5.61

10

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.91

11

Shim 1.3 mm

270000770

$16.49

12

SPACER - Call your local BRP dealership

270000763

Unavailable

13

Flat Washer 8 mm, Stainless

234082600

$2.43

14

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.91

15

Flat Washer 8 mm, Stainless

234082600

$2.43

16

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

17

Engine Support Ass'y

270001081

$109.99

18

Cone Washer

250200018

$5.61

19

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.91

20

Shim 1.3 mm

270000762

$12.99

21

Spacer

270000766

$78.49

22

Flat Washer 8 mm, Stainless

234082600

$2.43

23

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.91

24

Flat Washer 8 mm, Stainless

234082600

$2.43

25

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

26

Engine Support Ass'y

270001081

$109.99

27

Cone Washer

250200018

$5.61

28

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.91

29

Shim 1.3 mm

270000762

$12.99

30

AIR SILENCER LOW - Call your local BRP dealership

273000250

Unavailable

31

Air Silencer Upper

273000249

$61.99

32

SEAL - Call your local BRP dealership

293250190

$15.49

33

Clip

269501718

$15.89

34

Intake Hose

273000359

$48.99

35

CONNECTOR HOSE - Call your local BRP dealership

273000257

Unavailable

36

INTAKE TUBE - Call your local BRP dealership

273000253

Unavailable

37

Strap

269501299

$19.49

38

GROMMET - Call your local BRP dealership

293720064

Unavailable

39

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

40

Air Silencer Notice Decal

219903177

Unavailable

41

NEOPRENE SEAL - Call your local BRP dealership

293200123

Unavailable

42

DEFLECTOR - Call your local BRP dealership

273000271

Unavailable

43

AIR BOX SUPPORT - Call your local BRP dealership

270000791

Unavailable

44

Flat Washer M6, Stainless

234062600

$0.77

45

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

46

Panel Nut M6 X 1

420942108

$14.28

47

Flat Washer M6, Stainless

234062600

$0.77

48

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.47

49

AIR BOX BRACKET - Call your local BRP dealership

273000260

Unavailable

50

Strap

273000261

$16.49

51

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

52

Formed Hose

270000807

$65.49

53

Tridon Gear Clamp

293650051

$4.19

54

Tridon Gear Clamp

293650051

$4.19

55

HOSE INTAKE - Call your local BRP dealership This part replaces 273000276.

273000327

Unavailable

56

Intake Fitting

273000277

$28.99

57

Tridon Clamp

293650179

$11.49

58

Tridon Clamp

293650179

$11.49

59

Tridon Clamp

293650179

$11.49

60

Strap Anchor

270000854

$7.76

61

Hex. Flange Screw M6.81 x 20

243162060

$3.72

62

Tie Wrap 142 mm

293750002

$1.25
