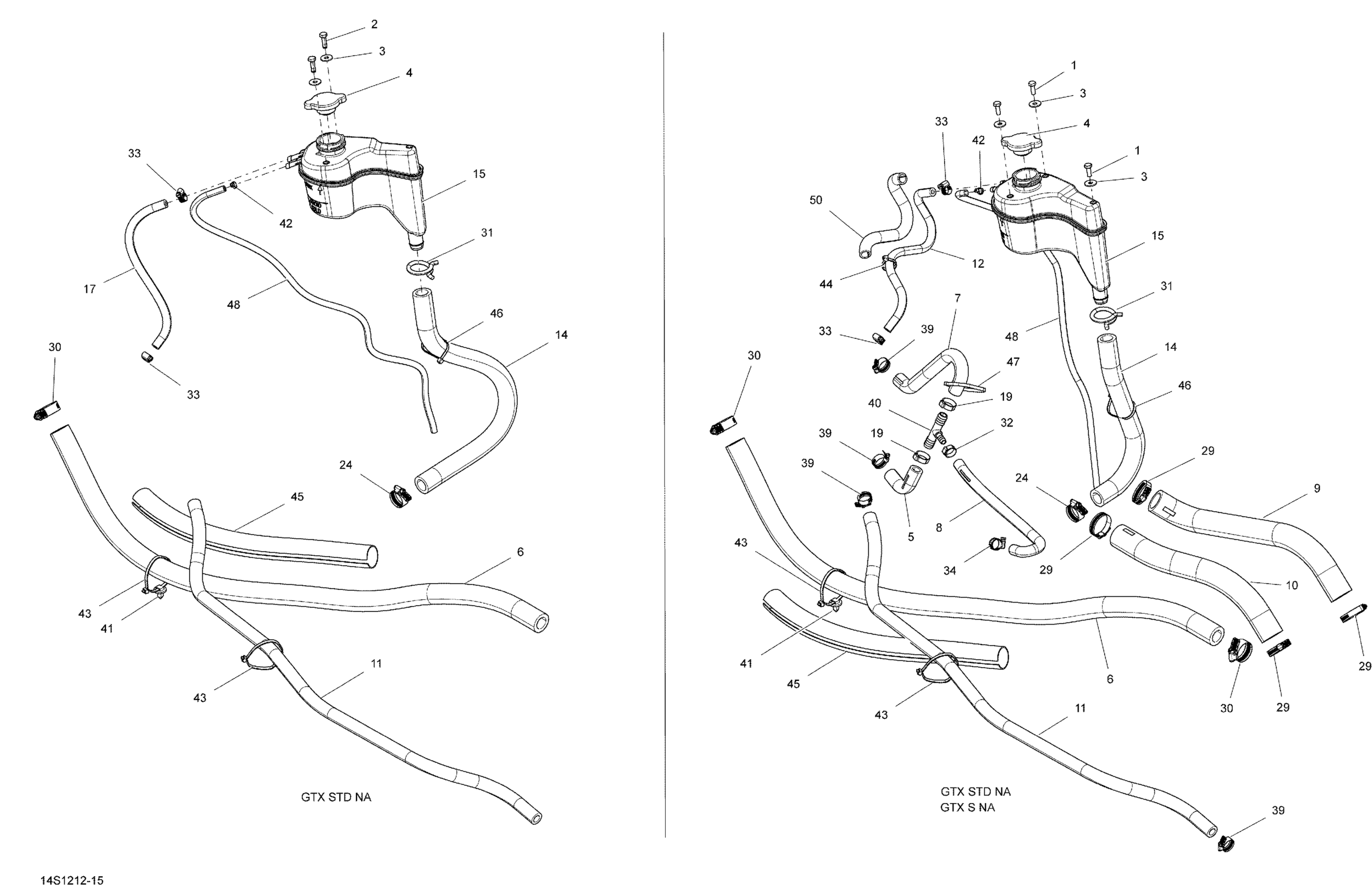

Sea-doo GTX S 155, 2012 Cooling System Diagram

#

Description
Price

1

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

2

Not Available As Spare Parts

XXX

Unavailable

3

Flat Washer M6, Stainless

234062600

$0.77

3

Not Available As Spare Parts

XXX

Unavailable

4

Pressure Cap | Includes 720 to 720a

276000100

$25.99

5

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

6

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

7

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

8

Formed Hose | Without Catalyst

276000246

$19.49

9

Radiator Hose This part replaces 276000240.

276000491

$49.99

10

Radiator Hose

276000241

$32.99

11

Was 276000001 Hose 12.5 mm

219704394

$51.99

12

Was 275500549 Hose 1/4"

219704357

$194.99

14

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

15

Coolant Tank

276000265

$134.99

17

Was 275500549 Hose 1/4"

219704357

$194.99

19

Oetiker Clamp

293650012

$7.49

24

Tridon Gear Clamp

293650019

$5.82

29

Tridon Gear Clamp

293650185

$13.99

30

Tridon Gear Clamp

293650172

$3.09

31

Spring Clamp

293650115

$3.09

32

Oetiker Clamp | Europe

293650030

$5.19

33

Tridon Gear Clamp

293650170

$1.99

34

Tridon Gear Clamp

293650171

$3.09

39

Tridon Gear Clamp

293650172

$3.09

40

T-Fitting

293710116

$17.62

41

Mount Dart

293730040

$1.04

42

Tie Wrap 94 mm | 4X4

293750001

$1.03

43

Tie Wrap 368 mm

293750008

$1.04

44

Tie Wrap 94 mm | 4X4

293750001

$1.03

45

Tubing 25 MM 1000MM Long

219704402

$15.99

46

Tie-Rap 180 mm

414115200

$0.11

47

Tie Wrap 368 mm

293750008

$1.04

48

Polyurethane Hose 10000Mm Long

219704410

$56.99

50

Was 409901800 Tubing (13 mm)

219704400

$14.49
