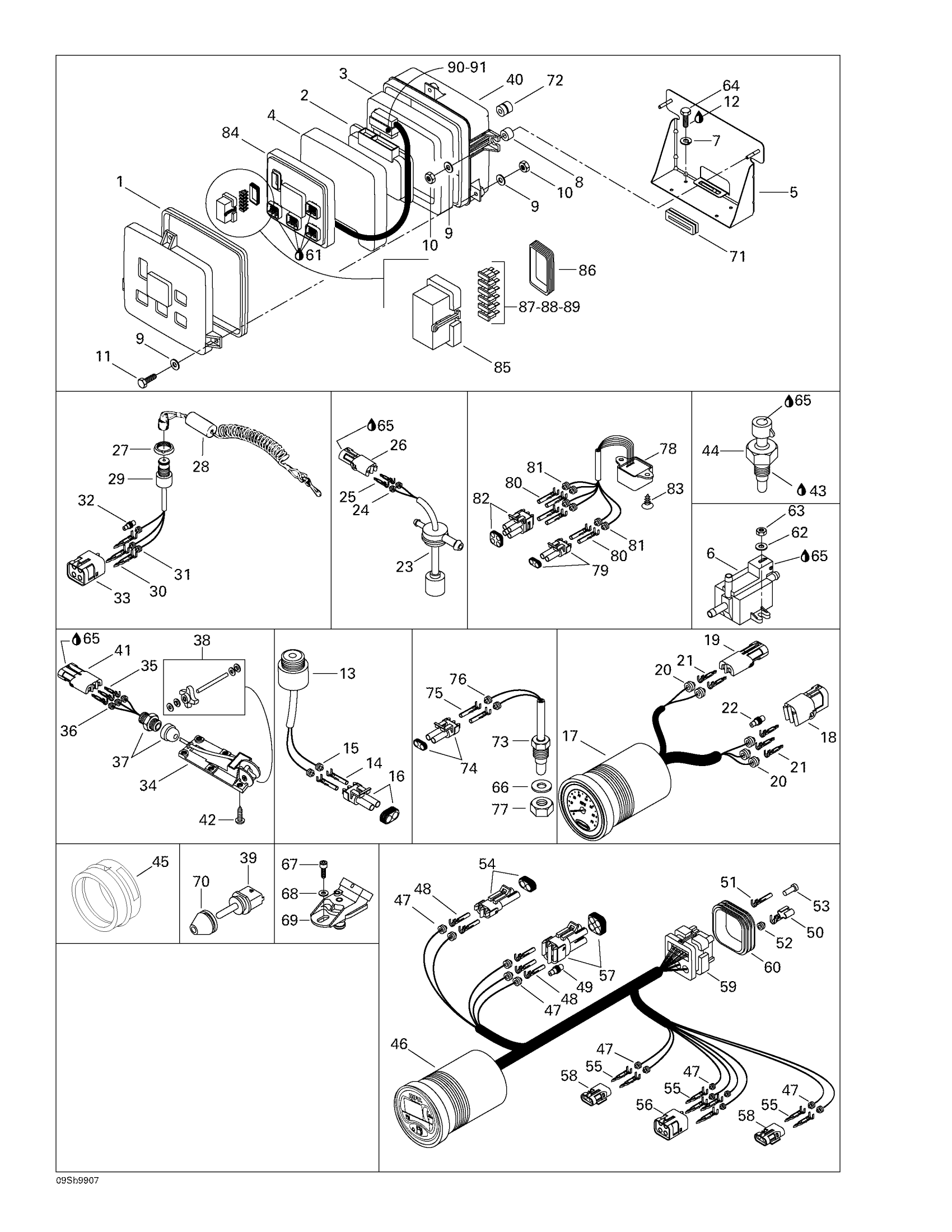

Sea-doo GTX RFI, 5886/5887, 1999 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

Gasket

293250063

Unavailable

2

Electronic Module

278001409

Unavailable

3

Lower Foam

278000941

Unavailable

4

Top Foam

278001100

Unavailable

5

Box Support Ass'y

278001139

Unavailable

6

Solenoid Valve

270600005

$116.49

7

Helical Lock Washer M5

234151601

$1.15

8

SPACER - Call your local BRP dealership

272000074

Unavailable

9

Flat Washer M6, Stainless

234062600

$0.77

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

Hex. Screw M6 X 30

207063060

$1.89

12

Loctite 271, 10 ml

293800005

$26.99

13

Buzzer Ass'y | Includes 11 - 14.

278000978

Unavailable

14

Female Terminal

278000223

$3.19

15

Wire Seal

278000218

$4.39

16

Male Connector, 2 Circuits

278000220

$15.49

17

Speedometer Ass'y | Includes 79 - 84.

278001435

Unavailable

18

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

19

Female Housing, 2 Circuits

278000217

$9.59

20

Wire Seal

278001065

$7.69

21

Male Terminal | XT Models

278000222

$3.19

22

Wire Seal

278000216

$3.19

23

OIL LEVER SENSOR ASS'Y - Call your local BRP dealership

278001401

Unavailable

24

Wire Seal

278000218

$4.39

25

Male Terminal | XT Models

278000222

$3.19

26

Female Housing, 2 Circuits

278000217

$9.59

27

Safety Nut (DESS Switch)

278002963

$3.28

28

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

29

Safety Switch | Includes 15 - 19.

278000977

Unavailable

30

Male Terminal | XT Models

278000222

$3.19

31

Wire Seal

278000218

$4.39

32

Wire Seal

278000216

$3.19

33

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

34

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

35

Male Terminal | XT Models

278000222

$3.19

36

Wire Seal

278000218

$4.39

37

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

38

Paddle Wheel Kit

295500108

Unavailable

39

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

40

Electronic Box Base

278000938

Unavailable

41

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

42

Phillips Screw M5 x 12

250000319

$1.39

43

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

44

Temperature Sensor

278002895

$39.99

45

Gauge Support

293720047

Unavailable

46

LCD Info Gauge | Includes 46 - 60.

278001434

Unavailable

47

Wire Seal

278001065

$7.69

48

Female Terminal

278000223

$3.19

49

Wire Seal

278000216

$3.19

50

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

51

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

52

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

53

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

54

Male Connector, 2 Circuits

278000220

$15.49

55

Male Terminal | XT Models

278000222

$3.19

56

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

57

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

58

Female Housing, 2 Circuits

278000217

$9.59

59

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

60

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

61

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

62

Stainless Flat Washer M6

234061600

$0.33

63

Hex. Elastic Nut M5 | X

232551600

$1.15

64

Hex. Screw 10-14 X 7/8”

211000023

$3.59

65

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

66

Flat Washer 10 mm, Stainless

234000600

$1.46

67

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.58

68

Stainless Flat Washer M6

234061600

$0.33

69

Pressure Sensor (5591/5592)

270600001

Unavailable

70

INSULATOR - Call your local BRP dealership

278001054

Unavailable

71

Insulator

278001259

Unavailable

72

UPPER INSULATOR - Call your local BRP dealership

278001260

Unavailable

73

Temperature Sensor | Includes 55 - 58.

278000851

Unavailable

74

Male Connector, 2 Circuits

278000220

$15.49

75

Female Terminal

278000223

$3.19

76

Wire Seal

278000218

$4.39

77

NUT-HEX.PLASTIC M10 X 1.5 - Call your local BRP dealership

250100004

Unavailable

78

Compass | GTI RFI LE, Includes 38 to 42

278001243

Unavailable

79

Male Connector, 2 Circuits

278000220

$15.49

80

Female Terminal

278000223

$3.19

81

Wire Seal

278000218

$4.39

82

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

83

Black, Dart

293730016

$9.97

84

Electronic Module | Includes 61 - 68.

278001356

Unavailable

85

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

86

Cover Seal

278001070

Unavailable

87

Fuse, 5 Amperes | CE

278000344

$3.28

88

Fuse, 10 Amperes | North America

278001197

$2.21

89

Fuse, 15 Amperes

278000343

$3.28

90

Female Terminal

278000998

$4.39

91

Wire Seal

278000999

$3.19
