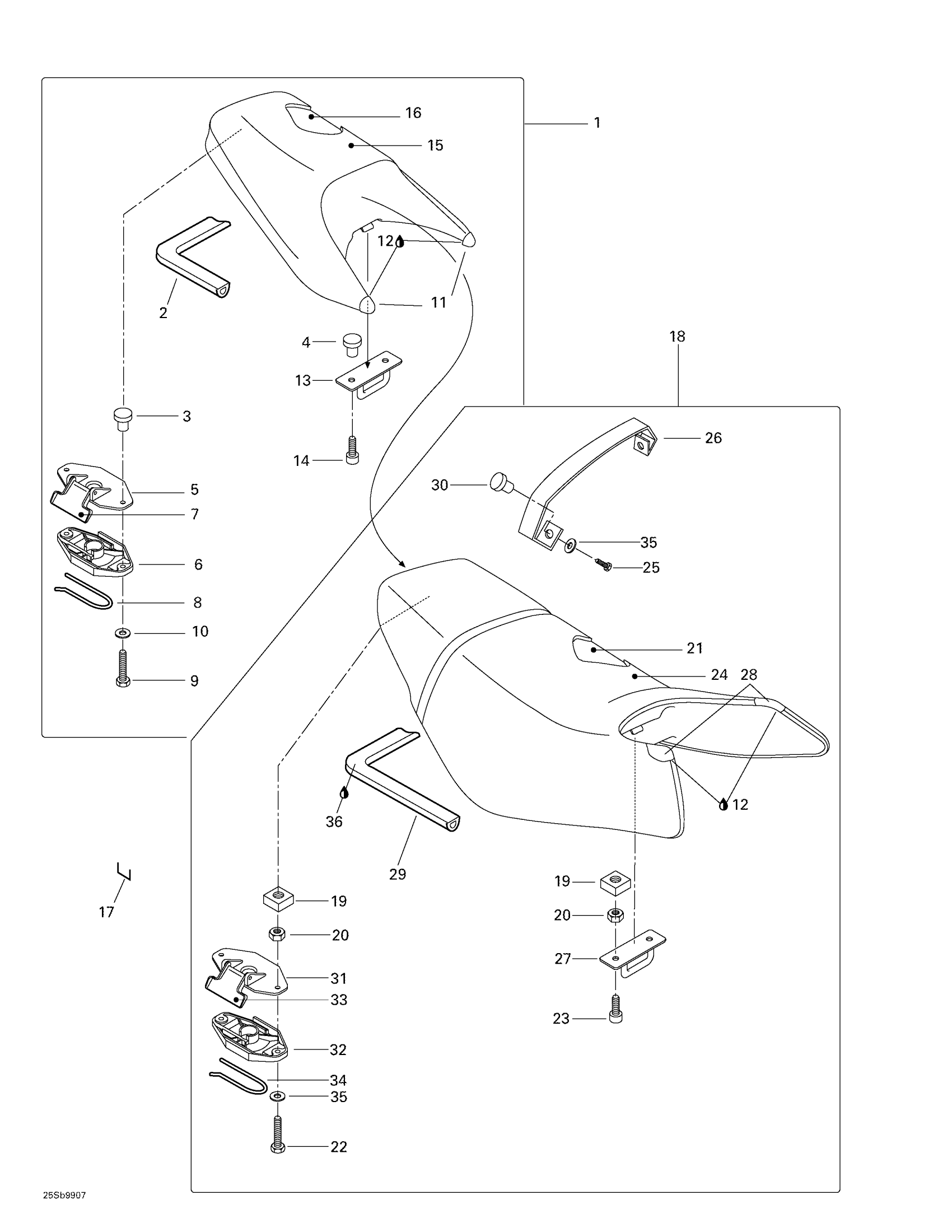

Sea-doo GTX RFI, 5886/5887, 1999 Seat Rear And Front (engine Cover) Diagram

#

Description
Price

1

Rear Seat Ass'y (Earthen Clay) | Includes 1 - 16.

269000570

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$118.27

3

NUT-T-SHAPE - Call your local BRP dealership

211100038

Unavailable

4

Threaded Insert

211100035

Unavailable

5

Latch Ass'y

269700109

$20.12

6

Latch Ass'y

269700109

$20.12

7

Latch Ass'y

269700109

$20.12

8

Latch Spring

269700017

$7.27

9

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.51

10

Stainless Flat Washer M6

234061600

$0.25

11

Rear Seat Corner RH

269000509

Unavailable

Rear Seat Corner LH

269000510

Unavailable

12

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

13

Hook (Seat Base)

291001357

Unavailable

14

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

15

Rear Seat Cover

269000508

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Staple

293730005

Unavailable

18

Front Seat Ass'y (Earthen Clay) | Includes 18 - 35.

269000571

Unavailable

19

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

20

Hex. Nut M6

232061600

$0.91

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Hex. Screw M6 X 30, Scotch Grip

207363060

Unavailable

23

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.62

24

Front Seat Cover (Earthen Clay)

269000487

Unavailable

25

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

26

Strap (Earthen Clay)

269000488

Unavailable

27

Hook (Seat Base)

291001357

Unavailable

28

Seat Corner, Clay | GTX 4-TEC LTD.

269000489

Unavailable

29

Was 293200017 Neoprene Seal

219704365

$118.27

30

Nut Welded, M6

293100003

$6.32

31

Latch Ass'y

269700109

$20.12

32

Latch Ass'y

269700109

$20.12

33

Latch Ass'y

269700109

$20.12

34

Latch Spring

269700017

$7.27

35

Stainless Flat Washer M6

234061600

$0.25

36

Loctite 401, 1 Oz

293800048

Unavailable
