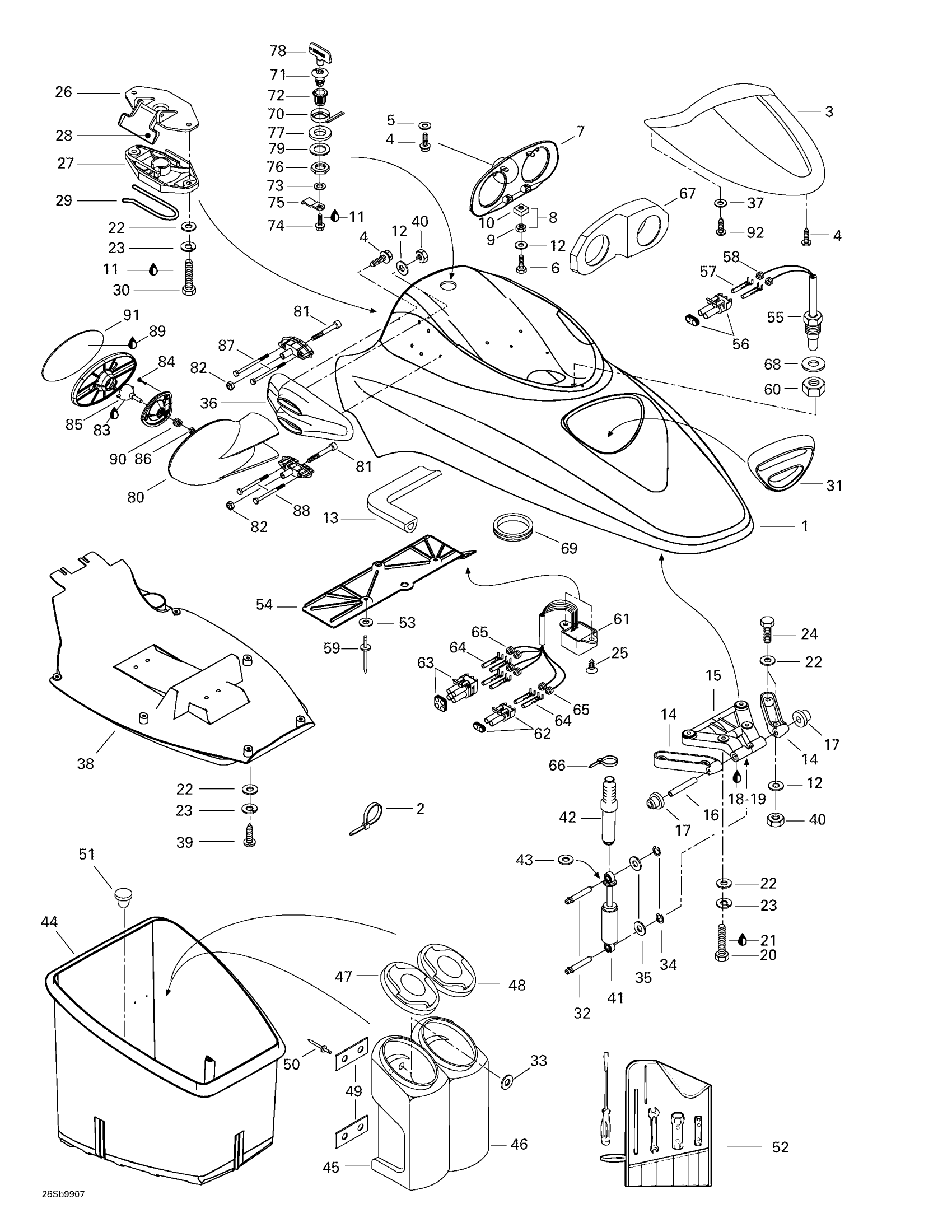

Sea-doo GTX RFI, 5886/5887, 1999 Front Storage Compartment Diagram

#

Description
Price

1

Storage Cover Upper

269500620

Unavailable

2

Tie Wrap 142 mm

293750002

$1.25

3

DEFLECTOR - Call your local BRP dealership

269500555

Unavailable

4

Hex. Flange Screw K40 X 16

241141660

$1.48

5

Flat Washer 4 mm, Stainless

234041600

$1.15

6

Hex. Screw M6 X 25

207162560

$1.47

7

Dash Board Ass'y

269500698

Unavailable

8

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

11

Loctite 243, 10 ml

293800060

$21.49

12

Flat Washer M6, Stainless

234062600

$0.77

13

Neoprene Seal 3000Mm Long

219704371

$51.99

14

RH HINGE - Call your local BRP dealership

269700022111

Unavailable

LH HINGE - Call your local BRP dealership

269700023111

Unavailable

15

COVER HINGE - Call your local BRP dealership

269700038

Unavailable

16

AXLE - Call your local BRP dealership

269700024

Unavailable

17

CUSHION - Call your local BRP dealership

293350016

Unavailable

18

Sealant Loctite 648

219703000

$45.99

19

Was 293800041 Loctite Primer 7649

219704458

$39.99

20

Hex. Forming Screw M6 X 20

207162060

$1.29

21

Loctite 243, 10 ml

293800060

$21.49

22

Stainless Flat Washer M6

234061600

$0.33

23

Lock Washer Helical M6

234161601

$1.15

24

Hex. Screw M6 X 35

207063560

$2.22

25

Black, Dart

293730016

$9.97

26

Latch Ass'y

269700109

$24.99

27

Latch Ass'y

269700109

$24.99

28

Latch Lever

269500610

Unavailable

29

Latch Spring

269700017

$9.19

30

Hex. Screw M6 X 25

207162560

$1.47

31

GRILL INTAKE (BLACK) - Call your local BRP dealership

269500694

Unavailable

32

SHORT PIN - Call your local BRP dealership

211400006

Unavailable

33

Flat Washer M3, Stainless

234032600

$0.55

34

CIRCLIP - Call your local BRP dealership

293370008

Unavailable

35

Stainless, Flat Washer 8 mm

234081600

$0.55

36

Support (Mirror) LH

269500560

Unavailable

Support (Mirror) RH

269500566

Unavailable

37

Flat Washer

211200007

Unavailable

38

Lower Storage Cover

269500660

Unavailable

39

SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership

208661660

Unavailable

40

Hex. Elastic Stop Nut M6

232561600

$1.15

41

Gas Shock Ass'y | Includes 82 - 85.

269500261

$119.99

42

BELLOW - Call your local BRP dealership

291000919

Unavailable

43

Washer

211200034

Unavailable

44

Storage Tray | Includes 77 - 78.

269500269

Unavailable

45

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

46

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

47

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

48

Storage Cap

269500604

Unavailable

49

GASKET - Call your local BRP dealership

293250037

Unavailable

50

Pop Rivet 1/8''

293150033

Unavailable

51

Rubber Bumper

293830005

$8.09

52

Tool Kit

295000066

Unavailable

53

Flat Washer 5 mm

234051500

$0.73

54

Mounting Plate

278000857

Unavailable

55

Temperature Sensor | Includes 55 - 58.

278000851

Unavailable

56

Male Connector, 2 Circuits

278000220

$15.49

57

Female Terminal

278000223

$3.19

58

Wire Seal

278000218

$4.39

59

Pop Rivet 3/16"

293150008

$0.50

60

NUT-HEX.PLASTIC M10 X 1.5 - Call your local BRP dealership

250100004

Unavailable

61

Compass | GTI RFI LE, Includes 38 to 42

278001243

Unavailable

62

Male Connector, 2 Circuits

278000220

$15.49

63

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

64

Female Terminal

278000223

$3.19

65

Wire Seal

278000218

$4.39

66

Tie Wrap 94 mm | 4X4

293750001

$1.03

67

GAUGE SUPPORT - Call your local BRP dealership

269500585

Unavailable

68

Flat Washer 10 mm, Stainless

234000600

$1.46

69

Rubber Ring

570276900

Unavailable

70

Cover Lock

269500515

Unavailable

71

Lock Pivot

269500609

Unavailable

72

LOCK HOUSING - Call your local BRP dealership

269500608

Unavailable

73

Star Washer 6 mm

211200061

Unavailable

74

Hex. Screw M6 x 10

211000202

Unavailable

75

Arm

269500514

Unavailable

76

Nut M22

211100064

Unavailable

77

Rubber Washer

211200060

Unavailable

78

LOCK KEY - Call your local BRP dealership

269500516

Unavailable

79

Flat Washer 39 mm

211200062

Unavailable

80

LH Mirror Ass'y | Includes 80 - 91.

269500562

Unavailable

RH Mirror Ass'y

269500568

Unavailable

81

Socket Head Screw M8 X 75

205087560

Unavailable

82

Hex. Elastic Nut M8

232581600

$1.48

83

Synthetic Grease, 400 G

293550010

Unavailable

84

Hex. Flange Screw K40 X 16

241141660

$1.48

85

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

86

Hex. Elastic Stop Nut M6

232561600

$1.15

87

Hex. Screw M6 x 80

207068060

$2.43

88

Hex. Screw M6 X 70

207067060

$5.61

89

Silicone Sealant 51388, 300 ml

296000309

$36.99

90

Mirror Spring

269500453

$10.49

91

MIRROR - Call your local BRP dealership

269500454

Unavailable

92

Screw

211000098

$3.80
