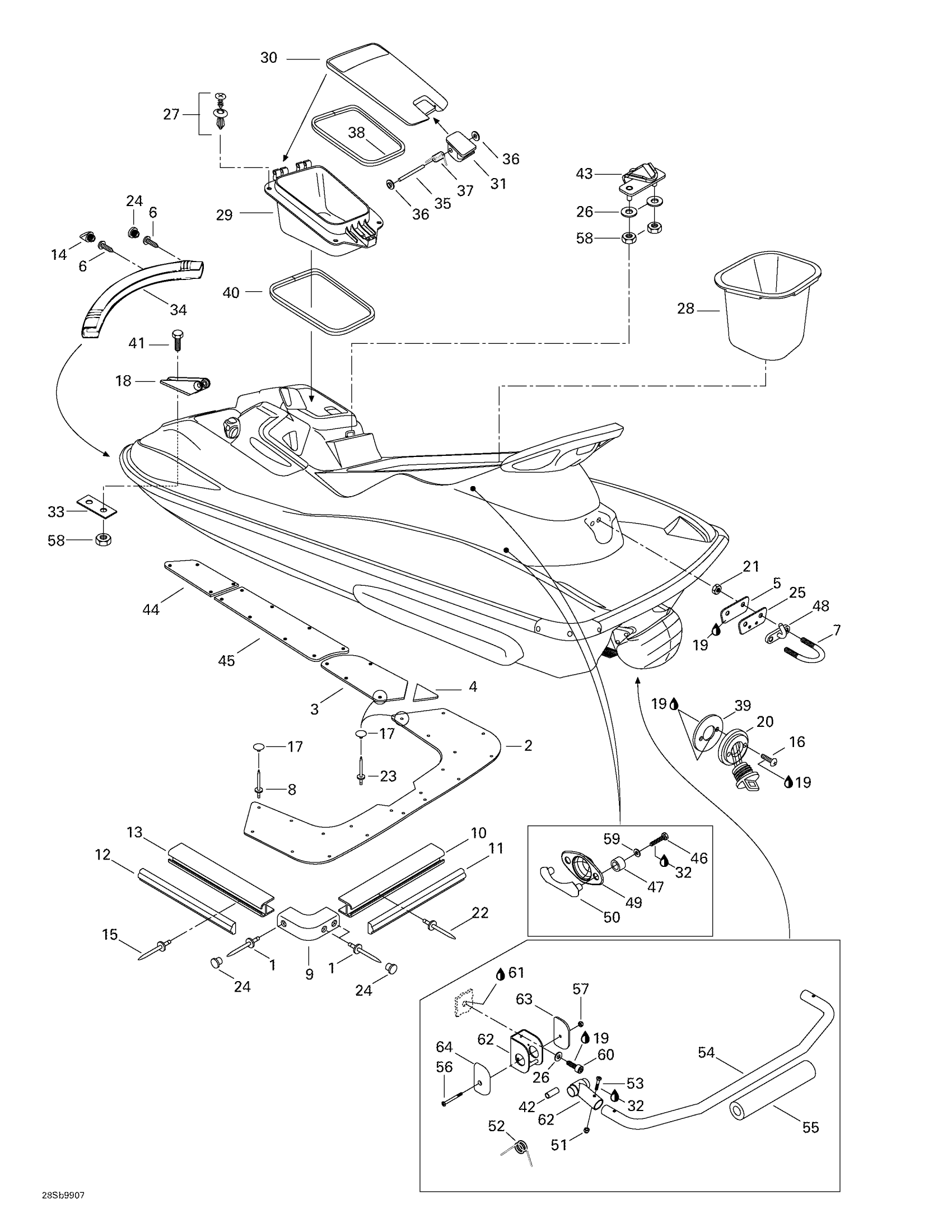

Sea-doo GTX RFI, 5886/5887, 1999 Body 2 Diagram

#

Description
Price

1

Pop Rivet 3/16"

293150013

$1.37

2

Rear Carpet (Black)

291001053

Unavailable

3

RH Rear Carpet (Black)

291001051

Unavailable

LH Rear Carpet (Black)

291001052

Unavailable

4

RH Anti-Skid Carpet

291001252

Unavailable

LH Anti-Skid Carpet

291001253

Unavailable

5

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

6

Phillips Screw 10-14 X 7/8”

211000037

Unavailable

7

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

8

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

9

Bumper Corner

291002244

$48.99

10

Rear Bumper (Black)

291001226

Unavailable

11

REAR BUMPER TRIM - Call your local BRP dealership

291001227

Unavailable

12

SIDE BUMPER TRIM - Call your local BRP dealership

291001225

Unavailable

13

Black, Side Bumper

204050270

$179.99

14

Bumper Plug, Black

291001040

$7.39

15

Pop Rivet 3/16"

293150005

$0.52

16

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

17

Black, Snap Cap

293000014

$1.09

18

SHOCK SUPPORT - Call your local BRP dealership

291000855

Unavailable

19

Silicone Sealant 51388, 300 ml

296000309

$36.99

20

Drain Plug

292000187

$14.49

21

Hex. Elastic Nut M8

232581600

$1.48

22

Pop Rivet 3/16"

293150005

$0.52

23

Rivet 1/8"

293150016

$0.40

24

Bumper Plug, Black

291000339

$2.99

25

Finition Plate

291000544

Unavailable

26

Flat Washer M6, Stainless

234062600

$0.77

27

SCREW-TUFLOCK PHILLIPS - Call your local BRP dealership

211000088

Unavailable

28

Rear Tray (Seat)

269500270

Unavailable

29

Box Gloves

269500439

Unavailable

30

Door-Box Gloves

269500552

Unavailable

31

Latch, Black

269500553

$21.99

32

Loctite 243, 10 ml

293800060

$21.49

33

REINFORCEMENT PLATE - Call your local BRP dealership

291000079

Unavailable

34

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

35

Pin

211400008

$9.10

36

Push Nut | Not shown

211100002

$2.19

37

Latch Spring

291000922

$7.39

38

GASKET - Call your local BRP dealership

293250060

Unavailable

39

GASKET - Call your local BRP dealership

293250030

Unavailable

40

Seal 1000Mm Long

219704373

$8.26

41

Hex. Screw M6 X 25

207162560

$1.47

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Hook (Seat)

291001353

Unavailable

44

RH Front Carpet (Black)

291001032

Unavailable

LH Front Carpet (Black)

291001033

Unavailable

45

RH Center Carpet (Black)

291001030

Unavailable

LH Center Carpet (Black)

291001031

Unavailable

46

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

Hex. Screw M5 X 20

207152060

$1.47

47

Spacer

291001203

$13.49

48

Hook | Package LTD

291002351

$69.99

49

CARGO HOOK BASE - Call your local BRP dealership

291001195

Unavailable

50

HOOK CARGO CLEATS - Call your local BRP dealership

291001196

Unavailable

51

Nut M6 | Model-Australie, Brezil, Europe

232361600

$4.34

52

RECALL SPRING - Call your local BRP dealership

292000541

Unavailable

53

Socket Head Screw M6 X 35

205063560

$2.22

54

Stair Tube | Includes 28 - 29.

292000590

Unavailable

55

PROTECTOR TUBE - Call your local BRP dealership | GTI LE RFI

292000593

Unavailable

56

Phillips Screw

211000186

Unavailable

57

NUT-LOCKING 1/4-20 - Call your local BRP dealership

211100061

Unavailable

58

Hex. Elastic Stop Nut M6

232561600

$1.15

59

Flat Washer 5 mm, Stainless

234052600

$0.77

60

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

61

Instant Gasket

219701421

$51.99

62

Support Ass’Y

292000539

Unavailable

63

RH Support Cap

292000540

Unavailable

64

LH Support Cap

292000548

Unavailable
