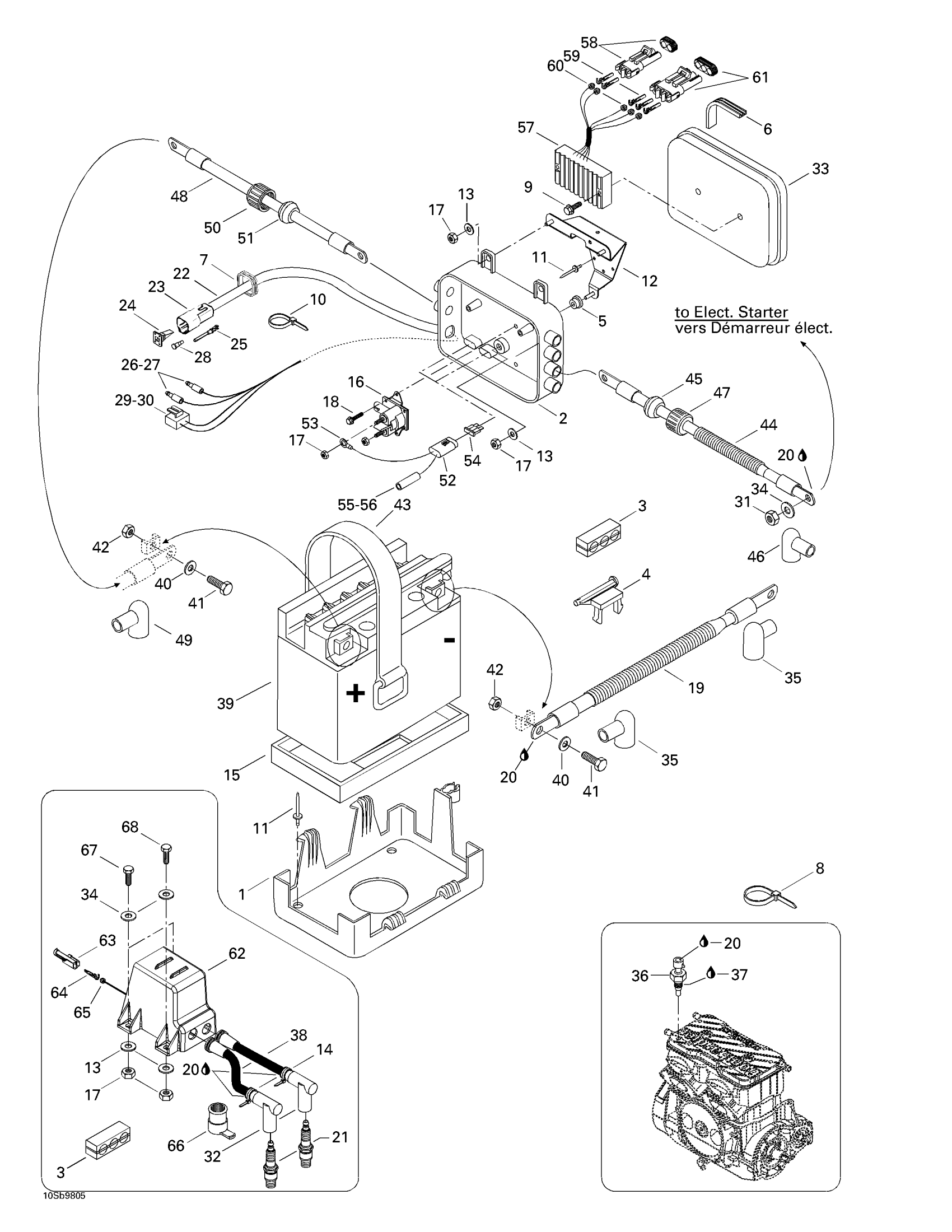

Sea-doo GTX RFI, 5666/5843, 1998 Rear Electrical Box Diagram

#

Description
Price

1

Battery Support

278001233

Unavailable

2

Base

278001314

Unavailable

3

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

4

Collar Support

278001096

Unavailable

5

O-RING - Call your local BRP dealership

293300040

Unavailable

6

GASKET - Call your local BRP dealership

278001173

Unavailable

7

Gasket

293200030

Unavailable

8

Tie Wrap 142 mm

293750002

$1.25

Tie Wrap 368 mm

293750008

$1.04

9

HEX. FORMING SCREW M6 X 16 - Call your local BRP dealership

211000106

Unavailable

10

Tie Wrap 94 mm | 4X4

293750001

$1.03

11

Avdel Rivet 3/16"

293150037

$0.56

12

Box Support Ass'y

278001261

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.77

14

Tie Wrap 142 mm

293750002

$1.25

15

Battery Lower Pad

278001234

Unavailable

16

Starter Relay

278003012

$42.49

17

Hex. Elastic Stop Nut M6

232561600

$1.15

18

Hex. Flange Screw M6 X 10

210261040

$1.48

19

Battery Ground Cable | Includes 91,92

278001010

Unavailable

20

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

21

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

22

Electric Box Harness | Includes 22 - 32.

278000945

Unavailable

23

Male Terminal Housing, 6 Circuits

710001539

$19.99

24

Female Lock, 6 Circuits

278000735

$3.19

25

Male Terminal

278000631

$4.39

26

Male Terminal

278000230

$4.39

27

Insulated Sheath

278001008

$3.28

28

Sealing Cap

293000052

$3.19

29

Male Connector, 2 Circuits

278001113

$16.86

30

Female Terminal

278001114

$3.19

31

Hex. Elastic Stop Nut M6

232561600

$1.15

32

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

33

OTAS Sensor

278000944

Unavailable

34

Stainless Flat Washer M6

234061600

$0.33

35

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

36

Temperature Sensor

278002895

$39.99

37

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

38

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

39

Battery 19A | Includes 5 to 8

278001756

$153.36

40

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

41

Hex. Screw M6 X 16

207161644

$0.74

42

Hex. Nut M6

232061414

$0.53

43

Retainer Strap

293850097

$11.64

44

Startor Cable (Red) | Includes 48 - 51.

278001140

Unavailable

45

GROMMET - Call your local BRP dealership

278000098

Unavailable

46

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

47

Electric Wire Cap

278000100

Unavailable

48

Battery Cable (Red) | Includes 44 - 47.

278001274

Unavailable

49

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

50

Electric Wire Cap

278000100

Unavailable

51

GROMMET - Call your local BRP dealership

278000098

Unavailable

52

Fuse Harness (20 Amperes) | Includes 52 - 56.

278001142

Unavailable

53

Ring Terminal

278000300

Unavailable

54

Fuse, 20 Amperes

409003900

$3.28

55

Female Terminal | DS 650 X

278001009

$3.19

56

Insulated Sheath

278001007

$3.58

57

Rectifier Ass’Y | Includes 30 - 34.

278001554

$209.99

58

Male Connector, 2 Circuits

278000220

$15.49

59

Female Terminal

409077300

Unavailable

60

Wire Seal

278000218

$4.39

61

Male Housing, 3 Circuits

278000273

$9.59

62

Ignition Coil | Includes 62 - 65.

278001311

Unavailable

63

Female Housing, 1 Circuit

278000161

$9.59

64

Male Terminal

409004300

$5.61

65

Wire Seal

278000218

$4.39

66

PROTECTOR CAP - Call your local BRP dealership

278001380

Unavailable

67

Hex. Screw M6 X 30

207063060

$1.89

68

Hex. Screw M6 X 40

207064060

$1.69
