09- Seat Rear And Front (engine Cover)

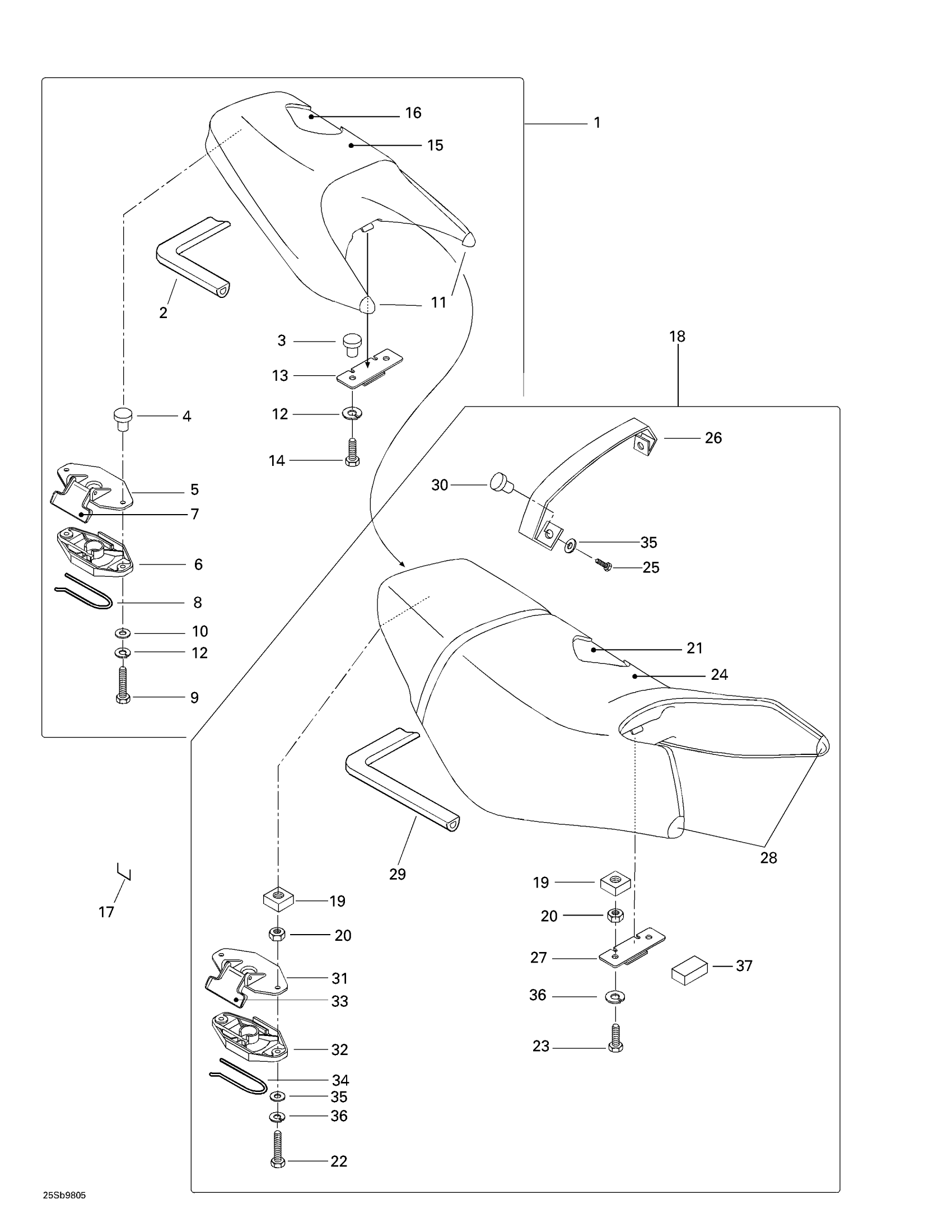

Sea-doo GTX RFI, 5666/5843, 1998 09- Seat Rear And Front (engine Cover) Diagram
#
Description
Price
1
Rear Seat Ass'y (Earthen Clay) | Includes 1 - 16.
269000507
Unavailable
2
Was 293200017 Neoprene Seal
219704365
$149.99
3
NUT-T-SHAPE - Call your local BRP dealership
211100038
Unavailable
4
Threaded Insert
211100035
Unavailable
5
Latch Ass'y
269700109
$24.99
6
Latch Ass'y
269700109
$24.99
7
Latch Ass'y
269700109
$24.99
8
Latch Spring
269700017
$9.19
9
Screw Hex. M6 X 35, Scotch Grip
207363560
$1.89
10
Stainless Flat Washer M6
234061600
$0.33
11
Rear Seat Corner RH
269000509
Unavailable
Rear Seat Corner LH
269000510
Unavailable
12
Lock Washer Helical M6
234161601
$1.15
13
Keeper Base
291001167
Unavailable
14
Hex. Screw M6 x 16
207361600
Unavailable
15
Rear Seat Cover
269000508
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Staple
293730005
Unavailable
18
Front Seat Ass'y (Earthen Clay) | Includes 18 - 36.
269000486
Unavailable
19
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
20
Hex. Elastic Stop Nut M6
232561600
$1.15
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Hex. Screw M6 X 30, Scotch Grip
207363060
Unavailable
23
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
24
Front Seat Cover (Earthen Clay)
269000487
Unavailable
25
Hex. Screw M6 X 16, Scotch Grip
207361660
$1.15
26
Strap (Earthen Clay)
269000488
Unavailable
27
Keeper Base
291001167
Unavailable
28
Seat Corner, Clay | GTX 4-TEC LTD.
269000489
Unavailable
29
Was 293200017 Neoprene Seal
219704365
$149.99
30
Nut Welded, M6
293100003
$9.12
31
Latch Ass'y
269700109
$24.99
32
Latch Ass'y
269700109
$24.99
33
Latch Ass'y
269700109
$24.99
34
Latch Spring
269700017
$9.19
35
Stainless Flat Washer M6
234061600
$0.33
36
Lock Washer Helical M6
234161601
$1.15
37
Rubber Stopper
269000446
Unavailable
