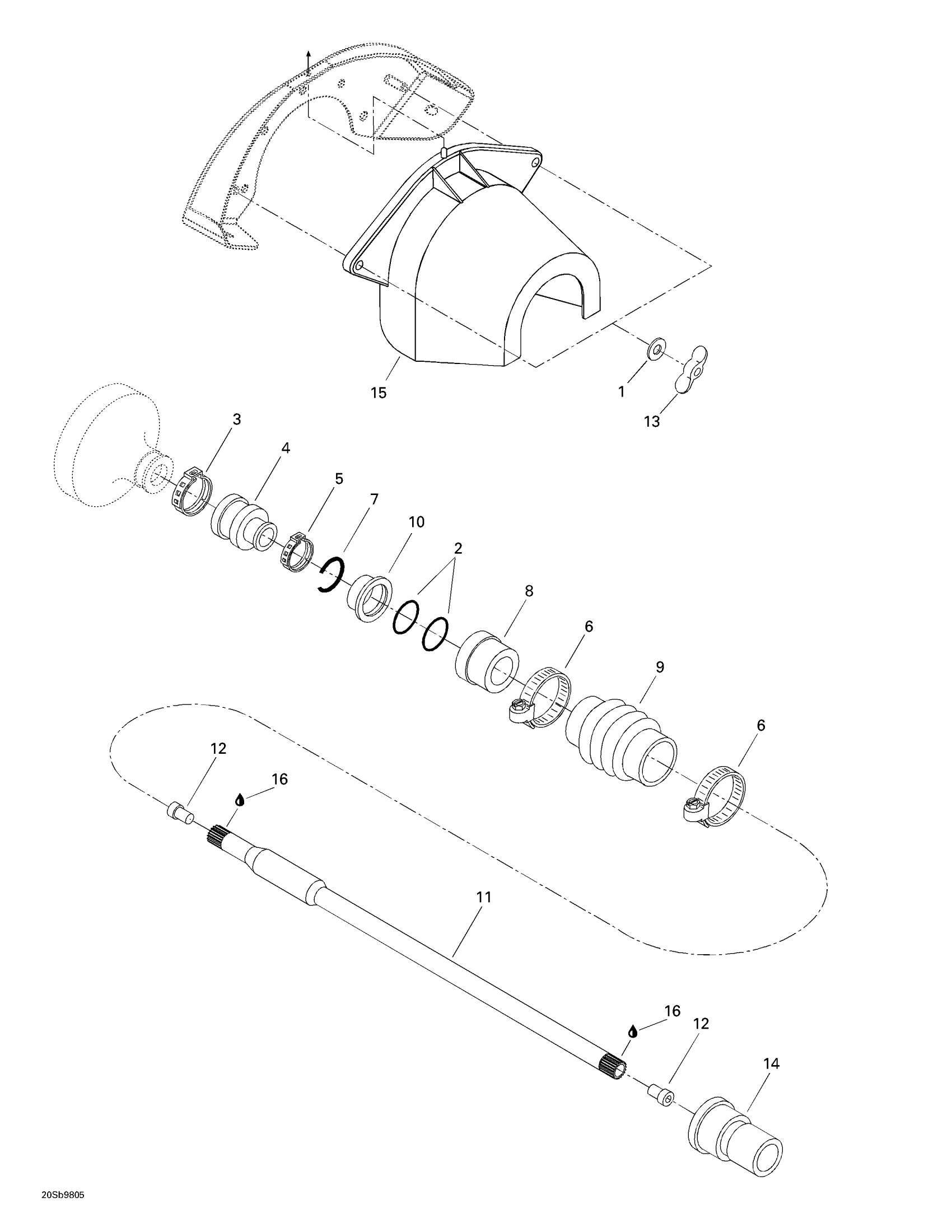

Sea-doo GTX RFI, 5666/5843, 1998 Drive System Diagram

#

Description
Price

1

Flat Washer 8 mm, Stainless

234082600

$1.98

2

O-Ring

293300032

$4.89

3

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

4

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

5

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

6

Norma Clamp

293650075

$9.28

7

C-CLIP - Call your local BRP dealership

272000135

Unavailable

8

Carbon Ring

272000770

$35.72

9

BELLOWS - Call your local BRP dealership

272000184

Unavailable

10

Support Ring

272000064

$53.27

11

DRIVE SHAFT - Call your local BRP dealership

272000127

Unavailable

12

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

13

Wing Nut M8

232681100

$1.73

14

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

15

FLYWHEEL GUARD - Call your local BRP dealership

272000094

Unavailable

16

Synthetic Grease, 400 G

293550010

Unavailable
