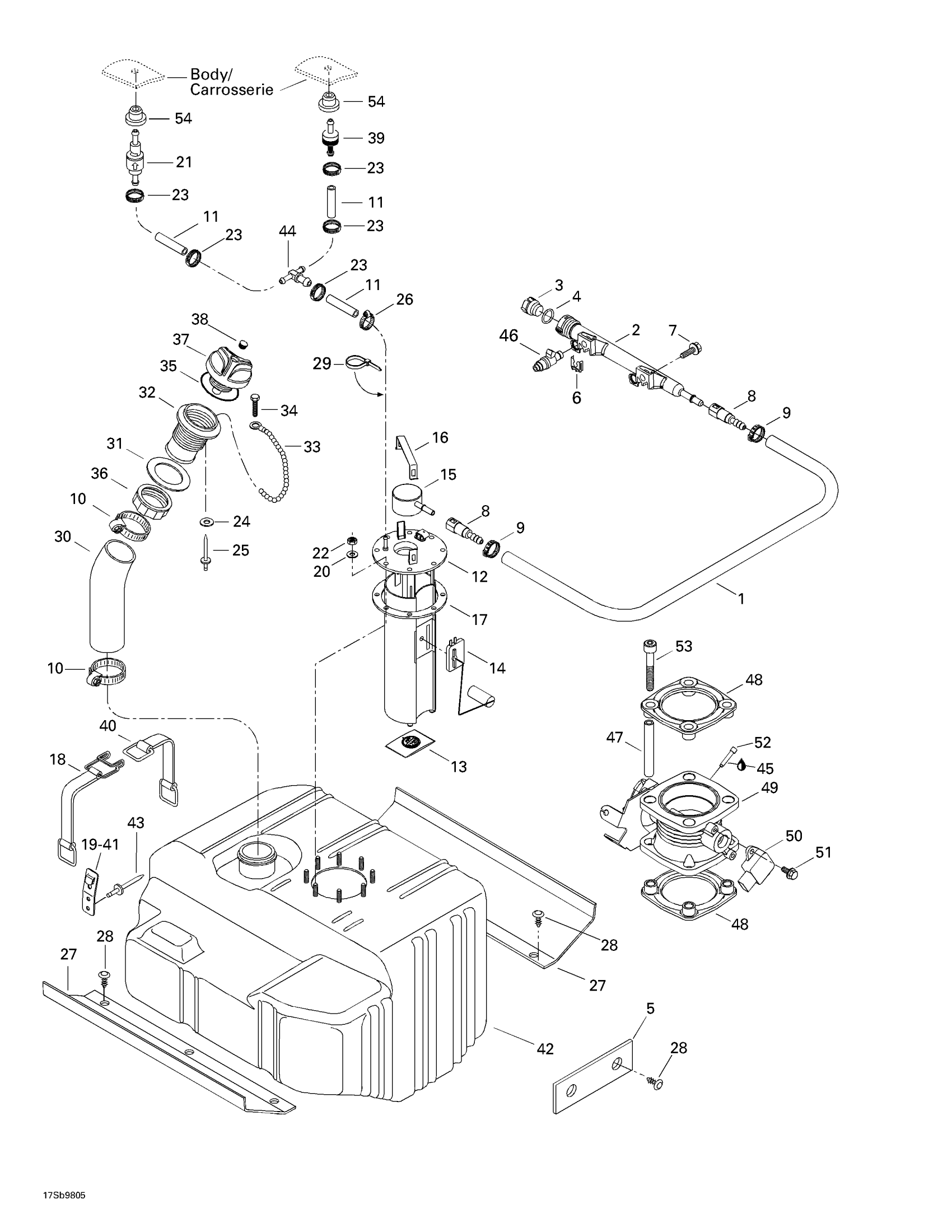

Sea-doo GTX RFI, 5666/5843, 1998 Fuel System Diagram

#

Description
Price

1

Hose 6 mm

204000068

Unavailable

2

Fuel Rail

270600008

Unavailable

3

CAP - Call your local BRP dealership

270600009

Unavailable

4

O-RING - Call your local BRP dealership

293300042

Unavailable

5

Rubber Pad

292000415

Unavailable

6

Injector Circlip

270600010

Unavailable

7

SCREW-HEX.FLANGE S.GRIP - Call your local BRP dealership

211000176

Unavailable

8

Connector

293700035

Unavailable

9

Crimp Clamp

293650053

$3.09

10

Tridon Clamp

293650023

$13.49

11

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

12

FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 23 to 25

204560418

Unavailable

13

Fuel Filter, Bosch

219700368

$39.99

14

Sensor Level

270600012

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Gasket

293250088

$14.99

18

Strap | Includes 69 - 70.

293850025

Unavailable

19

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

20

Flat Washer 5 mm, Stainless

234052400

$2.85

21

Check Valve

275500417

Unavailable

22

Hex. Elastic Nut M5 | X

232551600

$1.15

23

Oetiker Clamp

293650042

$3.09

24

Flat Washer M3, Stainless

234032600

$0.55

25

Pop Rivet 1/8"

390407900

$1.49

26

Tridon Gear Clamp

293650170

$1.99

27

Pad Rubber

293830040

Unavailable

28

Black, Dart

293730006

$0.99

29

Tie-Rap 180 mm

414115200

$0.11

30

Filler Neck Hose

275500377

Unavailable

31

Gasket

293250029

$14.82

32

Filler Neck, Fuel

275500231

$14.75

33

Chain

275500168

Unavailable

34

Screw K40 X 10

241140060

$1.48

35

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

36

Filler Neck Nut, Fuel

211100012

$14.22

37

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

38

Black, Snap Cap

293000034

$9.39

39

Check Valve

275500398

$10.99

40

Fuel Tank Strap | Includes 48 - 49.

293850026

Unavailable

41

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

42

Fuel Tank

275500321

Unavailable

43

Avdel Rivet 3/16"

293150037

$0.56

44

T-Fitting | Europe

293710024

$14.75

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Injector

270600004

Unavailable

47

SPACER TUBE - Call your local BRP dealership

275500352

Unavailable

48

GASKET - Call your local BRP dealership

293250071

Unavailable

49

Throttle Body Ass'y | Includes 49 - 52.

270000417

Unavailable

50

Position Sensor

420866120

$98.99

51

Potentiometer Screw M4

211000205

Unavailable

52

Socket Head Screw M6 X 30

205063060

$2.75

53

SOCKET HEAD SCREW M6 X 90, SCOTCH GRIP - Call your local BRP dealership

205569060

Unavailable

54

Grommet

293720029

$1.59
