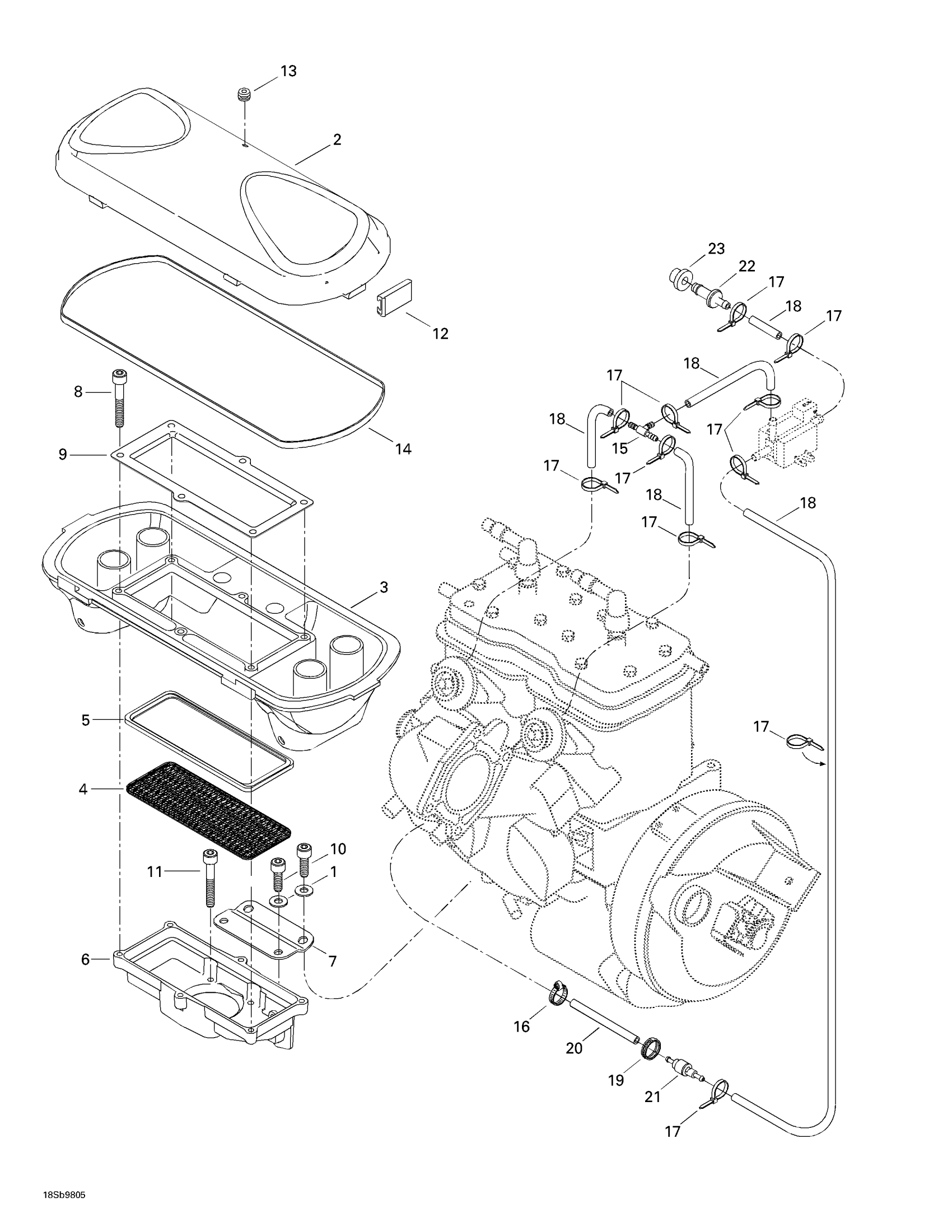

Sea-doo GTX RFI, 5666/5843, 1998 Air Intake System Diagram

#

Description
Price

1

Stainless Flat Washer M6

234061600

$0.33

2

AIR SILENCER COVER - Call your local BRP dealership

273000115

Unavailable

3

AIR SILENCER BASE - Call your local BRP dealership

273000103

Unavailable

4

Flame Arrester

273000118

Unavailable

5

ISOLATOR - Call your local BRP dealership

273000020

Unavailable

6

Arrester Housing

273000086

Unavailable

7

Support

270000248

Unavailable

8

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

9

HOLDER PLATE - Call your local BRP dealership

273000059

Unavailable

10

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.58

11

SOCKET HEAD SCREW M6 X 90, SCOTCH GRIP - Call your local BRP dealership

205569060

Unavailable

12

Retainer Clip

273000006

Unavailable

13

Rubber Bumper

293830005

$8.09

14

GASKET - Call your local BRP dealership

293250023

Unavailable

15

T-Fitting

293710068

$8.29

16

Tridon Gear Clamp

293650170

$1.99

17

Tie Wrap 94 mm | 4X4

293750001

$1.03

18

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

19

Oetiker Clamp

293650042

$3.09

20

Formed Hose

270000389

Unavailable

21

Pressure Relief Valve (1.5 P.S.I)

275500104

Unavailable

22

Fitting

293700031

Unavailable

23

Grommet

293720029

$1.59
