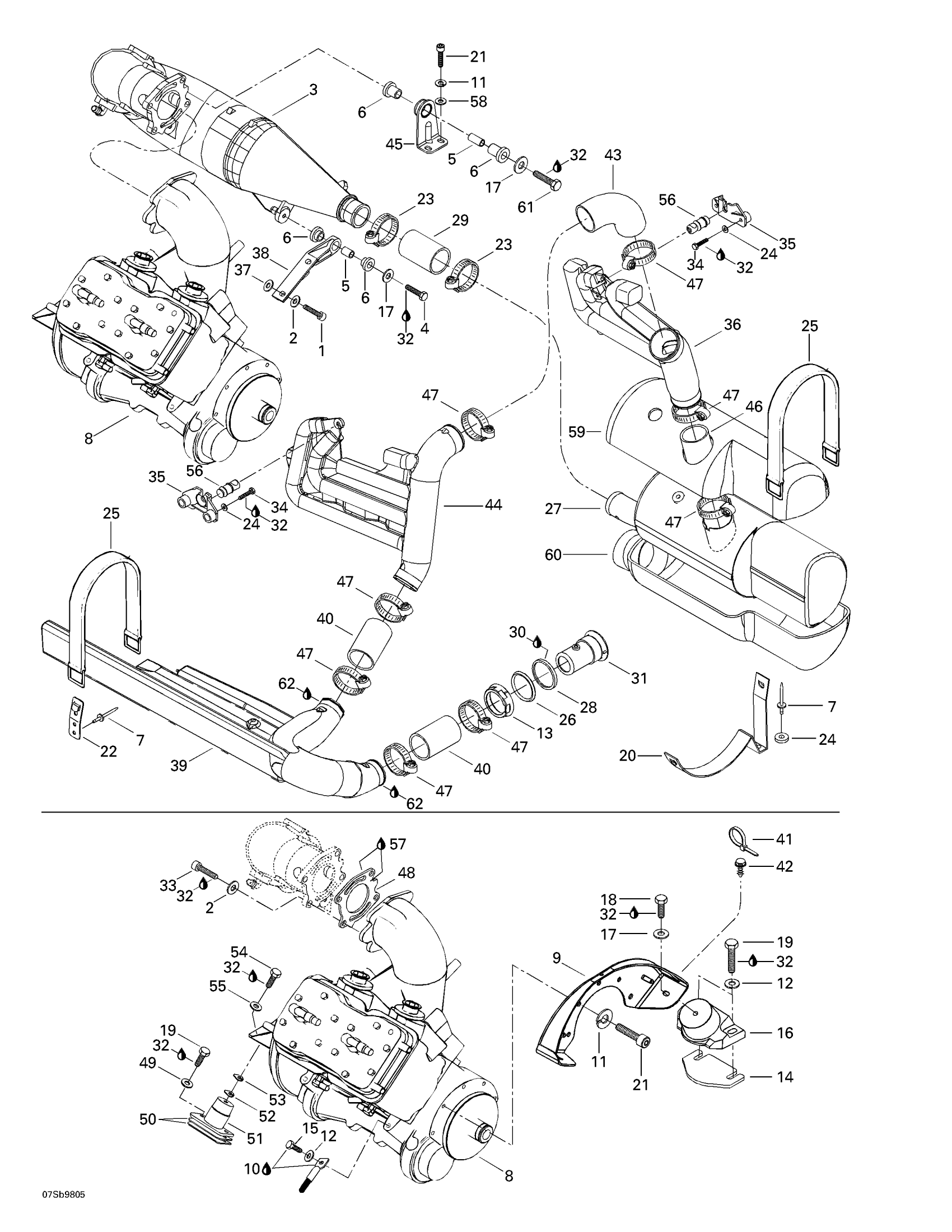

Sea-doo GTX RFI, 5666/5843, 1998 Engine Support And Muffler Diagram

#

Description
Price

1

SCREW-SOCKET DIN.912A2 S.GRIP - Call your local BRP dealership

205504060

Unavailable

2

Flat Washer 10 mm, Stainless

234001600

$1.15

3

Head Pipe Ass'y | Includes 7 - 9.

274000395

Unavailable

4

Hex. Screw M8 X 40

207084060

$2.22

5

Bushing

274000254

$13.17

6

RUBBER BUSHING - Call your local BRP dealership

293830036

$14.23

7

Avdel Rivet 3/16"

293150037

$0.56

8

Rotax Engine 787 SDI (Silver)

270000293

Unavailable

9

Engine Support

270000359

Unavailable

10

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

11

Lock Washer 8 mm, Stainless

234181601

$0.55

12

Stainless, Flat Washer 8 mm

234081600

$0.55

13

Nut 72 mm

274000224

$16.34

14

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

15

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

16

Rubber Mount

270000344

Unavailable

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

Hex. Screw M8 x 16

215681660

Unavailable

19

Hex. Screw M8 X 40

207184060

$2.22

20

Muffler Support

274000400

Unavailable

21

Socket Head Screw M8 X 25, Scotch Grip

205582560

$2.19

22

Strap Clip

293850030

$11.12

23

Tridon Clamp

293650023

$13.49

24

Flat Washer 5 mm, Stainless

234052600

$0.77

25

Retainer Strap

293850097

$11.64

26

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

27

Muffler

274000613

Unavailable

28

GASKET - Call your local BRP dealership

293250041

Unavailable

29

Exhaust Hose

274000170

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

$36.99

31

EXHAUST OUTLET - Call your local BRP dealership

274000222

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

Socket Head Screw M10 x 35

215903560

Unavailable

34

SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership

215051660

Unavailable

Hex. Screw M5 X 20

207152060

$1.47

35

Pad Support

291001204

Unavailable

36

RH Resonator

274000604

Unavailable

37

Flat Washer 10 mm, Stainless

234002600

$2.22

38

Pipe Support

274000457

Unavailable

39

Resonator

295500683

Unavailable

40

Exhaust Hose

274000616

Unavailable

41

Tie-Rap 180 mm

414115200

$0.11

42

Mount Dart

293730040

$1.04

43

EXHAUST HOSE - Call your local BRP dealership

274000563

Unavailable

44

LH Resonator

274000655

Unavailable

45

Pipe Support

274000598

Unavailable

46

EXHAUST HOSE - Call your local BRP dealership

274000530

Unavailable

47

Tridon Clamp

293650064

$8.29

48

Gasket

290931500

Unavailable

49

Stainless, Flat Washer 8 mm

234081600

$0.55

50

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

51

Rubber Mount

270000346

Unavailable

52

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

53

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

54

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

55

Flat Washer 8 mm, Stainless

234082600

$2.43

56

RUBBER PAD - Call your local BRP dealership

293830062

Unavailable

57

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

58

Flat Washer M8.5 x 18

293050001

$3.07

59

Cover Muffler - Upper

274000609

Unavailable

60

Cover Muffler - Lower

274000608

Unavailable

61

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

62

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99
