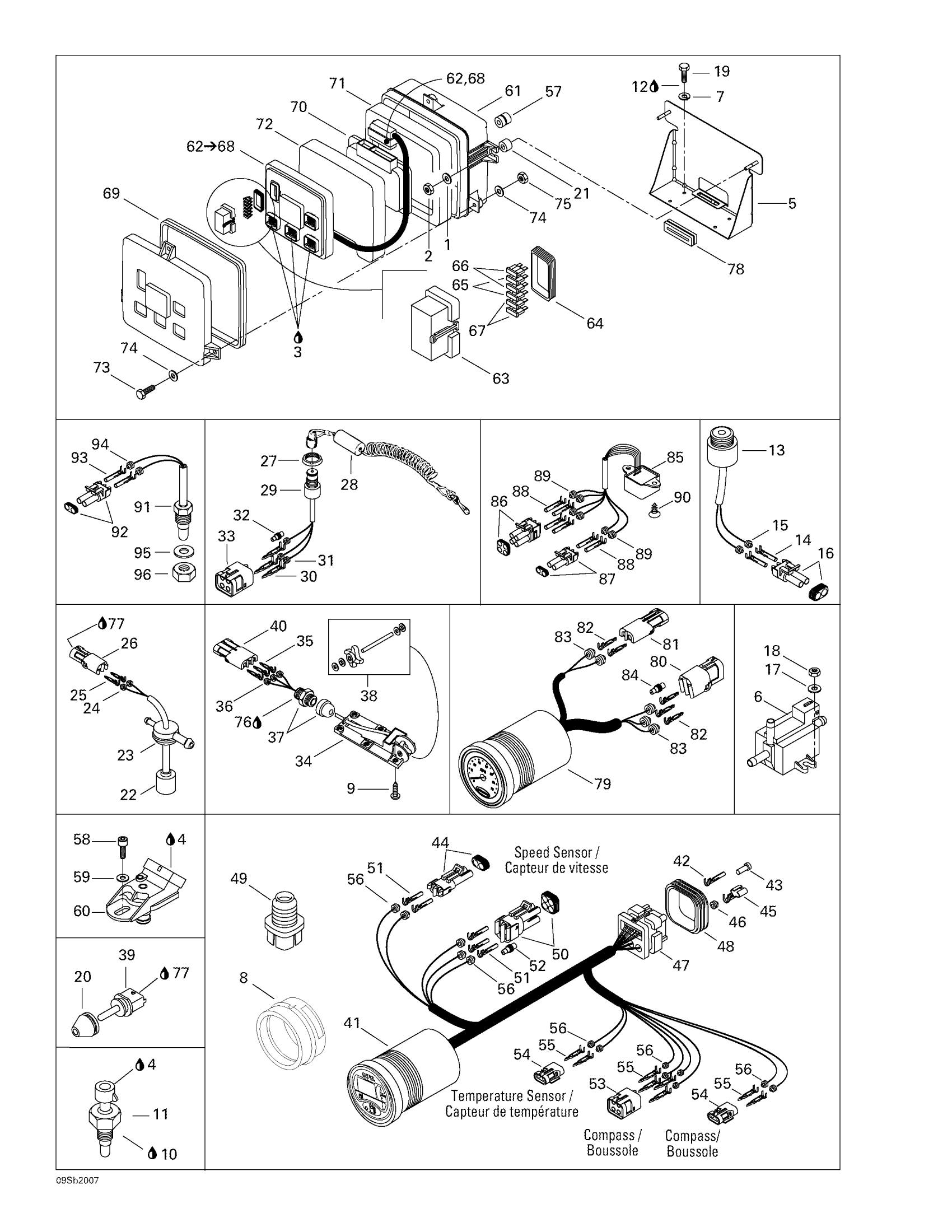

Sea-doo GTX RFI, 5648/5658/5515/5516, 2000 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

Flat Washer M6, Stainless

234062600

$0.77

2

Hex. Elastic Stop Nut M6

232561600

$1.15

3

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

4

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

5

Box Support Ass'y

278001139

Unavailable

6

Solenoid Valve

270600005

$116.49

7

Helical Lock Washer M5

234151601

$1.15

8

Gauge Support

293720047

Unavailable

9

Phillips Screw M5 x 12

250000319

$1.39

10

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

11

Temperature Sensor

278002895

$39.99

12

Loctite 271, 10 ml

293800005

$26.99

13

Buzzer Ass'y | Includes 10 - 13.

278001565

Unavailable

Buzzer Ass'y | Includes 11 - 14.

278000978

Unavailable

14

Female Terminal

278000223

$3.19

15

Wire Seal

278000218

$4.39

16

Male Connector, 2 Circuits

278000220

$15.49

17

Flat Washer M5, Stainless

234051600

$0.77

18

Hex. Elastic Nut M5 | X

232551600

$1.15

19

Hex. Screw 10-14 X 7/8”

211000023

$3.59

20

INSULATOR - Call your local BRP dealership

278001054

Unavailable

21

SPACER - Call your local BRP dealership

272000074

Unavailable

22

OIL LEVER SENSOR ASS'Y - Call your local BRP dealership

278001401

Unavailable

23

Grommet

293720008

$14.75

24

Wire Seal

278000218

$4.39

25

Male Terminal | XT Models

278000222

$3.19

26

Female Housing, 2 Circuits

278000217

$9.59

27

Safety Nut (DESS Switch)

278002963

$3.28

28

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

29

Safety Switch | Includes 15 - 19.

278000977

Unavailable

30

Male Terminal | XT Models

278000222

$3.19

31

Wire Seal

278000218

$4.39

32

Wire Seal

278000216

$3.19

33

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

34

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

35

Male Terminal | XT Models

278000222

$3.19

36

Wire Seal

278000218

$4.39

37

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

38

Paddle Wheel Kit

295500108

Unavailable

39

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

40

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

41

LCD INFO GAUGE - Call your local BRP dealership | Includes 41 - 55.

278001541

Unavailable

42

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

43

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

44

Male Connector, 2 Circuits

278000220

$15.49

45

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

46

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

47

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

48

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

49

GROMMET - Call your local BRP dealership

293720042

Unavailable

50

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

51

Female Terminal

278000223

$3.19

52

Wire Seal

278000216

$3.19

53

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

54

Female Housing, 2 Circuits

278000217

$9.59

55

Male Terminal | XT Models

278000222

$3.19

56

Wire Seal

278001065

$7.69

57

UPPER INSULATOR - Call your local BRP dealership

278001260

Unavailable

58

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.58

59

Stainless Flat Washer M6

234061600

$0.33

60

Pressure Sensor

270600040

$199.99

61

Not Available As Spare Part - Friction Washer

Unavailable

61

Electronic Box Base

278000938

Unavailable

62

Electronic Module | Includes 62 - 68.

278001529

Unavailable

62

Wire Seal

278000999

$3.19

63

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

64

Cover Seal

278001070

Unavailable

65

Fuse, 5 Amperes | CE

278000344

$3.28

66

Fuse, 15 Amperes

278000343

$3.28

67

Fuse, 10 Amperes | North America

278001197

$2.21

68

Female Terminal

278000998

$4.39

69

Gasket

293250063

Unavailable

70

Electronic Module

278001530

Unavailable

71

Lower Foam

278000941

Unavailable

72

Top Foam

278001100

Unavailable

73

Hex. Screw M6 X 30

207063060

$1.89

74

Flat Washer M6, Stainless

234062600

$0.77

75

Hex. Elastic Stop Nut M6

232561600

$1.15

76

Was 293800013 Loctite 56765

219704454

$65.99

77

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

78

Insulator

278001259

Unavailable

79

Speedometer Ass'y | Includes 79 - 84.

278001435

Unavailable

80

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

81

Female Housing, 2 Circuits

278000217

$9.59

82

Male Terminal | XT Models

278000222

$3.19

83

Wire Seal

278001065

$7.69

84

Wire Seal

278000216

$3.19

85

Compass | GTI RFI LE, Includes 38 to 42

278001243

Unavailable

86

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

87

Male Connector, 2 Circuits

278000220

$15.49

88

Female Terminal

278000223

$3.19

89

Wire Seal

278000218

$4.39

90

Black, Dart

293730016

$9.97

91

Temperature Sensor | Includes 55 - 58.

278000851

Unavailable

92

Male Connector, 2 Circuits

278000220

$15.49

93

Female Terminal

278000223

$3.19

94

Wire Seal

278000218

$4.39

95

Flat Washer 10 mm, Stainless

234000600

$1.46

96

NUT-HEX.PLASTIC M10 X 1.5 - Call your local BRP dealership

250100004

Unavailable
