- GTX RFI, 5648/5658/5515/5516, 2000
09- Body, Front View

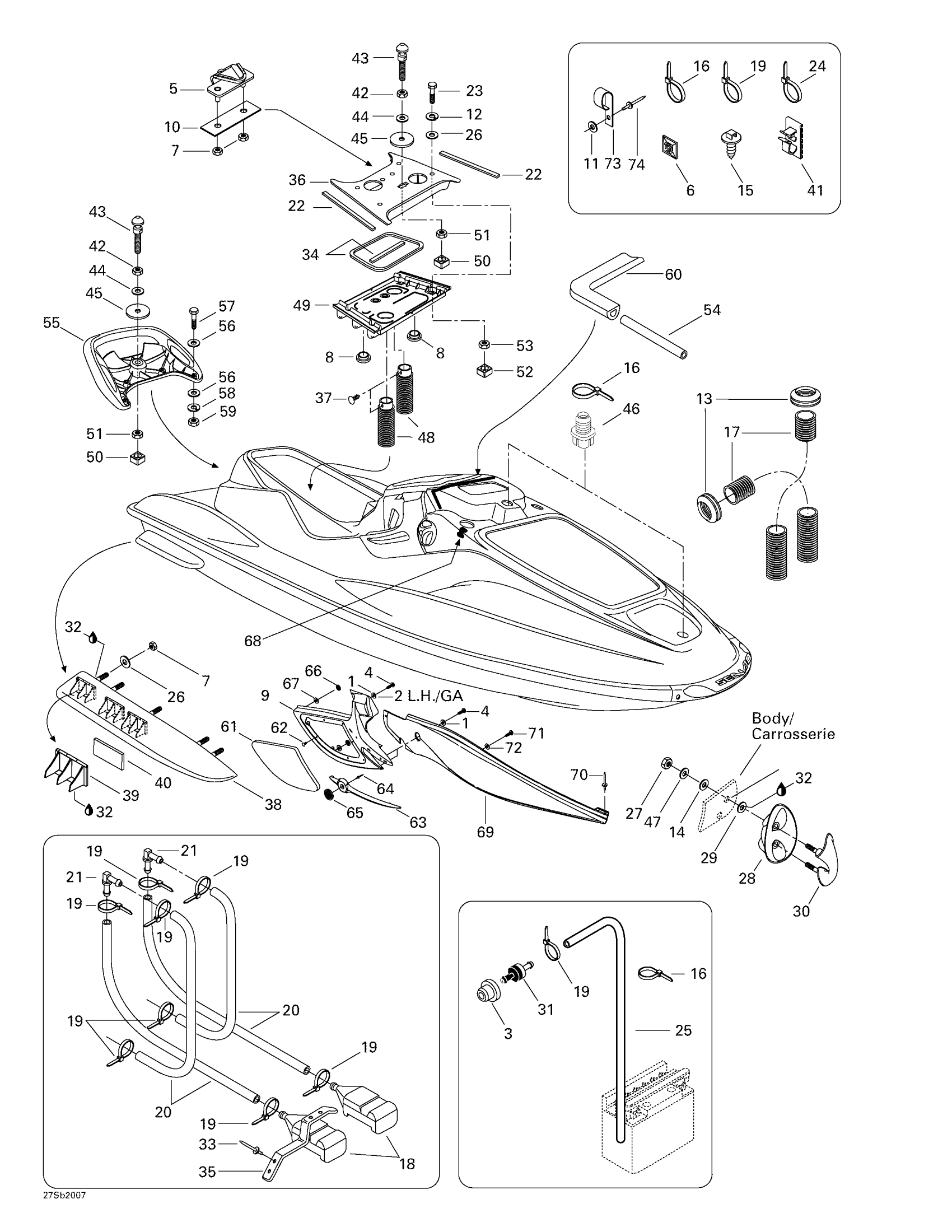

Sea-doo GTX RFI, 5648/5658/5515/5516, 2000 09- Body, Front View Diagram
#
1
Flat Washer 5 mm, Stainless
234052600
$0.77
2
FLAT WASHER - Call your local BRP dealership
211200033
Unavailable
3
Grommet
293720029
$1.59
4
Hex. Flange Screw K40 X 16
241141660
$1.48
5
Seat Hook
291001479
Unavailable
6
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
7
Hex. Elastic Stop Nut M6
232561600
$1.15
8
Plug
293000049
Unavailable
9
RH Intake Grille (Starboard)
269500715
Unavailable
LH Intake Grille (Port)
269500714
Unavailable
10
REINFORCEMENT PLATE - Call your local BRP dealership
291000079
Unavailable
11
Flat Washer, Emhart
213200016
$0.72
12
Lock Washer Helical M6
234161601
$1.15
13
VENT ADAPTOR - Call your local BRP dealership
291001100
Unavailable
14
Rubber Washer
293830037
$2.68
15
Mount Dart
293730040
$1.04
16
Tie Wrap 368 mm
293750008
$1.04
Tie-Rap 180 mm
414115200
$0.11
17
Tube Vent
291001473
Unavailable
18
Bailer Screen
292000688
Unavailable
19
Tie Wrap 94 mm | 4X4
293750001
$1.03
20
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
21
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
22
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
23
Hex. Screw M6 X 70
207067060
$5.61
24
Tie Wrap 142 mm
293750002
$1.25
25
HOSE 6 MM - Call your local BRP dealership
275500446
Unavailable
26
Flat Washer M6, Stainless
234062600
$0.77
27
Hex. Elastic Nut M8
232581600
$1.48
28
Shell
292000515
Unavailable
29
Stainless, Flat Washer 8 mm
234081600
$0.55
30
Eye-Bow (Black) This part replaces 292000708.
292000452
$42.99
31
CHECK VALVE - Call your local BRP dealership This part replaces 275500167.
275500499
Unavailable
32
Silicone Sealant 51388, 300 ml
296000309
$36.99
33
Avdel Rivet 3/16"
293150037
$0.56
34
Neoprene Seal (1PAC=3M)
219704364
$27.49
35
LH SPRING CLIP - Call your local BRP dealership
292000398
Unavailable
36
Bridge Upper
291000851
Unavailable
37
Black, Dart
293730011
$0.99
38
RH SPONSON - Call your local BRP dealership
292000594
Unavailable
LH SPONSON - Call your local BRP dealership
292000595
Unavailable
39
Insert
293450149
Unavailable
40
CUSHION - Call your local BRP dealership
292000414
Unavailable
41
TIE CLAMP - Call your local BRP dealership
293750005
Unavailable
42
Hex. Jam Nut M10
232100600
$2.22
43
SEAT STUD - Call your local BRP dealership
291000945
Unavailable
44
Flat Washer 10 mm, Stainless
234002600
$2.22
45
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
46
GROMMET - Call your local BRP dealership
293720042
Unavailable
47
Flat Washer 8 mm, Stainless
250200175
$3.06
48
Rear Vent Tube
291001441
Unavailable
49
BRIDGE LOWER - Call your local BRP dealership
291001281
Unavailable
50
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
51
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
52
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
53
Hex. Nut M6
232061600
$1.15
54
Was 415110000 Polyurethane Hose 5.2 mm
219704414
$121.99
55
Grab Handle (Black) | Includes 42 - 46.
295500369
Unavailable
56
Flat Washer M6, Stainless
234062600
$0.77
57
Hex. Screw M6 X 40
207064060
$1.69
58
Lock Washer Helical M6
234161601
$1.15
59
Hex. Nut M6
232061600
$1.15
60
Was 293200017 Neoprene Seal
219704365
$149.99
61
RH Knee Pad | GTX RFI 5648/5658 (GOLD).
269000677
Unavailable
RH Knee Pad | GTX RFI (GREEN).
269000679
Unavailable
LH Knee Pad | GTX RFI 5648/5658 (GOLD).
269000676
Unavailable
LH Knee Pad
269000678
Unavailable
62
Black, Dart
414644300
$0.98
63
FINITION PLATE - Call your local BRP dealership
269500716
Unavailable
64
Pop Rivet 3/16"
293150008
$0.50
65
BRP Logo 48mm
516008738
$16.99
66
Push Nut
250100008
Unavailable
67
Flat Washer, Stainless/Neoprene
211200055
$0.73
68
Protector
291001512
Unavailable
69
LH Moulding
291001403
Unavailable
RH Moulding
291001404
Unavailable
70
Pop Rivet 3/16"
293150080
Unavailable
71
Hex. Flange Screw K40 X 16
241141660
$1.48
72
Flat Washer 5 mm, Stainless
234052600
$0.77
73
CLAMP TIE - Call your local BRP dealership
293750021
Unavailable
74
Pop Rivet 3/16"
293150005
$0.52
