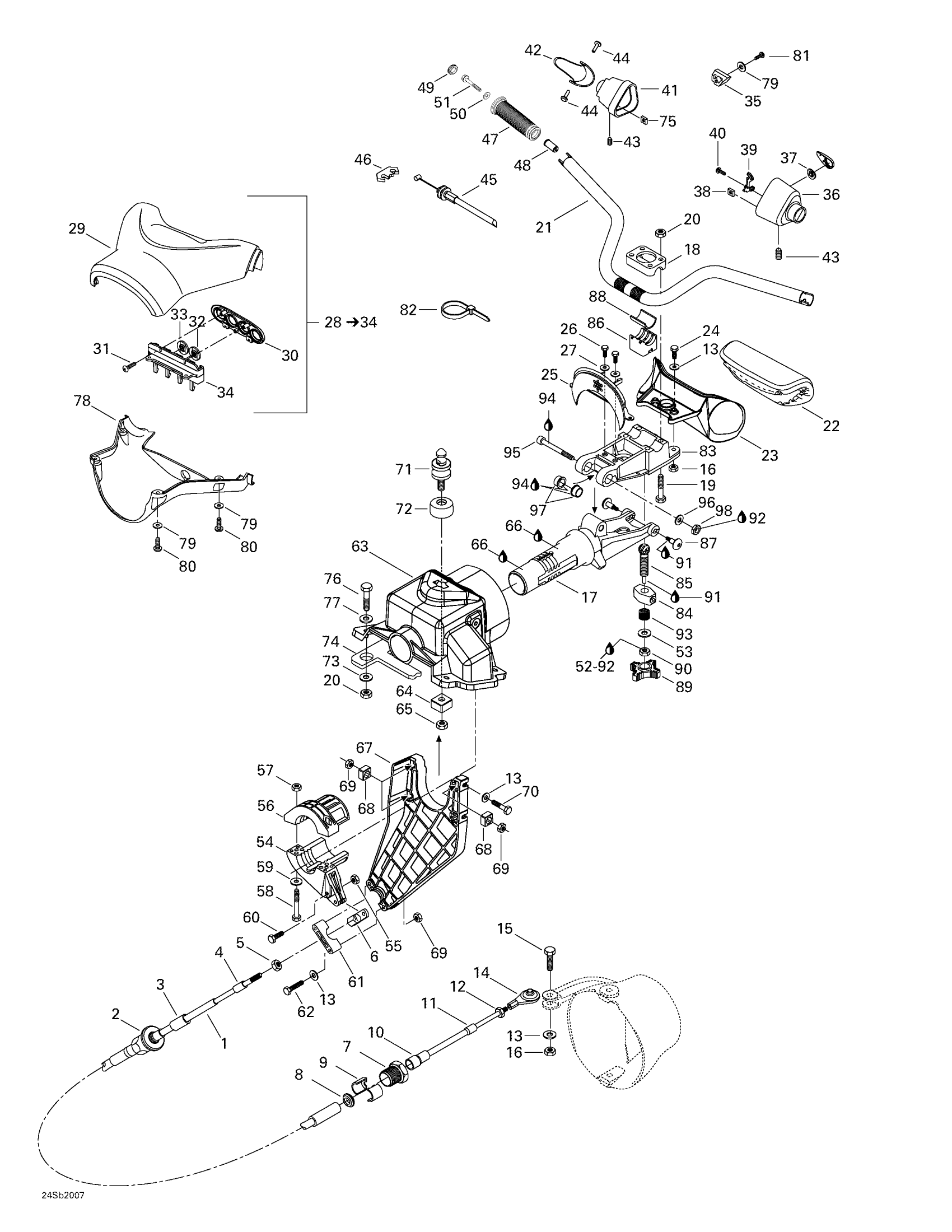

Sea-doo GTX RFI, 5648/5658/5515/5516, 2000 Steering System Diagram

#

Description
Price

1

Cable-Steering | Includes 1 - 4. This part replaces 277001009.

277001323

$170.92

2

Ajustment Knob

277000782

$16.22

3

End Piece

277001583

$11.14

4

Wiper Rod

277001582

$8.83

5

Hex. Nut 1/4"-28

211100056

$0.56

6

Ball Joint

277001180

$27.92

7

Steering Cable Lock This part replaces 277000784.

277001729

$10.41

8

Rubber Washer

293830063

$1.51

9

Half Ring

277001527

$8.35

10

End Piece

277001583

$11.14

11

Wiper Rod

277001582

$8.83

12

Hex. Nut 1/4"-28

211100056

$0.56

13

Stainless Flat Washer M6

234061600

$0.25

14

Ball Joint

277000775

$40.27

15

Hex. Screw M6 X 30

207063060

$1.51

16

Hex. Elastic Stop Nut M6

232561600

$0.92

17

Steering Stem

277000758400

Unavailable

18

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

19

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

20

Hex. Elastic Nut M8

232581600

$1.25

21

Handlebar

277000840

Unavailable

22

Handle Pad | Includes 22 - 23. GTX RFI 5648/5658 (GOLD).

277000864

Unavailable

Handle Pad (Cozumel Green) | GTI 5522/5523.

277000875

Unavailable

23

Handle Bar Pad Support

277000687

Unavailable

24

Hex. Screw M6 X 30

207063060

$1.51

25

Plate, Black

277000766

Unavailable

26

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

27

Flat Washer M6, Stainless

234062600

$0.64

28

Upper Steering Cover Ass’Y | LE, Includes 32 to 37

277000753

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

RETAINER PLATE - Call your local BRP dealership | LE

277000688

Unavailable

31

Screw K40 X 10

241140060

$1.25

32

Mode Knob | LE

293000079

Unavailable

33

«Set» Knob | LE

293000080

Unavailable

34

Switch Support | LE

277000563

Unavailable

35

INSERT - Call your local BRP dealership

293450153

Unavailable

36

LH HANDLE HOUSING ASS'Y - Call your local BRP dealership | Includes 14 to 16

277000869

Unavailable

37

Switch Knob

277000306

Unavailable

38

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

39

Retainer Plate

277000845

Unavailable

40

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

41

THROTTLE HOUSING ASS'Y - Call your local BRP dealership

277000872

Unavailable

42

Throttle Handle

277000214

Unavailable

43

Socket Head Screw M6 X 16

250000036

Unavailable

44

PIN - Call your local BRP dealership

277000381

Unavailable

45

THROTTLE CABLE - Call your local BRP dealership

277000847

Unavailable

46

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

47

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Black, Cap

277000203

$7.48

50

Flat Washer M6, Stainless

234062600

$0.64

51

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.75

52

Was 293800041 Loctite Primer 7649

219704458

$41.99

53

Flat Washer 8 mm, Stainless

234082600

$1.98

54

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

55

Hex. Elastic Stop Nut M6

232561600

$0.92

56

Arm Thrust | Includes 43 to 44

277000519

Unavailable

57

Hex. Elastic Stop Nut M6

232561600

$0.92

58

Hex. Screw M6 X 25

207162560

$1.22

59

Flat Washer M6, Stainless

234062600

$0.64

60

Hex. Screw M6 X 30

211000081

$3.68

61

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

62

Hex. Screw M6 X 50

207065060

$1.85

63

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

64

Nut Housing Ass’Y | Includes 64 to 65

271001115

Unavailable

65

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

66

Synthetic Grease, 400 G

293550010

Unavailable

67

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

68

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

69

Hex. Elastic Stop Nut M6

232561600

$0.92

70

Hex. Forming Screw M6 X 20

207162060

$1.03

71

Latch Stud

291001420

Unavailable

72

RUBBER PAD - Call your local BRP dealership

293830078

Unavailable

73

Flat Washer 8 mm, Stainless

234082600

$1.98

74

GASKET - Call your local BRP dealership

293250171

Unavailable

75

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

76

Hex. Screw M8 X 35

207083560

$1.45

77

Stainless, Flat Washer 8 mm

234081600

$0.46

78

Lower Steering Cover

277000765

Unavailable

79

Flat Washer M5, Stainless

234051600

$0.64

80

Hex. Flange Screw K40 X 16

241141660

$1.25

81

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

82

Tie Wrap 94 mm | 4X4

293750001

$0.83

83

Steering Support

277000901

Unavailable

84

BLOCK - Call your local BRP dealership

277000761

Unavailable

85

ADJUSTER SCREW - Call your local BRP dealership

211000145

Unavailable

86

STOPPER - Call your local BRP dealership

277000762

Unavailable

87

THREADED PIVOT - Call your local BRP dealership

277000763

Unavailable

88

Rubber Pad

293830071

Unavailable

89

ADJUSTER HANDLE - Call your local BRP dealership

277000764

Unavailable

90

Hex. Jam Nut M8

232180600

$0.56

91

Loctite 243, 10 ml

293800060

$20.77

92

Loctite 271, 10 ml

293800005

$20.77

93

Stopper Bushing

277000786

Unavailable

94

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

95

SOCKET HEAD SCREW M10 X 73 SCOTCH GRIP - Call your local BRP dealership

250000004

Unavailable

96

Flat Washer 10 mm, Stainless

234001600

$0.91

97

SUPPORT BUSHING - Call your local BRP dealership

277000844

Unavailable

98

Hex. Jam Nut M10

232100600

$1.85
