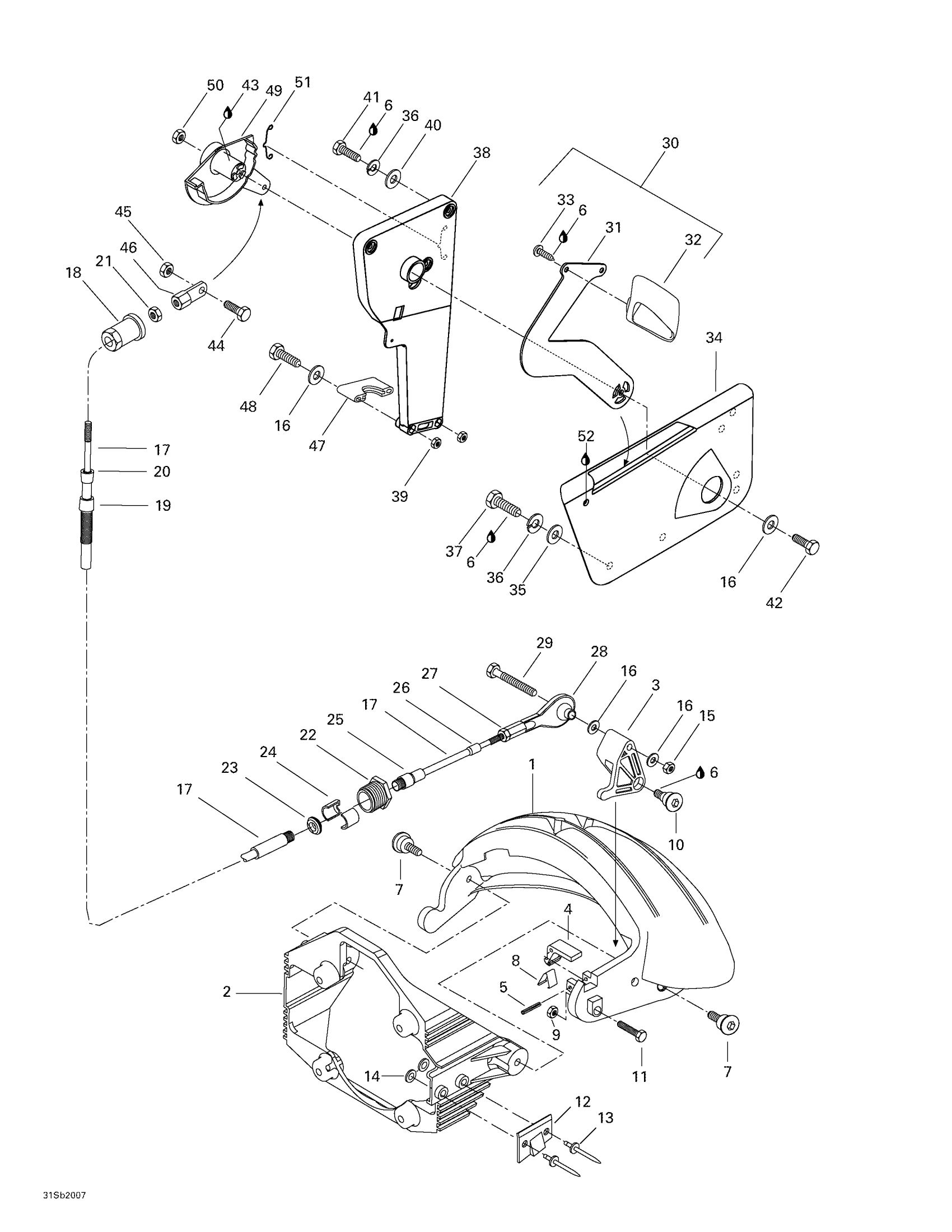

Sea-doo GTX RFI, 5648/5658/5515/5516, 2000 05- Reverse Diagram
#
1
REVERSE GATE - Call your local BRP dealership
271000947
Unavailable
2
GATE SUPPORT - Call your local BRP dealership
271000846
Unavailable
3
CABLE LEVER - Call your local BRP dealership
271000583
Unavailable
4
HOOK LEVER - Call your local BRP dealership
271000430
Unavailable
5
Pin
211400009
$1.68
6
Loctite 243, 10 ml
293800060
$21.49
7
Screw
211000007
Unavailable
8
Spring
271000431
$15.49
9
Hex. Elastic Stop Nut M6
232561600
$1.15
10
SCREW-SHOULDER M8 - Call your local BRP dealership
211000077
Unavailable
11
Hex. Screw M6 X 25
207162560
$1.47
12
STOP PAWL - Call your local BRP dealership
271000485
Unavailable
13
Pop Rivet 3/16"
293150043
$2.09
14
Flat Washer | XT
211200035
$0.55
15
Hex. Elastic Stop Nut M6
232561600
$1.15
16
Stainless Flat Washer M6
234061600
$0.33
17
Reverse Cable Ass'y | Includes 17 - 21.
277000725
Unavailable
18
KNOB ADJUSTER - Call your local BRP dealership
277000167
Unavailable
19
Boot, Large
277000473
Unavailable
20
Boot, Small
277000466
Unavailable
21
Hex. Nut
212100005
$1.35
22
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
23
RUBBER WASHER - Call your local BRP dealership
211100009
Unavailable
24
Half Ring
277000055
$9.49
25
Boot, Large
277000473
Unavailable
26
Boot, Small
277000466
Unavailable
27
Hex. Nut
212100005
$1.35
28
BALL JOINT - Call your local BRP dealership
277000153
Unavailable
29
HEX. SCREW M6 X 60 - Call your local BRP dealership
207066060
Unavailable
30
Handle Reverse Ass'y | Includes 29 - 32.
271000586
Unavailable
31
Lever
271000613
Unavailable
32
Reverse Handle
271000614
Unavailable
33
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership
208451260
Unavailable
34
Housing Reverse Handle
271001055
Unavailable
35
FLAT WASHER - Call your local BRP dealership
211200033
Unavailable
36
Helical Lock Washer M5
234151601
$1.15
37
HEX. SCREW M6 X 12 - Call your local BRP dealership
207151260
Unavailable
38
Reverse Cable Support | Includes 38 - 39.
271000584
Unavailable
39
Hex. Elastic Stop Nut M6
232561600
$1.15
40
Flat Washer 5 mm, Stainless
234052600
$0.77
41
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
42
Hex. Screw M6 X 16
207161660
$1.59
43
Synthetic Grease, 400 G
293550010
Unavailable
44
HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership
211000022
Unavailable
45
Hex. Elastic Stop Nut M6
232561600
$1.15
46
Joint
277000646
Unavailable
47
SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.
277001528
Unavailable
48
Hex. Screw M6 X 50
207065060
$2.22
49
LEVER INTERIOR - Call your local BRP dealership | Includes 48 - 49.
271000585
Unavailable
50
Hex. Elastic Stop Nut M6
232561600
$1.15
51
SPRING - Call your local BRP dealership
271000612
Unavailable
52
Silicone Sealant 51388, 300 ml
296000309
$36.99
