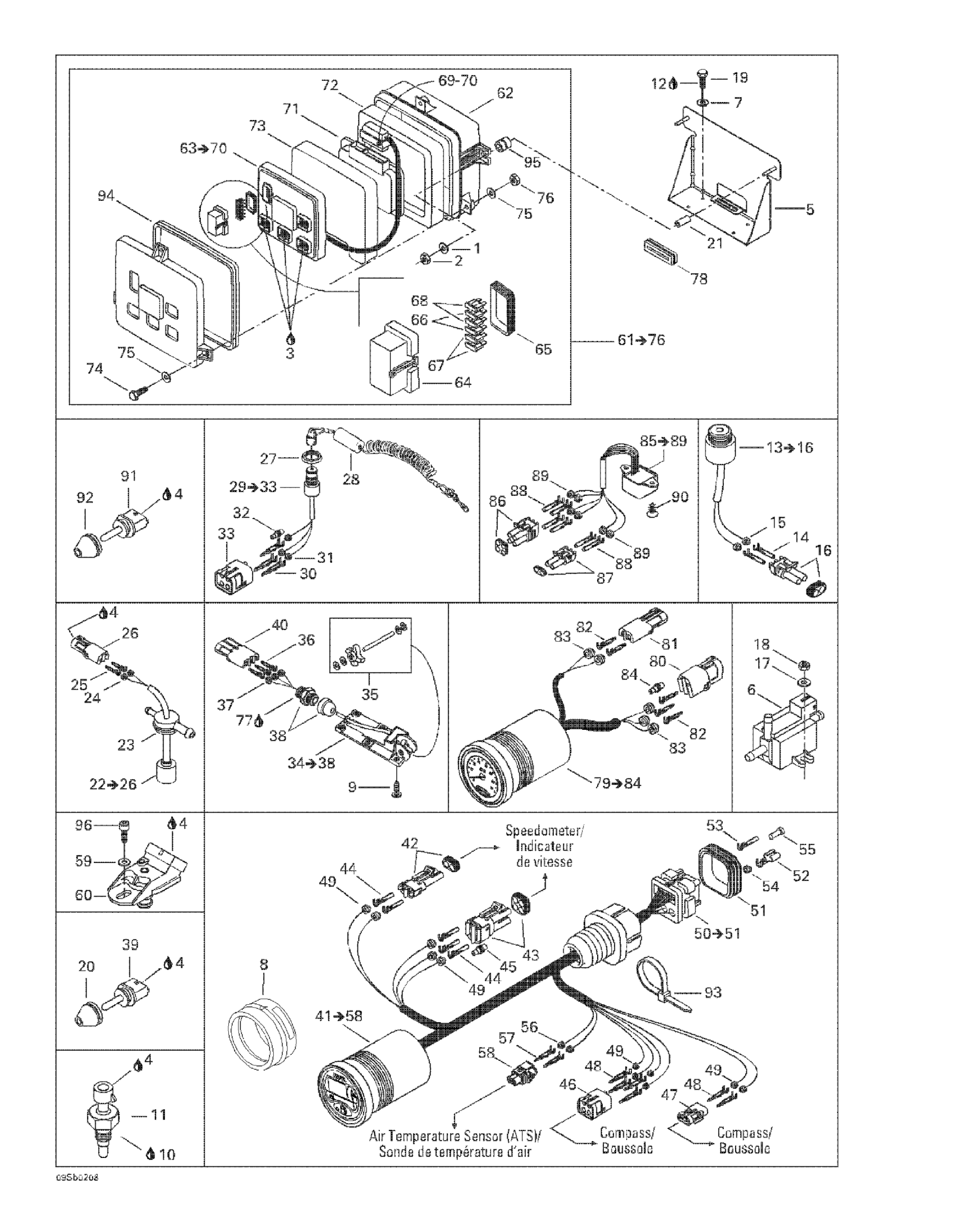

Sea-doo GTX RFI, 5566/5565, 2002 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

Flat Washer M6, Stainless

234062600

$1.49

2

Hex. Elastic Stop Nut M6

232561600

$1.49

3

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

4

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

5

Box Support Ass'y

278001139

Unavailable

6

Solenoid Valve

270600005

$119.99

7

Helical Lock Washer M5

234151601

$1.49

8

Gauge Support

293720047

Unavailable

9

Phillips Screw M5 x 12

250000319

$1.49

10

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

11

Temperature Sensor

278002895

$41.99

12

Loctite 271, 10 ml

293800005

$26.99

13

BUZZER ASS?Y - Call your local BRP dealership | INCLUDES 1 TO 3

278000881

Unavailable

14

Female Terminal

278000223

$3.29

15

Wire Seal

278000218

$4.49

16

Male Connector, 2 Circuits

278000220

$15.99

17

Flat Washer M5, Stainless

234051600

$1.49

18

Hex. Elastic Nut M5 | X

232551600

$1.49

19

Hex. Screw 10-14 X 7/8”

211000023

$3.69

20

INSULATOR - Call your local BRP dealership

278001054

Unavailable

21

SPACER - Call your local BRP dealership

272000074

Unavailable

22

OIL LEVER SENSOR ASS'Y - Call your local BRP dealership

278001401

Unavailable

23

Grommet

293720008

$14.75

24

Wire Seal

278000218

$4.49

25

Male Terminal | XT Models

278000222

$3.29

26

Female Housing, 2 Circuits

278000217

$9.79

27

Safety Nut (DESS Switch)

278002963

$3.39

28

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

29

Safety Switch | Includes 15 - 19.

278000977

Unavailable

30

Male Terminal | XT Models

278000222

$3.29

31

Wire Seal

278000218

$4.49

32

Wire Seal

278000216

$3.29

33

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

34

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

35

Paddle Wheel Kit

295500108

Unavailable

36

Male Terminal | XT Models

278000222

$3.29

37

Wire Seal

278000218

$4.49

38

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

39

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

40

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.99

41

LCD Info Gauge | Includes 41 - 58.

278001624

Unavailable

42

Male Connector, 2 Circuits

278000220

$15.99

43

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

44

Female Terminal

278000223

$3.29

45

Wire Seal

278000216

$3.29

46

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

47

Female Housing, 2 Circuits

278000217

$9.79

48

Male Terminal | XT Models

278000222

$3.29

49

Wire Seal

278001065

$7.89

50

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

51

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

52

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

53

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

54

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

55

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

56

Wire Seal

278000999

$3.29

57

Female Terminal

278000998

$4.49

58

Male Housing, 2 Circuits

278001005

$19.49

59

Stainless Flat Washer M6

234061600

$1.49

60

Pressure Sensor

270600040

$204.99

61

Not Available As Spare Part - Friction Washer

Unavailable

62

Electronic Box Base

278000938

Unavailable

63

Electronic Module | Includes 63 - 70.

278001774

Unavailable

64

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

65

Cover Seal

278001070

Unavailable

66

Fuse, 5 Amperes | CE

278000344

$3.39

67

Fuse, 10 Amperes | North America

278001197

$2.29

68

Fuse, 15 Amperes

278000343

$3.39

69

Female Terminal

278000998

$4.49

70

Wire Seal

278000999

$3.29

71

Electronic Module

278001530

Unavailable

72

Lower Foam

278000941

Unavailable

73

Top Foam

278001100

Unavailable

74

Hex. Screw M6 X 30

207063060

$1.89

75

Flat Washer M6, Stainless

234062600

$1.49

76

Hex. Elastic Stop Nut M6

232561600

$1.49

77

Was 293800013 Loctite 56765

219704454

$65.99

78

Insulator

278001259

Unavailable

79

Speedometer Ass'y | Includes 79 - 84.

278001435

Unavailable

80

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

81

Female Housing, 2 Circuits

278000217

$9.79

82

Male Terminal | XT Models

278000222

$3.29

83

Wire Seal

278001065

$7.89

84

Wire Seal

278000216

$3.29

85

Compass | GTI RFI LE, Includes 38 to 42

278001243

Unavailable

86

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

87

Male Connector, 2 Circuits

278000220

$15.99

88

Female Terminal

278000223

$3.29

89

Wire Seal

278000218

$4.49

90

Black, Dart

293730016

$9.69

91

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

92

INSULATOR - Call your local BRP dealership

278001054

Unavailable

93

Tie-Rap 180 mm

414115200

$1.49

94

Gasket

293250063

Unavailable

95

UPPER INSULATOR - Call your local BRP dealership

278001260

Unavailable

96

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.59
