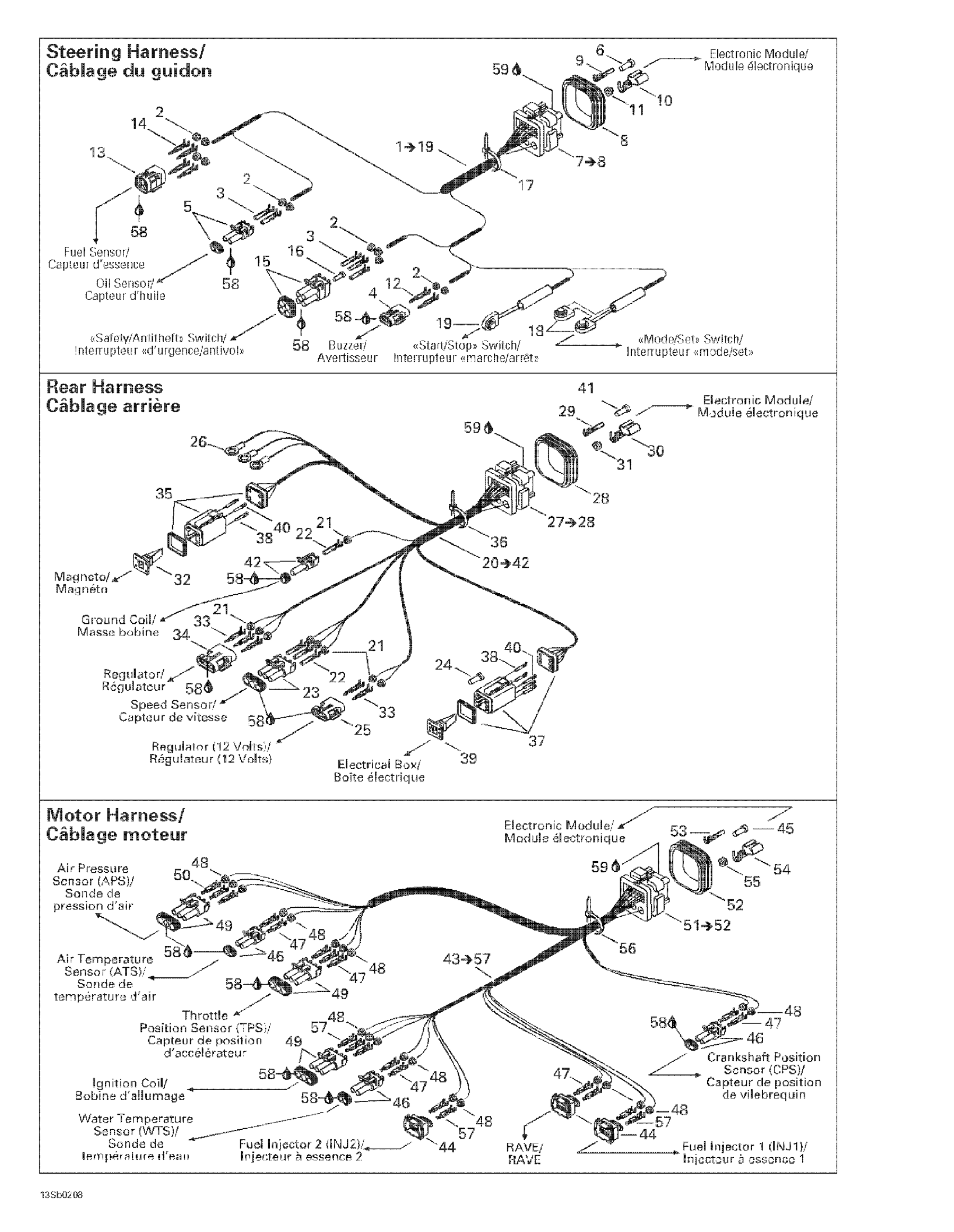

Sea-doo GTX RFI, 5566/5565, 2002 Electrical Harness Diagram

#

Description
Price

1

Steering Harness | Includes 1 - 19.

278001498

Unavailable

2

Wire Seal

278000218

$3.48

3

Female Terminal

278000223

$2.55

4

Female Housing, 2 Circuits

278000217

$7.59

5

Male Connector, 2 Circuits

278000220

$11.02

6

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

7

Male Terminal Housing, 26 Circuits

278001062

Unavailable

8

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

9

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

10

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

11

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

12

Male Terminal | XT Models

278000222

$2.55

13

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

14

Female Terminal

278001114

$2.55

15

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

16

Wire Seal

278000216

$2.55

17

Tie Wrap 142 mm

293750002

$0.88

18

<> Switch

278001375

Unavailable

19

<> Switch

278001405

Unavailable

20

Rear Harness | Includes 20 - 42.

278000951

Unavailable

21

Wire Seal

278000218

$3.48

22

Female Terminal

278000223

$2.55

23

Male Housing, 3 Circuits

278000273

$7.59

24

Sealing Cap

293000052

$2.55

25

Female Housing, 2 Circuits

278000217

$7.59

26

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

27

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

28

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

29

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

30

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

31

Seal

278001223

Unavailable

32

Male Lock, 4 Circuits | CE

278000738

$2.82

33

Male Terminal

409004300

$5.30

34

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

35

Male Connector, 4 Circuits | CE

278000739

$14.92

36

Tie Wrap 142 mm

293750002

$0.88

37

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

38

Female Terminal

278000632

$1.69

39

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

40

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

41

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

42

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

43

Engine Harness | Includes 43 - 57.

278000950

Unavailable

44

Male Connector, 2 Circuits

278001003

$43.25

45

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

46

Male Housing, 2 Circuits

278001005

$15.57

47

Female Terminal

278000998

$3.48

48

Wire Seal

278000999

$2.55

49

Male Housing, 3 Circuits

278000997

$15.57

50

FEMALE TERMINAL - Call your local BRP dealership

278001210

Unavailable

51

MALE CONNECTOR, 26 CIRCUITS - Call your local BRP dealership

278001211

Unavailable

52

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

53

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

54

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

55

Seal

278001223

Unavailable

56

Tie Wrap 142 mm

293750002

$0.88

57

Female Terminal

278001310

Unavailable

58

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

59

*(Ormd) *Deoxit Aerosol *

293550034

$38.99
